Description of Each Block
-14-

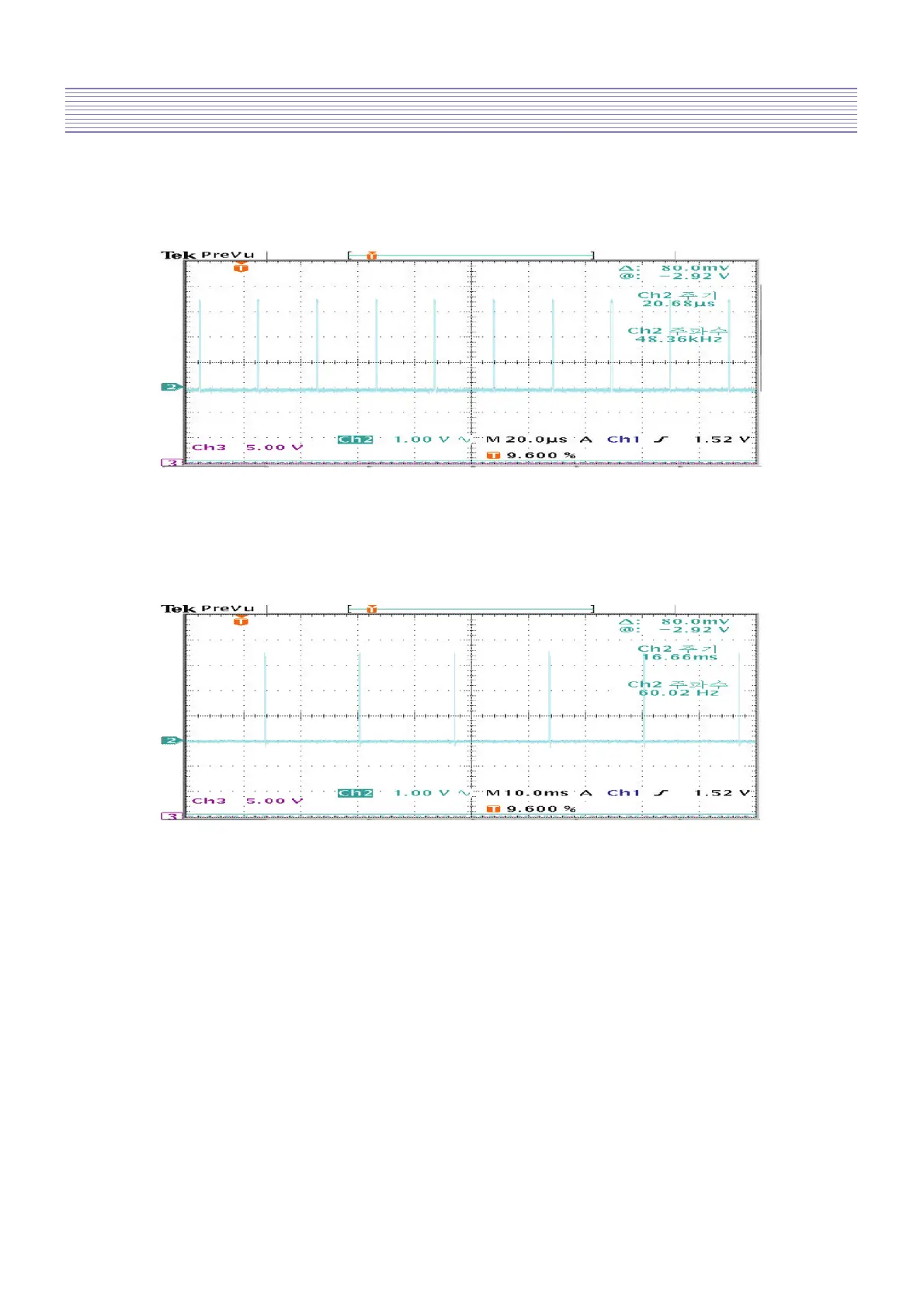

Horizontal sync(Output of IC505)
Location : RC458
Vertical sync(Output of IC505)
Location : RC459
