Description of Each Block
-16-

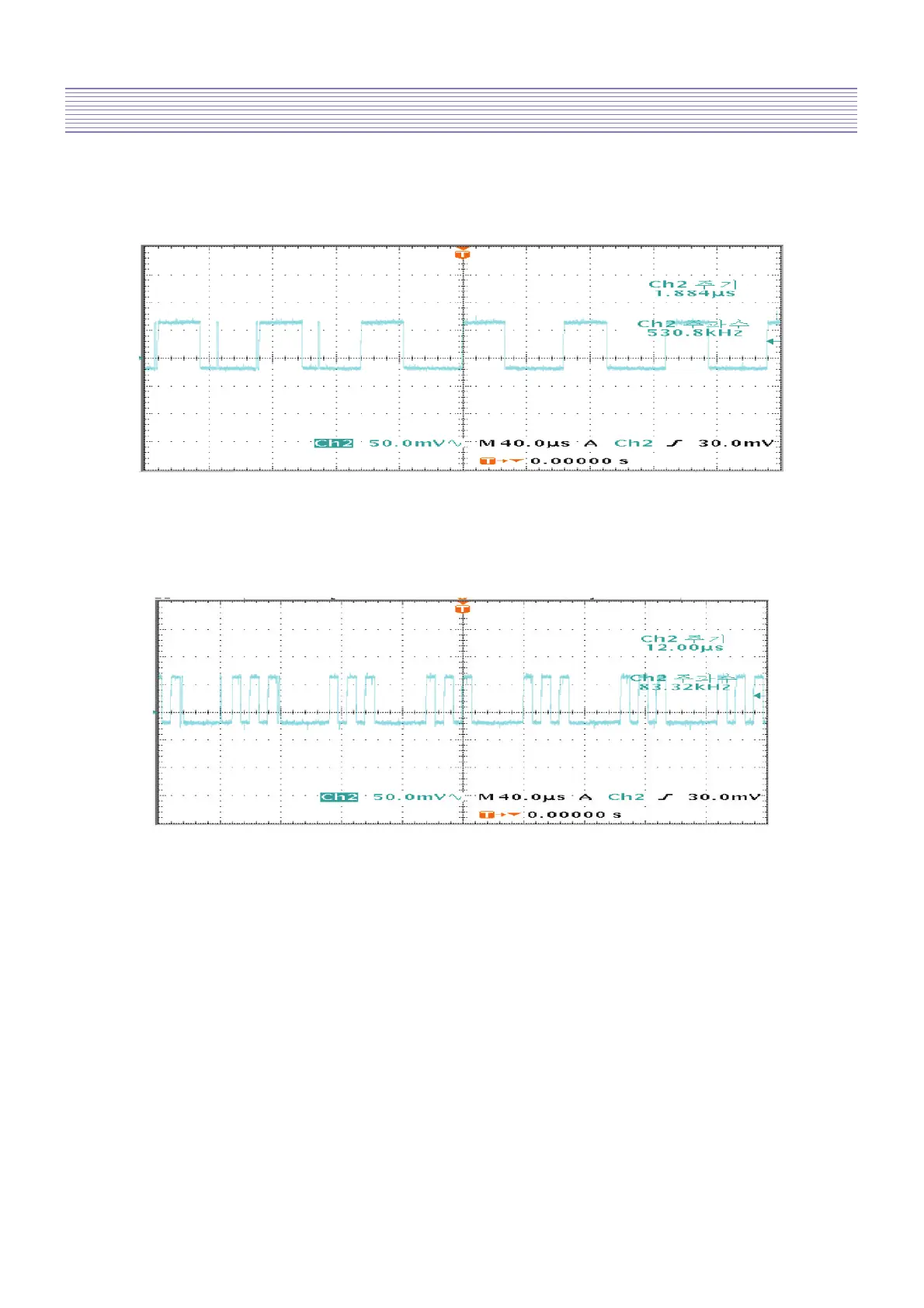

G signal(input to IC505)
Location : RC448
B signal(input to IC505)
Location : RC449
