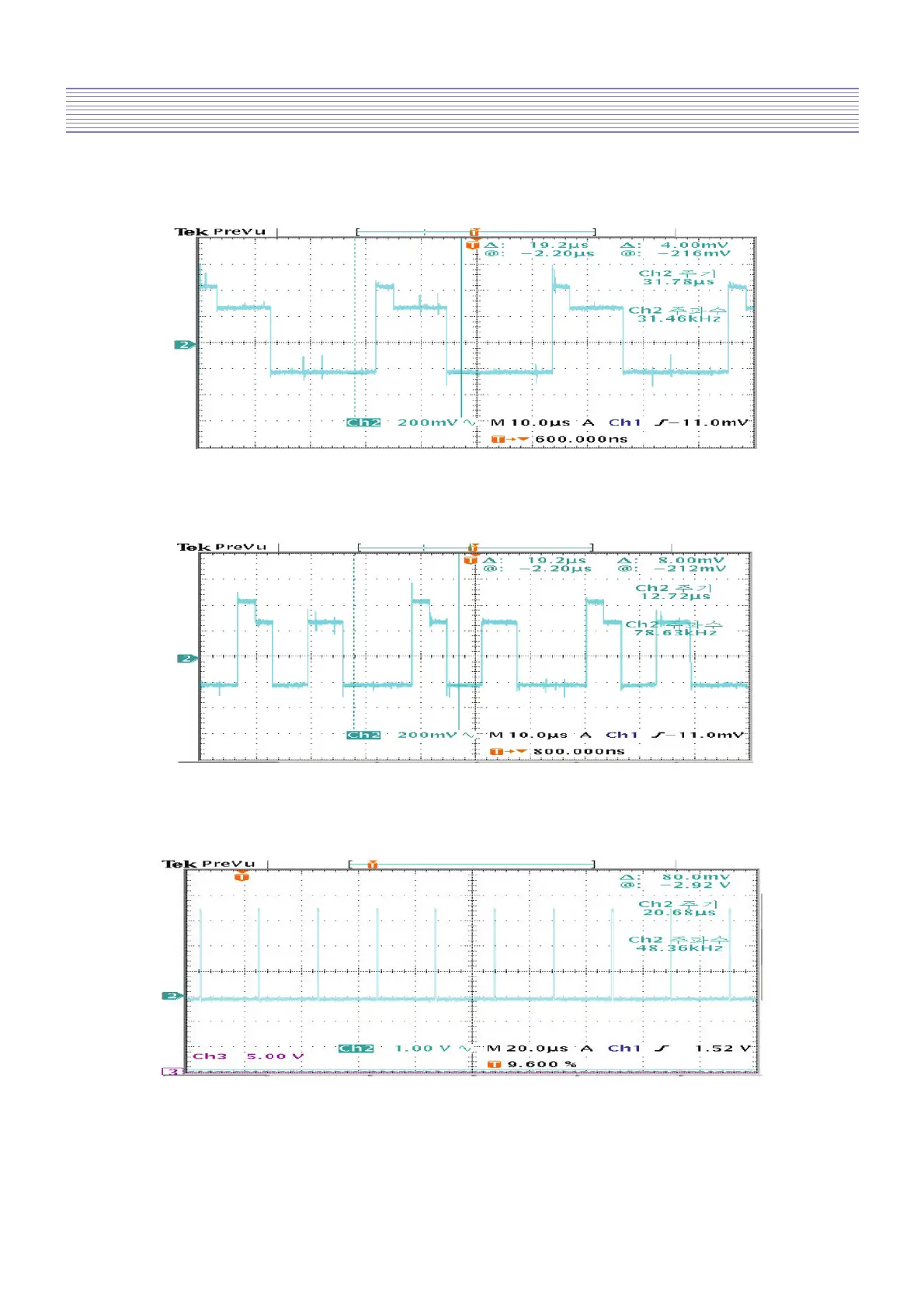

Main PCBs Trouble Diagnosis
-35-
- Main TP(G signal) : CC452, LC218
- Main TP(B signal) : LC219, CC453
- Main TP(H-sync) : RC458
