Daewoo DLX-26C2 - Page 38

Main PCBs Trouble Diagnosis
-38-
1) First check if images are displaying
-> If images are not displaying, replace MAIN PCB

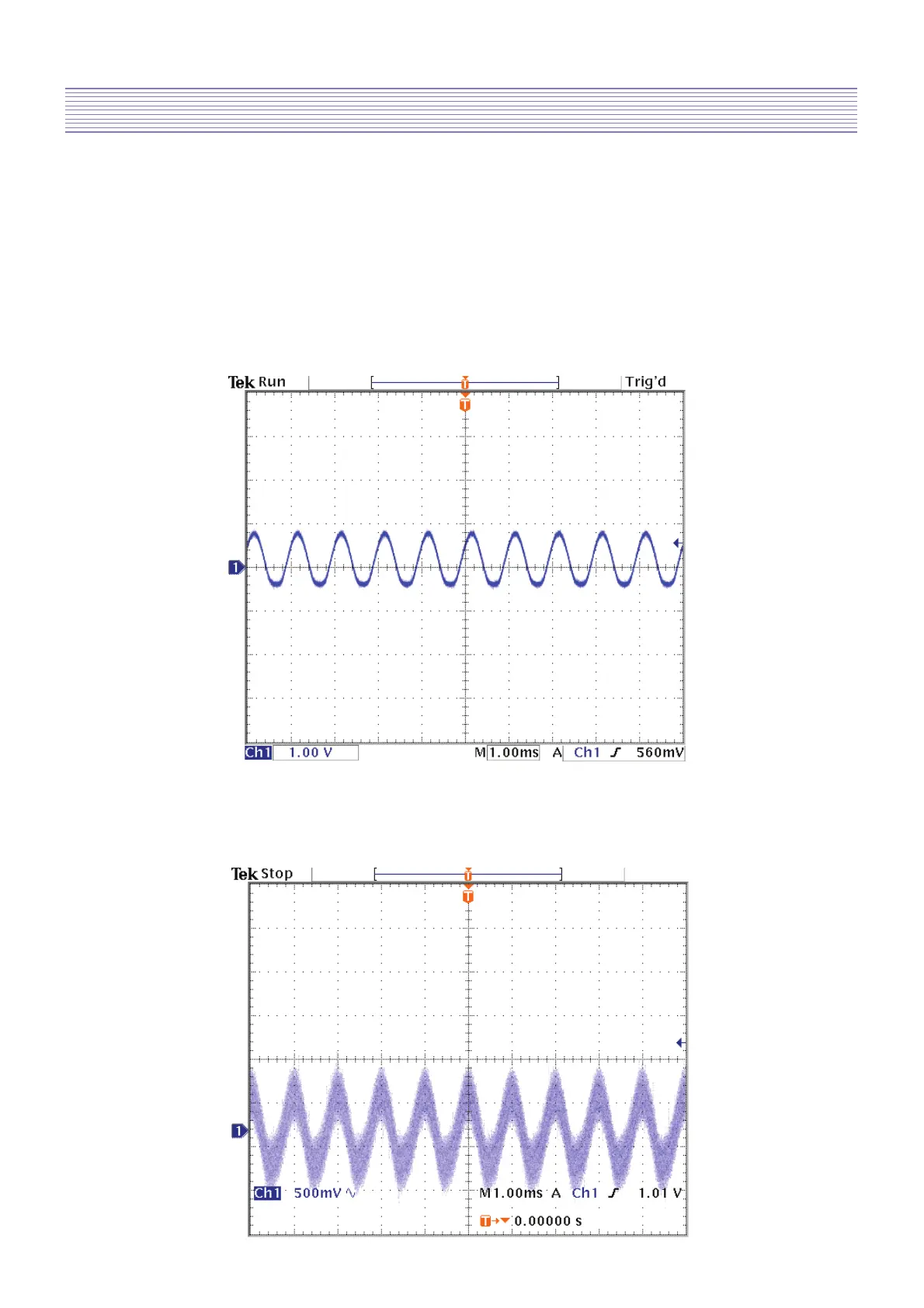

2) Checking waveforms with 1KHz Sound pattern
B. Main TP
- Input to IC601 : CC614, CC615(Scart 1) , CC612, CC613(Scart2), CC611,
CC610(AV), CC650, CC651(COMP), CC625 ,CC626(PC L/R)
- Output of IC602 : L606, L610
