Daewoo DRV-6815 User Manual

10
) Front Panel Display
Shows the current status of the DVD Recorder +
VCR.
1 COPY
Copies from DVD to VCR (or from VCR to DVD).
2 PR+/–
Scans up or down through memorized channels.
Also moves up and down in menus.
3 SELECT DVD/VCR
Toggles control between the DVD mode and the
VCR mode.
4 OPEN/CLOSE (DVD)
Opens or closes the disc tray.
5 AVF Input (VIDEO, L-AUDIO-R)
Connects to the audio/video output of an external
source (VCR, Camcorder, etc.).
6 DV Input
Connects to the DV output of an external source
(VCR, Camcorder, etc.).
7 USB Input
Connects to the USB device with Flash memory.
! STANDBY/ON
Turns the DVD Recorder + VCR on and off.
@ Cassette Compartment (VCR deck)
Insert a video cassette here.
# Disc Tray (DVD deck)
Insert a disc here.
$ VCR EJECT
Ejects the tape in the VCR deck.
% REC
Starts recording. Press repeatedly to set the
recording time.
^ STOP
Stops playback or recording.
& PLAY/PAUSE
Starts playback of a disc or tape. Pauses
playback or recording temporarily.
* REW
DVD: Skips to previous chapter.
VCR: Rewinds the tape during Stop mode. Press
during Play mode for fast reverse picture search.
( FF
DVD: Skips to next chapter.
VCR: Advances the tape during Stop mode.
Press during Play mode for fast forward picture
search.

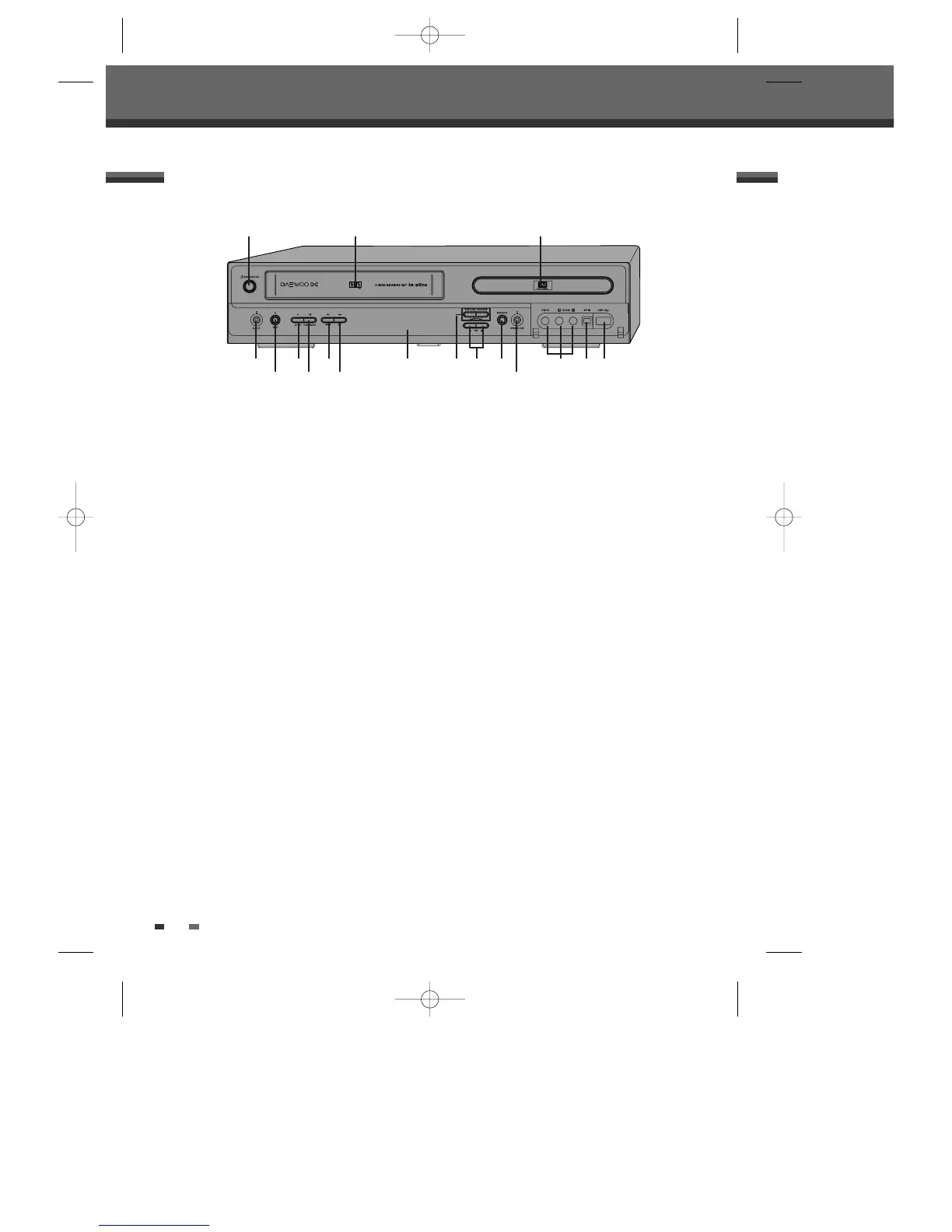

Identification of Controls
Identification of Controls
Front Panel
! @ #
52
%
$
&
^
(
*
4
3 6 7) 1
DF-H7DD3D-FB-I(GB) 2007.7.25 2:53 PM ˘ ` 10 mac001 1200DPI 100LPI

Daewoo DRV-6815 Specifications

Operating Environment

operating temperature	5°C to 35°C
operating humidity	5% to 90%

Power

power requirements	200–240V~, 50/60 Hz
power consumption (operation)	Maximum 26W
power consumption (standby)	5W

Recording

recordable time (DVD)	1 hour (HQ mode), 2 hours (SP mode), 4 hours (EP mode), 8 hours (SEP mode)
recordable time (VCR)	SP: 3 Hours (E-180), LP : 6 Hours (E-180)
video recording format compression	MPEG 2

VCR Specifications

tape speed SP	23.39 mm/sec
tape width	12.7 mm
rewind time	less than 150 sec (E-180)

DVD Specifications

laser wavelength	650 nm
frequency response (DVD)	8 Hz to 22 kHz
resolution	Over 500 lines (HQ Recording)

Inputs

antenna input	75 Ω
video input	1.0 Vp-p 75 Ω, sync negative, RCA jack x 2
audio input	-8.8 dBm more than 47 k, RCA jack (L, R) x 2

Outputs

video output (composite)	1.0 Vp-p, unbalanced
component video output (progressive scan)	(Y) 1.0 V (p-p), 75 Ω, negative sync, RCA jack x 1
audio output (digital)	0.5 V (p-p), 75 Ω, RCA jack x 1

Weight and Dimensions

dimensions	430 92 312 (w h d)
mass	4.96 kg
