! AC Power Cord
Plug into a power outlet.
@ AUDIO OUT (L, R)
Connect to a TV or other equipment with audio
inputs.
# COMPONENT VIDEO OUT (Y Pb Pr)
Connect to a TV with Component Video (Y Pb Pr)
inputs.
$ Scart socket 2
Connection of an additional device (satellite
receiver, set-top box, video recorder, camcorder,
etc.)
% RF IN (FROM ANT.)
Connect to your antenna or cable TV outlet.
^ RF OUT (TO TV)
Connect to a TV with an RF input.
& Scart socket 1
Connection of a TV set. Composite-output and
RGB-output
* COAXIAL (Digital Audio Out)
Connect to an amplifier with a coaxial digital audio
input.
( HDMI OUT
HDMI output providing a high quality interface for
digital audio and video.

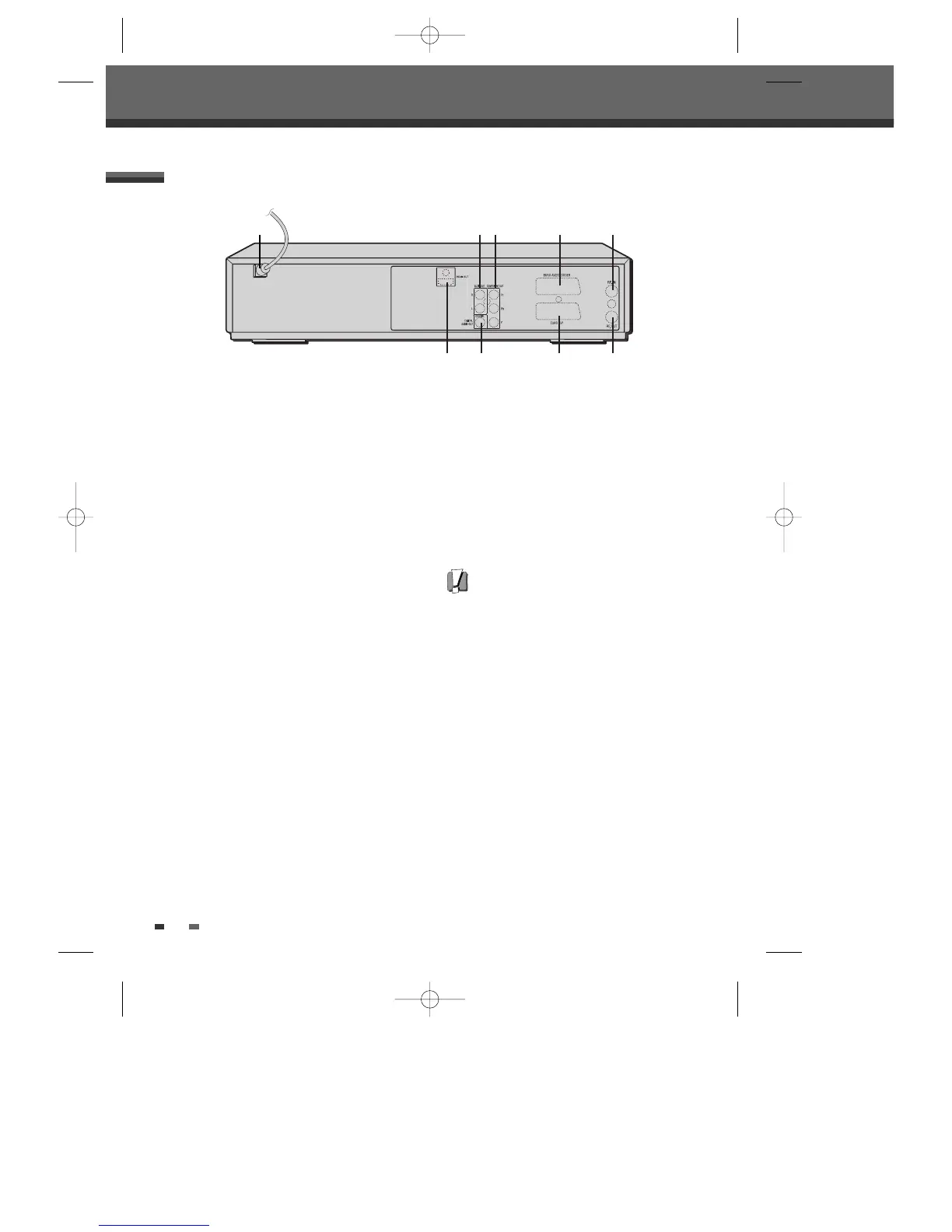

Rear panel
Caution
• Do not touch the inner pins of the jacks on the
rear panel. Electrostatic discharge may cause
permanent damage to the DVD Recorder +
VCR.
Identification of Controls
! @# $ %
*( & ^
DF-H7DD3D-FB-I(GB) 2007.7.25 2:53 PM ˘ ` 14 mac001 1200DPI 100LPI

Daewoo DRV-6815 Specifications

Operating Environment

operating temperature	5°C to 35°C
operating humidity	5% to 90%

Power

power requirements	200–240V~, 50/60 Hz
power consumption (operation)	Maximum 26W
power consumption (standby)	5W

Recording

recordable time (DVD)	1 hour (HQ mode), 2 hours (SP mode), 4 hours (EP mode), 8 hours (SEP mode)
recordable time (VCR)	SP: 3 Hours (E-180), LP : 6 Hours (E-180)
video recording format compression	MPEG 2

VCR Specifications

tape speed SP	23.39 mm/sec
tape width	12.7 mm
rewind time	less than 150 sec (E-180)

DVD Specifications

laser wavelength	650 nm
frequency response (DVD)	8 Hz to 22 kHz
resolution	Over 500 lines (HQ Recording)

Inputs

antenna input	75 Ω
video input	1.0 Vp-p 75 Ω, sync negative, RCA jack x 2
audio input	-8.8 dBm more than 47 k, RCA jack (L, R) x 2

Outputs

video output (composite)	1.0 Vp-p, unbalanced
component video output (progressive scan)	(Y) 1.0 V (p-p), 75 Ω, negative sync, RCA jack x 1
audio output (digital)	0.5 V (p-p), 75 Ω, RCA jack x 1

Weight and Dimensions

dimensions	430 92 312 (w h d)
mass	4.96 kg
