Daewoo DRV-6815 User Manual

18

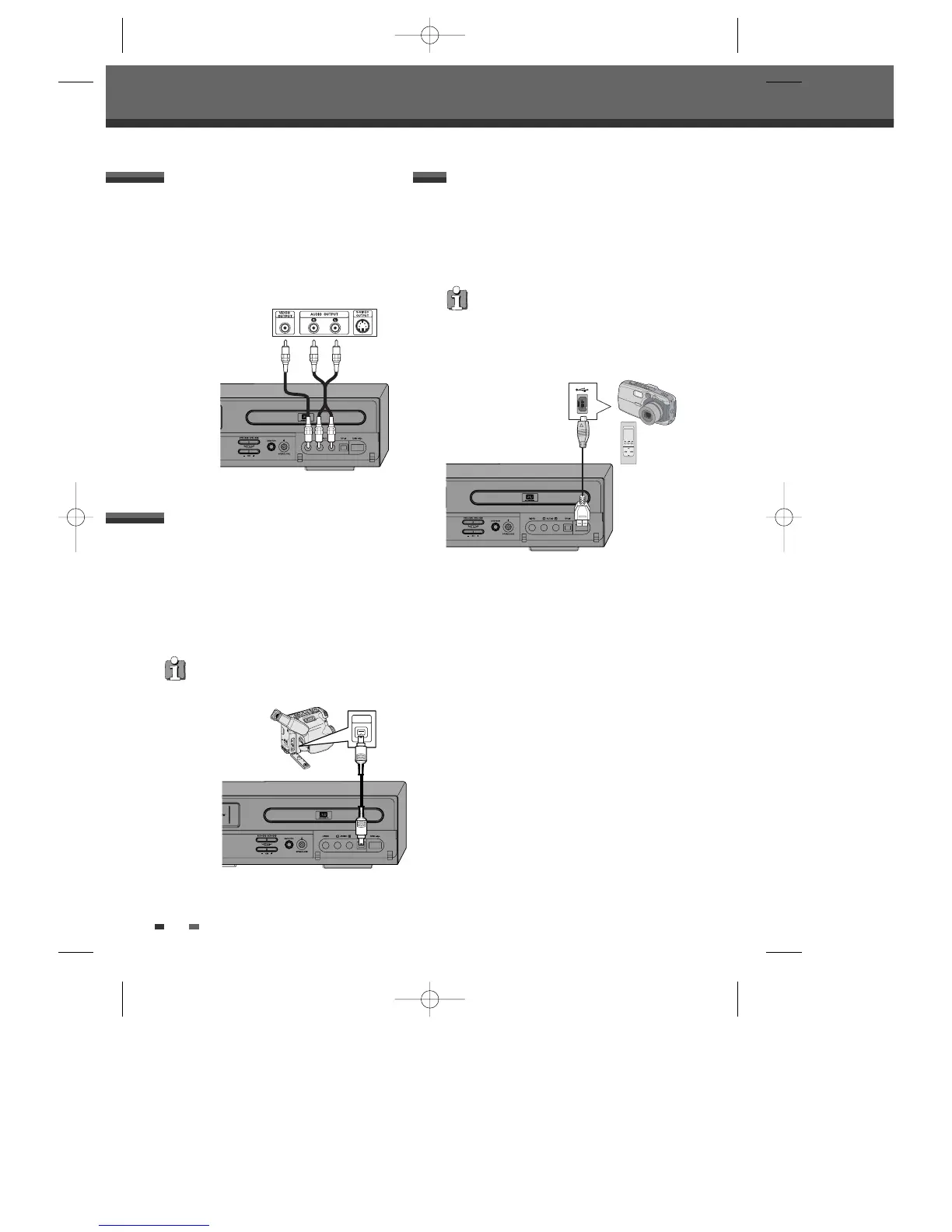

To receive audio/video signals from other equipment,
connect the AVF (Audio/Video Front) jacks on the
DVD Recorder + VCR to the audio/video out jacks on
your external component, using optional audio/video
cables.
Connecting Optional Equipment
Connections
Front of DVD Recorder + VCR
Jack Panel of Accessory Component (VCR,
Analog Camcorder, etc.)
Using the front panel DV IN jack, it is possible to
connect a DV digital camcorder, video deck or
DVD+R/RW recorder and digitally transfer DV tapes or
DVD+R/RW discs to DVD+R, DVD+RW.
Use a DV cable (not supplied) to connect the DV
In/Out jack of your DV camcorder/video deck to the
front panel DV IN jack of the DVD Recorder + VCR.
Connecting a Digital Camcorder
This jack is for connection to DV equipment only. It
is not compatible with digital satellite tuners or D-
VHS video decks.
DV IN
DV
IN/OUT
Front of DVD Recorder + VCR
DV Digital Camcorder
Connecting a Removal Storage
Using the front panel USB IN jack, it is possible to
connect a digital Camera or MP3 Player.
Use a USB cable (not supplied) to connect the USB
In/Out jack of your Digital Camera or mp3 player to the
front panel USB IN jack of the DVD Recorder + VCR.
Front of DVD Recorder + VCR
MP3 Player or Digital Camera
• Only MP3 Player (or Digital Camera) which
doesn’t need to install Driver software are
available for this DVD Recorder + VCR.
• It is impossible to copy the JPEG or mp3 file in
Digital camera or mp3 player to DVD or VCR.
DF-H7DD3D-FB-I(GB) 2007.7.25 2:53 PM ˘ ` 18 mac001 1200DPI 100LPI

Daewoo DRV-6815 Specifications

Operating Environment

operating temperature	5°C to 35°C
operating humidity	5% to 90%

Power

power requirements	200–240V~, 50/60 Hz
power consumption (operation)	Maximum 26W
power consumption (standby)	5W

Recording

recordable time (DVD)	1 hour (HQ mode), 2 hours (SP mode), 4 hours (EP mode), 8 hours (SEP mode)
recordable time (VCR)	SP: 3 Hours (E-180), LP : 6 Hours (E-180)
video recording format compression	MPEG 2

VCR Specifications

tape speed SP	23.39 mm/sec
tape width	12.7 mm
rewind time	less than 150 sec (E-180)

DVD Specifications

laser wavelength	650 nm
frequency response (DVD)	8 Hz to 22 kHz
resolution	Over 500 lines (HQ Recording)

Inputs

antenna input	75 Ω
video input	1.0 Vp-p 75 Ω, sync negative, RCA jack x 2
audio input	-8.8 dBm more than 47 k, RCA jack (L, R) x 2

Outputs

video output (composite)	1.0 Vp-p, unbalanced
component video output (progressive scan)	(Y) 1.0 V (p-p), 75 Ω, negative sync, RCA jack x 1
audio output (digital)	0.5 V (p-p), 75 Ω, RCA jack x 1

Weight and Dimensions

dimensions	430 92 312 (w h d)
mass	4.96 kg
