INTRODUCTION

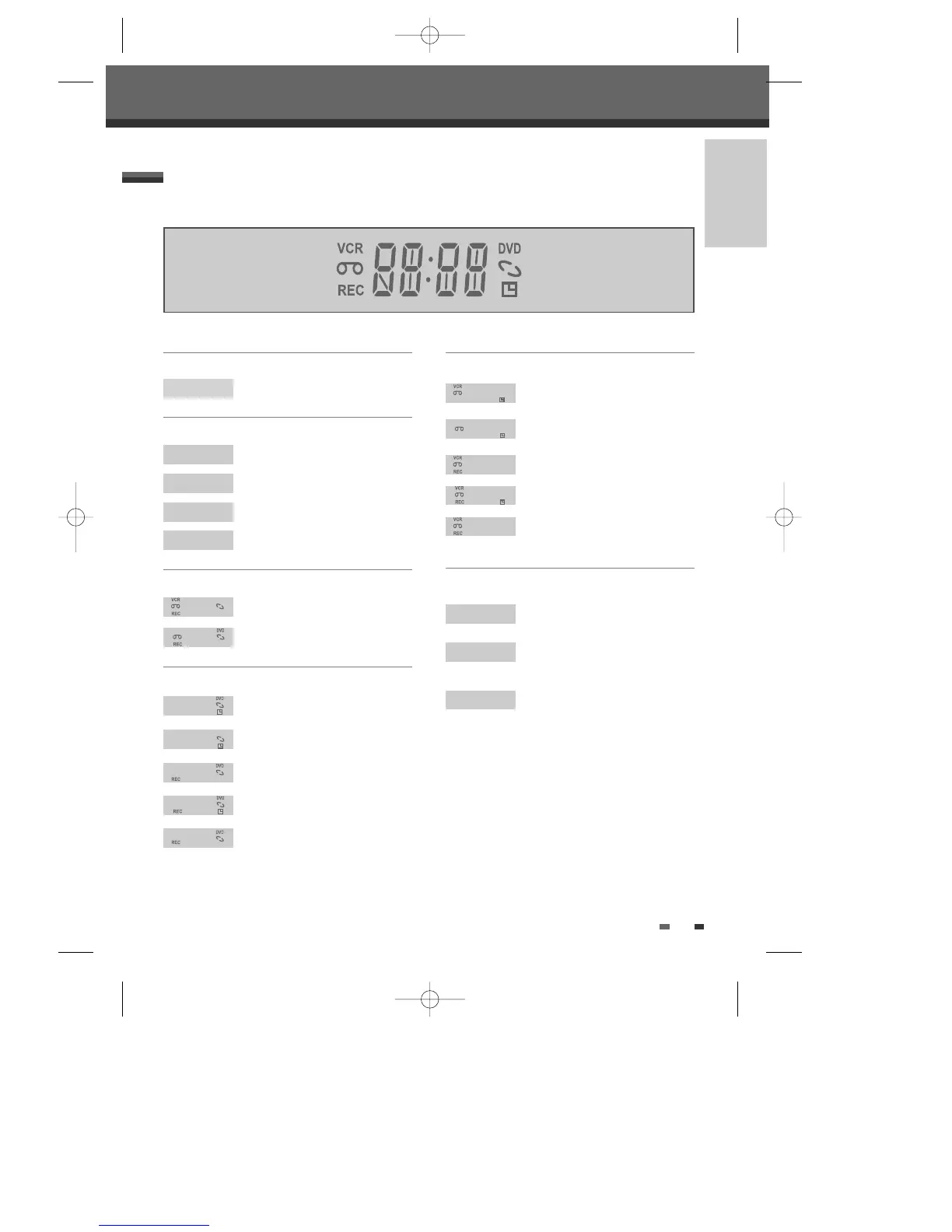

Front Panel Display
Identification of Controls
Channel
PR23
TV Channel
Input mode
Recording on disc
Recording on tape
Indicates a DVD Timer recording is
set.
Indicates a DVD Timer Recording is
in standby mode.
Indicates the DVD is recording.
Recording Pause mode
OTR Recording mode
Indicates a VCR Timer Recording is
set.
Indicates a VCR Timer Recording is
in standby mode.
Indicates the VCR is recording.
OTR Recording mode
Recording Pause mode
Indicates when the DVD Recorder+
VCR is locked.
Indicates the DVD Recorder+VCR is
in VCR mode (set by [TV/VCR]
button).
Indicates the DVD Recorder+VCR is
in TV mode (set by [TV/VCR] button).
Others
AV-1
AV1 input
AV-2
AV2 input
Copy
DVD to VCR copying
VCR to DVD copying
F-AV
Front - AV input
DV
DV input
COPY
COPY
11:15
0:30
11:15
REC
RECP
11:15
0:30
11:15
REC
RECP
SAFE
TV
VCR
DF-H7DD3D-FB-I(GB) 2007.7.25 2:53 PM ˘ ` 11 mac001 1200DPI 100LPI

Daewoo DRV-6815 Specifications

Operating Environment

operating temperature	5°C to 35°C
operating humidity	5% to 90%

Power

power requirements	200–240V~, 50/60 Hz
power consumption (operation)	Maximum 26W
power consumption (standby)	5W

Recording

recordable time (DVD)	1 hour (HQ mode), 2 hours (SP mode), 4 hours (EP mode), 8 hours (SEP mode)
recordable time (VCR)	SP: 3 Hours (E-180), LP : 6 Hours (E-180)
video recording format compression	MPEG 2

VCR Specifications

tape speed SP	23.39 mm/sec
tape width	12.7 mm
rewind time	less than 150 sec (E-180)

DVD Specifications

laser wavelength	650 nm
frequency response (DVD)	8 Hz to 22 kHz
resolution	Over 500 lines (HQ Recording)

Inputs

antenna input	75 Ω
video input	1.0 Vp-p 75 Ω, sync negative, RCA jack x 2
audio input	-8.8 dBm more than 47 k, RCA jack (L, R) x 2

Outputs

video output (composite)	1.0 Vp-p, unbalanced
component video output (progressive scan)	(Y) 1.0 V (p-p), 75 Ω, negative sync, RCA jack x 1
audio output (digital)	0.5 V (p-p), 75 Ω, RCA jack x 1

Weight and Dimensions

dimensions	430 92 312 (w h d)
mass	4.96 kg
