Identification of Controls
Identification of Controls

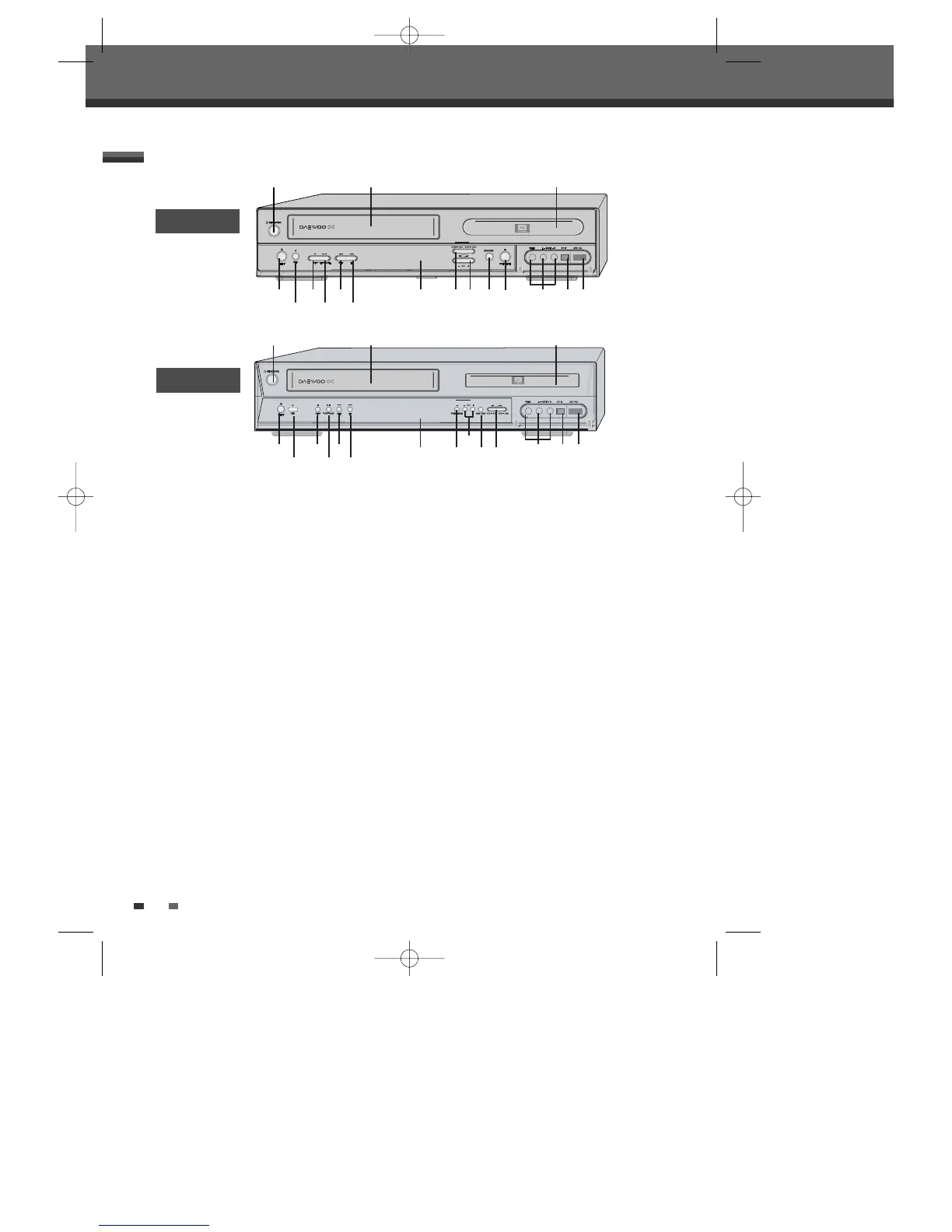

Front Panel
! @ #
5
%
$
&
^
(
*
4
3 6 7) 21
)
Front Panel Display
Shows the current status of the DVB-T VCR/DVD
Recorder.
1
COPY
Copies from DVD to VCR (or from VCR to DVD).
2
CH+/–
Scans up or down through memorized channels.
Also moves up and down in menus.
3
SELECT DVD/VCR
Toggles control between the DVD mode and the
VCR mode.
4
OPEN/CLOSE (DVD)
Opens or closes the disc tray.
5
AVF Input (VIDEO, L-AUDIO-R)
Connects to the audio/video output of an external
source (VCR, Camcorder, etc.).
6
DV Input
Connects to the DV output of an external source
(VCR, Camcorder, etc.).
7
USB Input
Connects to the USB device with Flash memory.
!
STANDBY/ON
Turns the DVB-T VCR/DVD Recorder on and off.
@
Cassette Compartment (VCR deck)
Insert a video cassette here.
#
Disc Tray (DVD deck)
Insert a disc here.
$
VCR EJECT
Ejects the tape in the VCR deck.
%
REC
Starts recording. Press repeatedly to set the
recording time.
^
STOP
Stops playback or recording.
&
PLAY/PAUSE
Starts playback of a disc or tape. Pauses
playback or recording temporarily.
*
REW
DVD: Skips to previous chapter.
VCR: Rewinds the tape during Stop mode. Press
during Play mode for fast reverse picture search.
(
FF
DVD: Skips to next chapter.
VCR: Advances the tape during Stop mode.
Press during Play mode for fast forward picture
search.
! @ #
5
%
$
&
^
(
*
1
3
6 7
)
2
4
DRVT-40
DRVT-43
