7. DIRECTIONS FOR DISASSEMBLY AND ADJUSTMENT

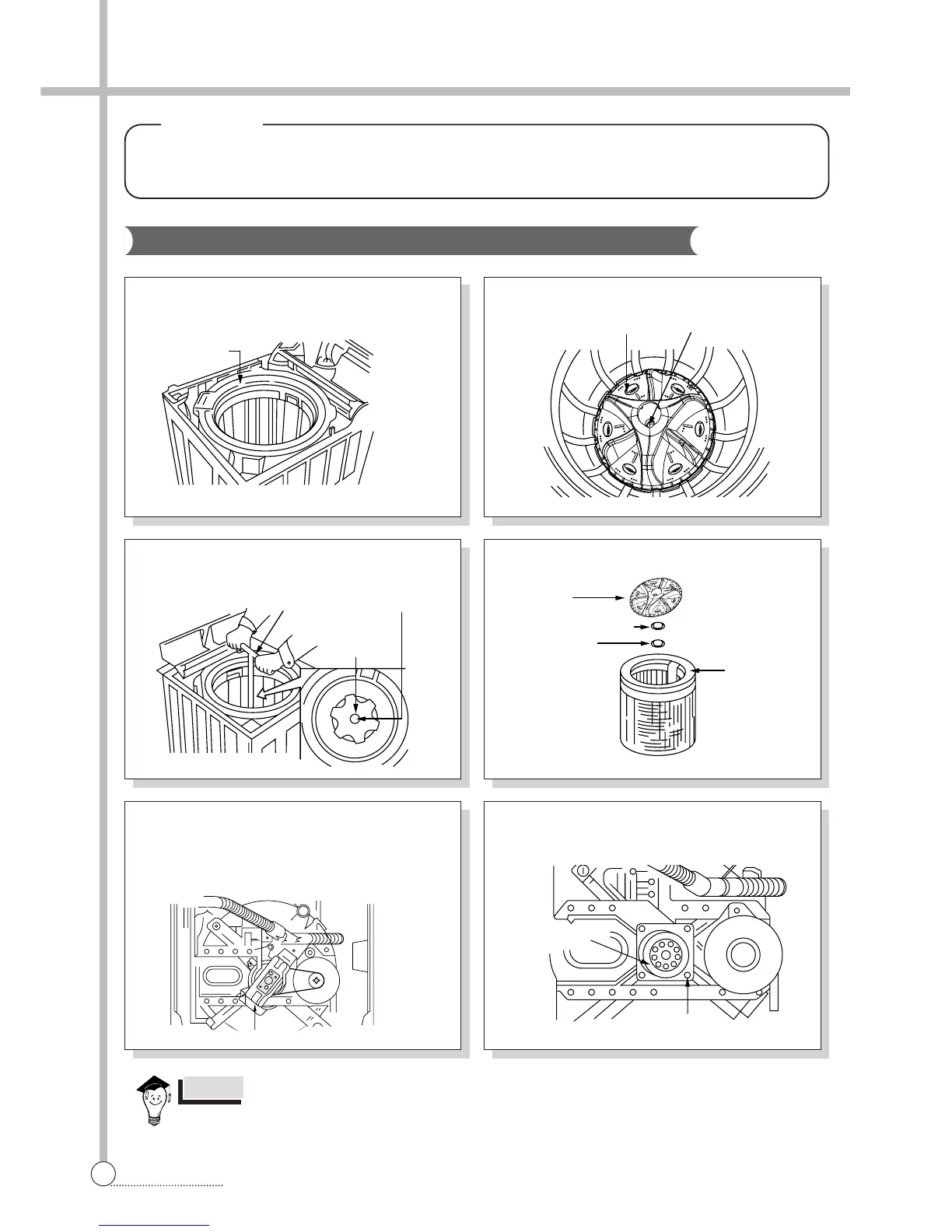

¡ Raise the top plate on the outer cabinet.
¡ Remove outer tub cover from the tub ass’y.
¡ Remove the spinner shaft flange nut by using ‘T’
type box wrench.
¡ Lay the front of the washer on the floor.
¡ Remove four bolts mounting the plate-gear protect
by using a box wrench and remove plate-gear pro-
tect.
¡ Remove the V-belt.
¡ Loosen the pulsator mounting screw and remove
the pulsator.
¡ Remove the tub ass’y.
¡ Remove four bolts mounting the gear mechanism
ass’y by using a box wrench.
¡ Pull out the gear mechanism ass’y.
O
uter tub cover
"T" type box
wrench
Nut-spin
shaft fixing
Washer
pulsator
Nut-spin shaft fixing
Washer-spin
Shaft fixing
Tub ass'y
Pulsator Mounting screw
Gear Mechanism Ass’y Replacement
BEFORE ATTEMPTING TO SERVICE OR ADJUST ANY PART OF THE WASHING MACHINE, DISCON-
NECT THE POWER CORD FROM THE ELECTRIC OUTLET.
Warning
To assemble the gear mechanism ass’y, reverse
the disassembly procedure.
NOTES
Mounting bolt
G
ear mechanism
ass'y
Mounting bolt
