EXPLANATION
FUNCTIONAL PRINCIPLE
1 The micom can remember the time from the begining of drain to reset point when the pressure switch reaches to
“OFF” point
2 In case of continuous draining, residual drain time is determined by micom.
Draining time as a whole = D + 30
Residual drain time.
The time remembered by micom.
Asymmetrically designed pulsator
makes the cyclone water flow, which get
rid of the washing dead zone to
increase the washing effect and reduce
the entanglement of laundry.
Draining
Good draining The washer begins spin process after drainage.
condition
Bad draining Draininig time is prolonged.
No draining Program is stopped and gives the alarm.
Drain Time Movement of the Program
Less than
Continue draining
10 minutes
More than
Program stops and gives the alarm with blinked on display lamp.
10 minutes

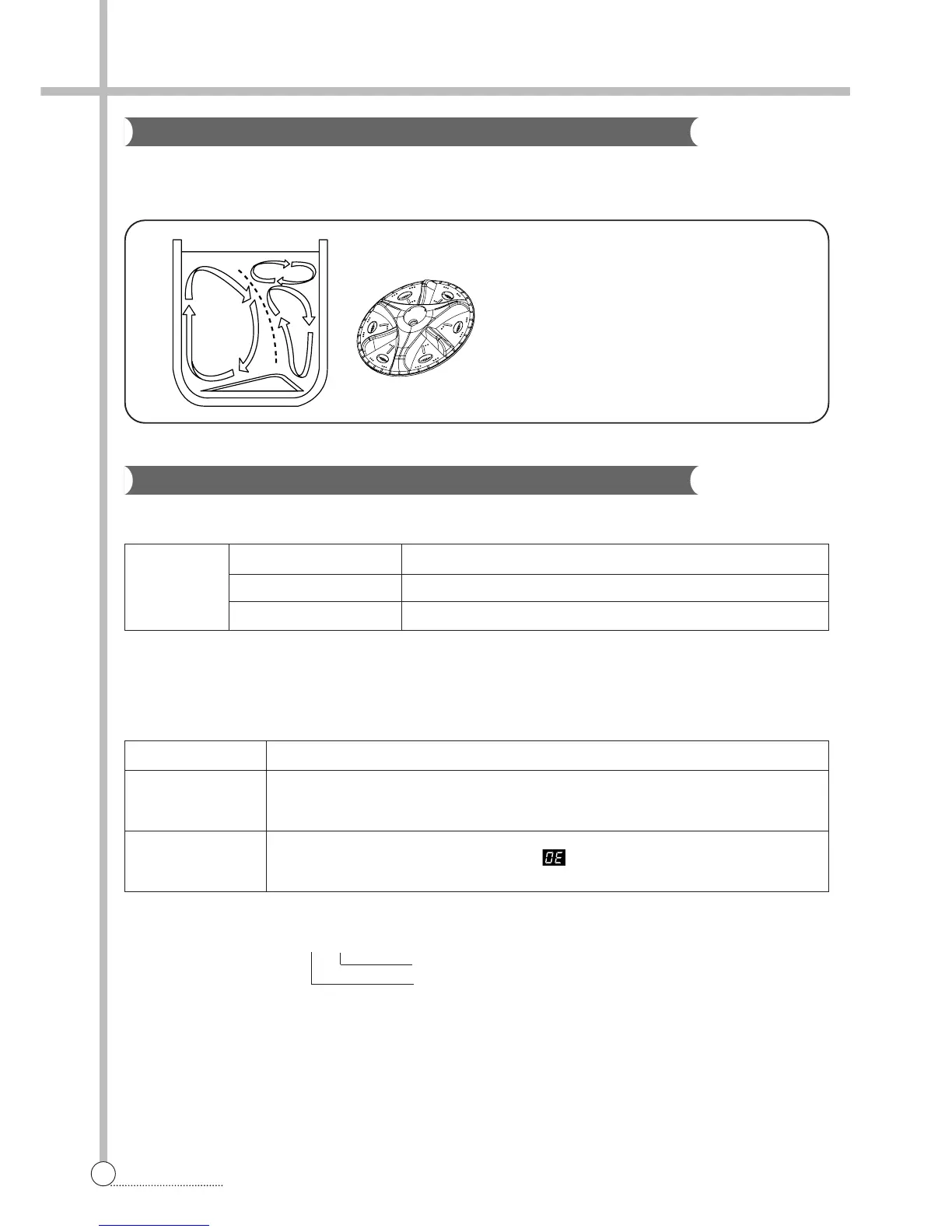

Pulsator System
When the pulsator is rotated C.W or C.C.W at a high speed, it makes the cyclone water flow from the asymmetrically
designed pulsator as shown below.
Automatic Drainning time Adjustment
This system adjusts the draining time automatically according to the draining condition.
