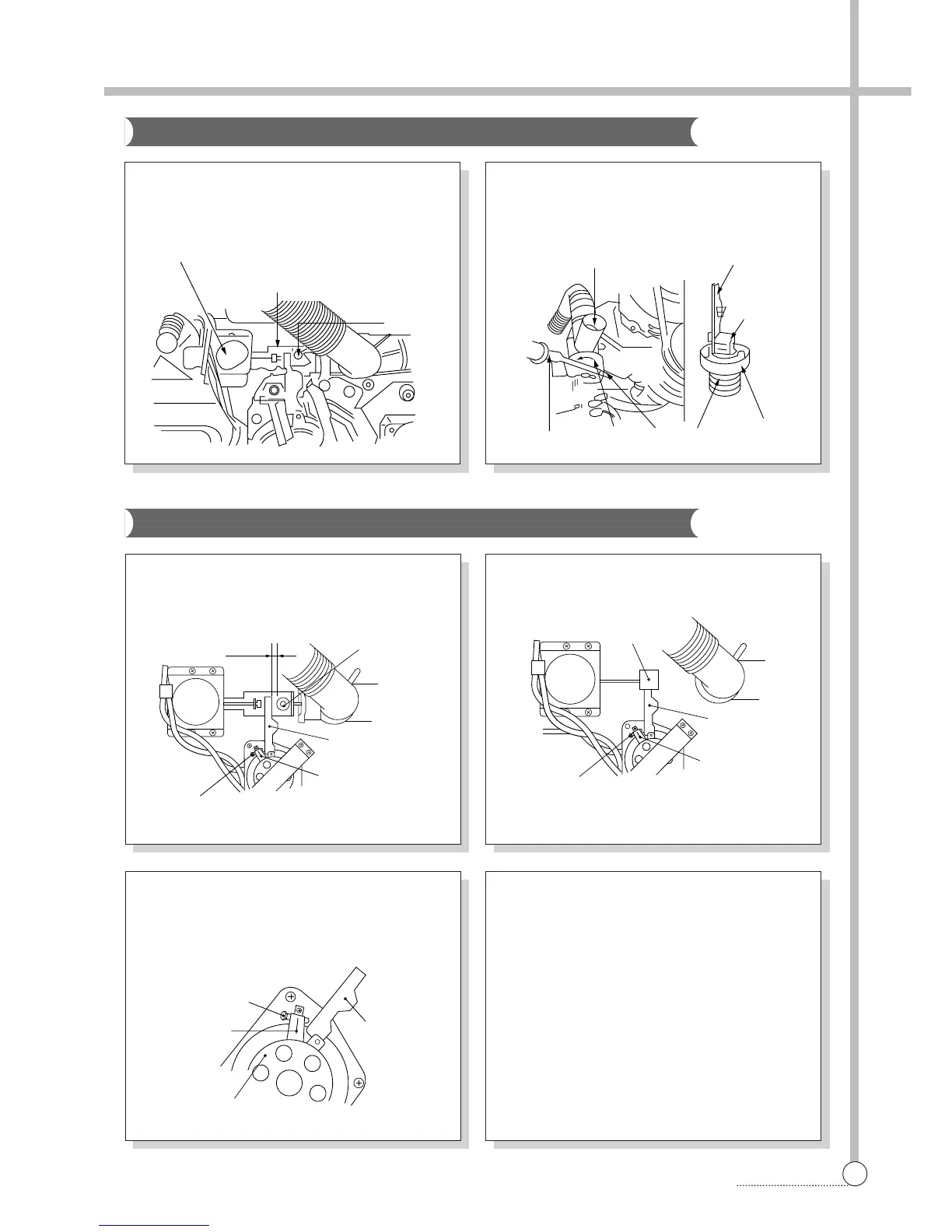

DIRECTIONS
¡ Lay the front of the washer on the floor.
¡ Loosen the adjustment screw and two bolts
mounting the drain motor.
¡ Take out the wire of drain motor from the bracket.
¡ Loosen the adjustment screw fastening the brack-
et and place the adjustment screw to the brake
lever as shown in figure.
¡ Tighten the adjustment screw completely.
(Non pump model)
¡ Separate the drain motor from the bracket.
¡ Turn the valve lid by using screw driver as shown
in figure and remove the valve lid from the valve
frame.
Bracket
Adjustment
screw
Valve frame
Screw dirver Valve lid Pin Bellows
Valve lid
Adjustment bolt
Clutch lever
Brake lever
Adjustment
screw
3.0mm
¡ Tighten the link brake screw completely.
(Pump model)
Adjustment bolt
Link brake
Clutch lever
Brake lever
¡ Loosen the adjustment bolt and turn the adjust-
ment bolt until the end of the bolt touches to the
brake lever.
¡ Tighten the lock nut and apply a small amount of
paint-lock.
Adjustment bolt
Clutch lever
Gear mechanism ass'y
Brake lever
NOTES:
1. The brake adjustment has been made at the
factory, so that it is not re-adjust.
However, in case of insufficient brake operation,
problem the upper procedure.
2. Overtightening of the adjustment bolt will cause
poor brake performance.
3. Undertightening of the adjustment bolt will
cause continuous braking and thereby.
cause the problems of the motor during the
spingcycle.
Drain Motor and Valve
Brake Adjustment
