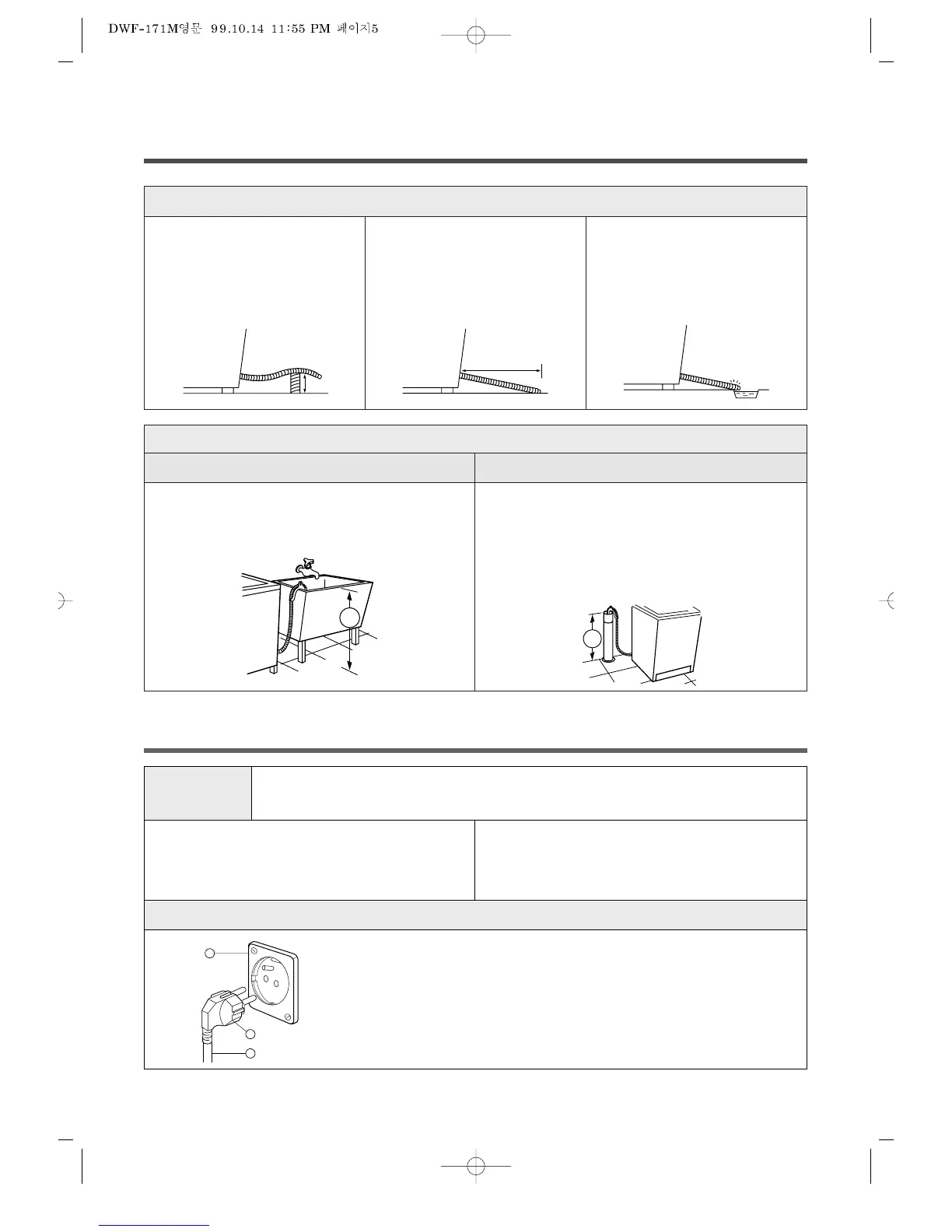

Recommended earthing method
WARNING
Laundry tub drain system Standpipe drain system
Pump Model
Non-Pump Model
5
! In case that it goes over
a door sill.
Don't let the height of
the drain hose exceed
20cm from the bottom
of washer.
@ In case of extending the
drain hose.
Don't let the total length
exceed 3m.
# Be careful that the end
of the drain hose is not
immersed in water.
• Top of tub must be at least 86cm
(34inches) high and no higher than 130cm
from bottom of washer (A)
• Needs a 3cm minimum diameter
standpipe with minimum carry away
capacity of 30liters per minute.
• Top of tub must be at least 86cm
(34inches) high and no higher than 130cm
from bottom of washer (B)
ELECTRICAL REQUIREMENTS
For your personal safety, this washer must be earthed.
This washer is equipped with a power supply cord (A) having a
earthing plug (B). To minimize possible shock hazard, the cord must
be plugged into a mating earthing-type wall receptacle (C).
If a mating wall receptacle is not available, it is the personal
responsibility and obligation of the customer to have the proper
earthed wall receptacle installed by a qualified electrician.
• Electrical earth is required on this washer
• If it does not fit the outlet, have a proper outlet
installed by a qualified electrician.
• Don't earth to a gas pipe
• Don't change the power supply cord plug.
• Check with a qualified electrician if you are not
sure the washer is properly earthed.
electrical shock hazard: failure to follow these instructions could result in
death or serious injury.
