3. To remove door parts.
(1) Remove the gasket door from the door painting assembly.
(2) Remove the barrier screen inner from the door painting assembly.
(3) Remove the frame door from the door painting assembly.
(4) Remove the spring hook and the hook from the door painting assembly.
(5) Remove the barrier screen outer from the frame door.
(6) Reverse the above steps for reassembly.

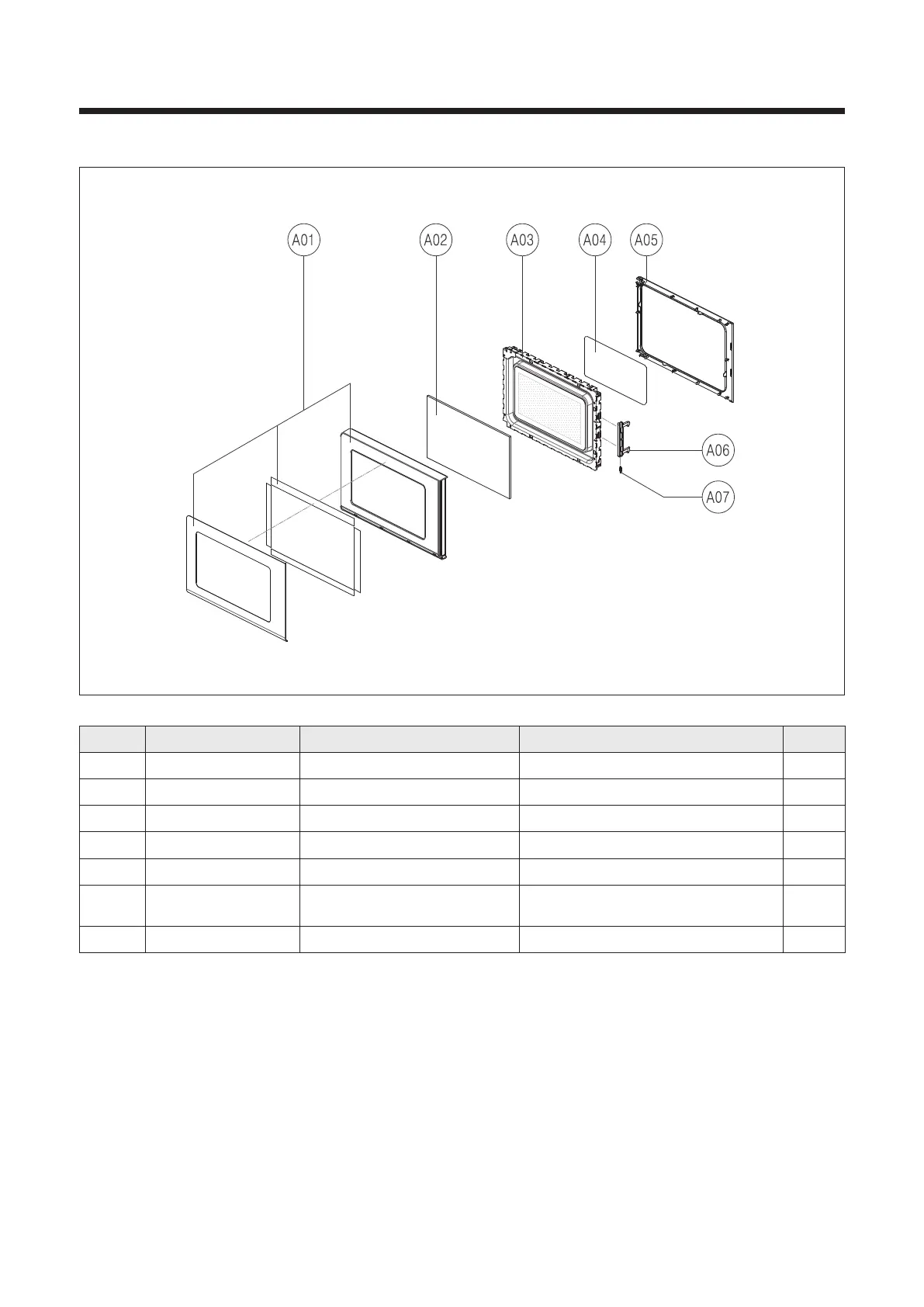

NO PART CODE PART NAME PART DESC. Q'TY
A01 35117-0046000-00 DOOR SUB AS KOR664B SUS(BLACK) 1
A02 3517011010 BARRIER-SCREEN *O TEMP GLASS T3.2 1
A03 35117-0043700-00 DOOR PAINTING AS KOR660B BLACK 1
A04 35170-0021000-00 BARRIER-SCREEN *I PETP T0.1 KOR660B 1
A05 35123-0002600-00 GASKET DOOR PP J-640A, BLACK, KOR660B 1
A06 35131-0001001-00 HOOK
POM F20-03 BLACK KOR4A07
BUTTON TYPE
1
A07 3515101300 SPRING HOOK PW1 1
