Compensation of R-sensor ON/OFF temp. (down)
In case temperature of refrigerator compartment is weak or insufficient,
take the following action.
INPUT CONTROL OBJECT
CONTENTS REMARKS
Main PCB
Resistance of R-sensor
ON/OFF Temp. of Refrigerator
R42 : R-SENSOR standard resistance in normal mode (31.4㏀)
In case of weak ref.
1) Cut J1 to increase the standard resistance by 2㏀⇒3℉ down
2) Cut J1 & J2 to increase the standard resistance by 4㏀⇒6℉ down

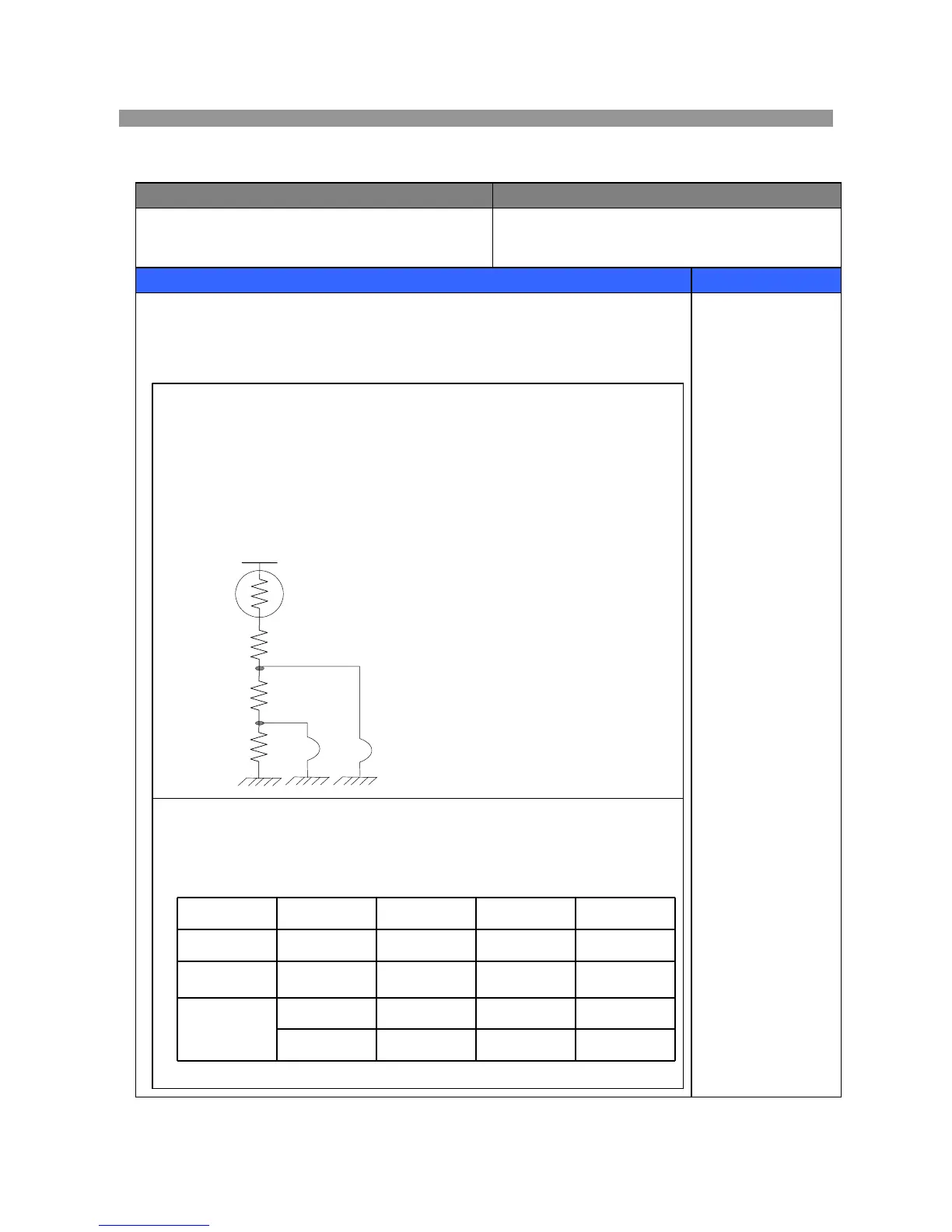

4-11. Compensation of R-sensor ON/OFF Temp.
R-SENSOR
J2
R42
(31.4㏀)
R43
(2㏀)
R44
(4㏀)
J1
J1 - cut - cut
J2 - - cut cut
Temperature
compensation
0
℉
-3
℉
0
℉
-6
℉
Resistance
R42 R42+R43 R42 R42+R43+R44
31.4
㏀
(31.4+2)
㏀
31.4
㏀
(31.4+2+4)
㏀
