INPUT CONTROL OBJECT
CONTENTS REMARKS
Water/Crushed ice/Cube ice
Dispenser Lamp
Dispenser S/V Valve
Gear Motor
Cube S/V
Water(Dis) S/V

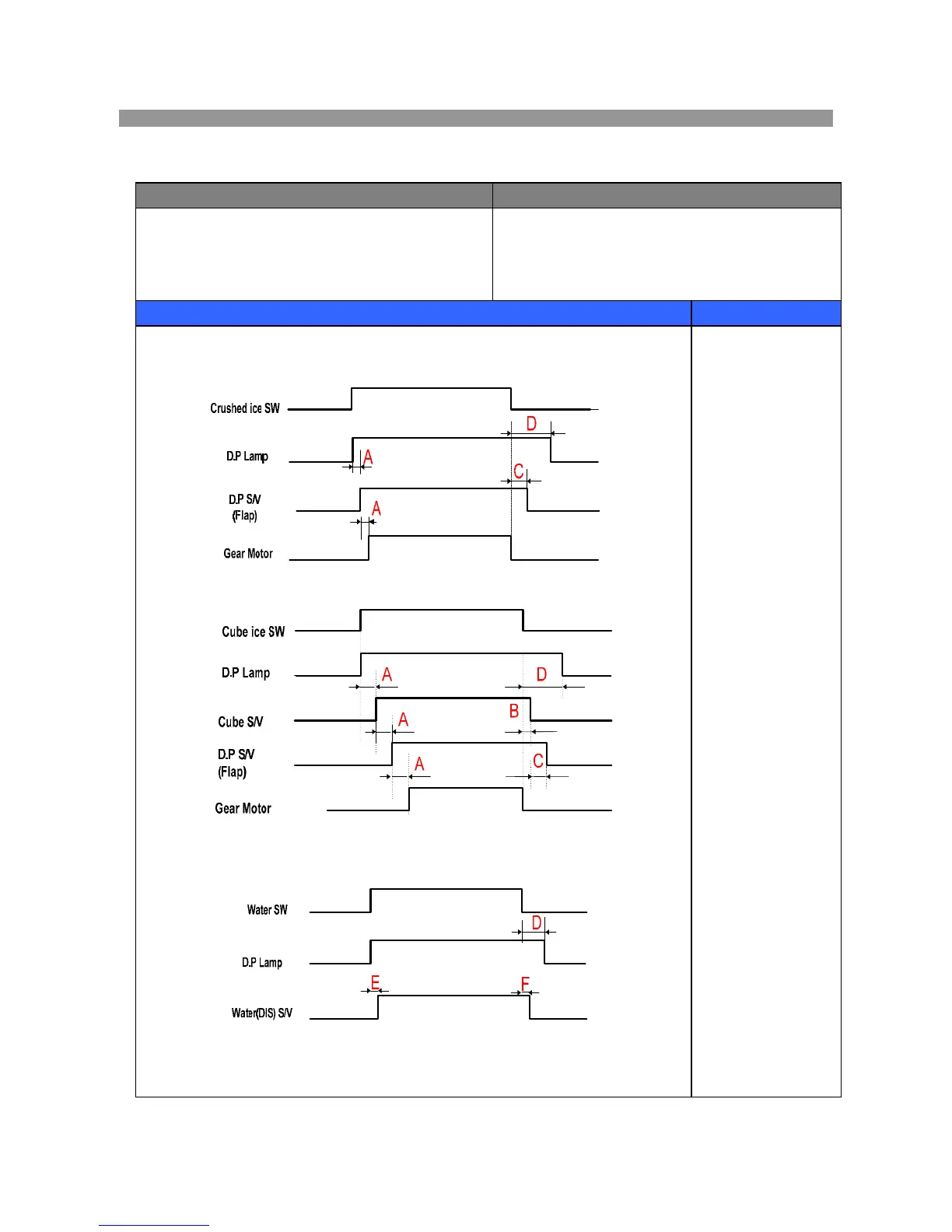

4-12. Control flow & Time chart.
1. Control flow & time chart
① Crushed Ice
② Cube Ice
③ Water
Delay time : A = 0.5sec , B =0. 5sec , C = 2.0sec , D = 5.0sec , E=0.3sec, F=0sec
