Daewoo RFS-26D1 Series - Dispenser Solenoid Valve

33
NO DISASSEMBLING PROCEDURE NO DISASSEMBLING PROCEDURE
14
36
▷ Separate 2 housings from Front PCB.
(Do not hold only wires to pull out.)
▷Unscrew (2ea) to remove Sol Valve.
▷Unscrew (2ea) to remove Box Dispenser Shut. ▷Unscrew (1 point) to remove Cover Ice Flap.

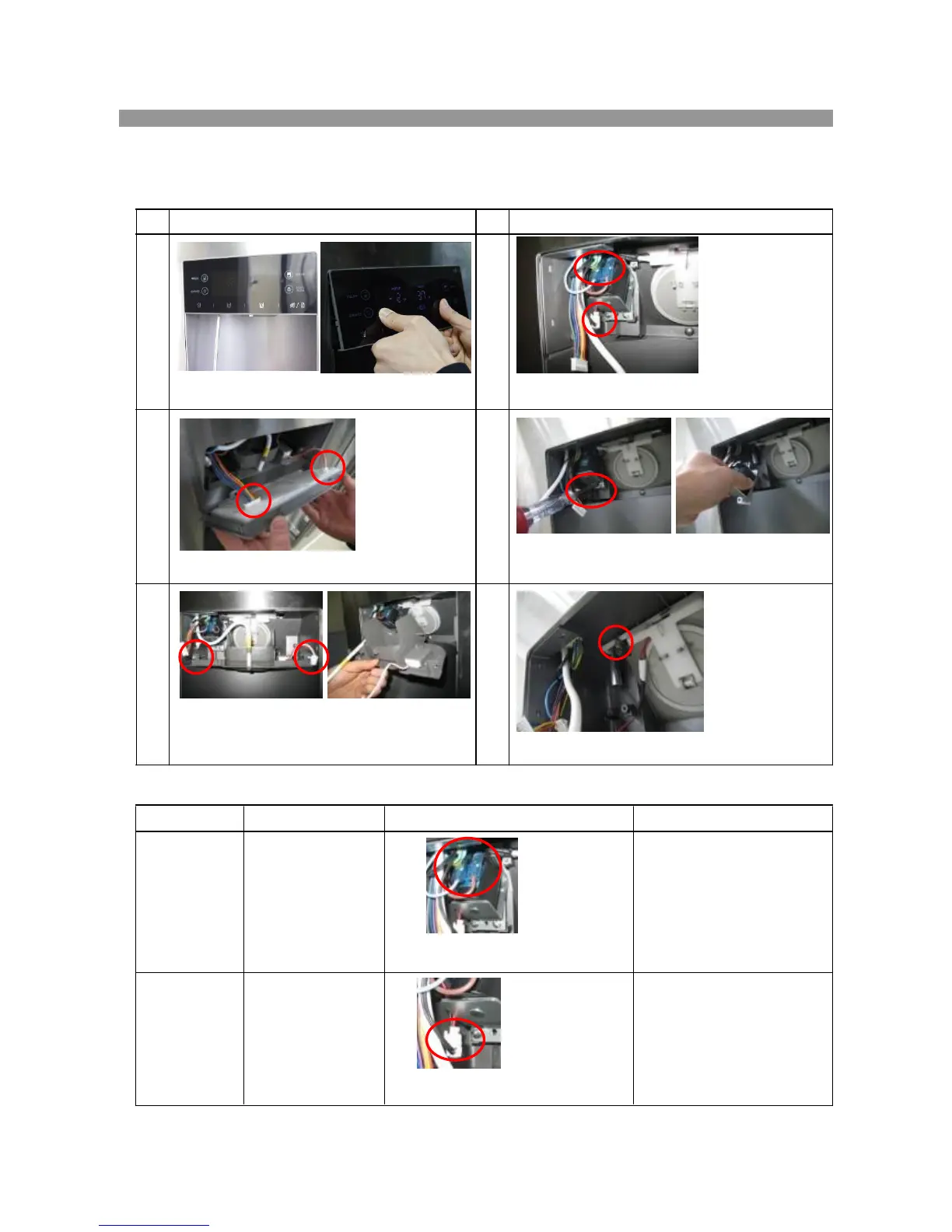

7-3. Dispenser Solenoid Valve
1) Disassembling Procedure
25
▷Separate 2 terminals from Sol Valve and
Housings from Cover Ice Flap.
▷Unscrew (1ea) to remove F-PCB Panel.
33
2) How to Check Sol Valve & Flap Heater
SPEC. CRITERION
▷ Good : 49Ω(±10%)
(44.1~53.9Ω)
▷DEFECTIVE : 0
Change Sol Valve.
PARTS HOW TO CHECK
▷GOOD : 72Ω(±8%)
(66.2 ~ 77.8Ω)
▷DEFECTIVE ;
Change Flap Heater AS.
▷SPEC. NAME
:SOL2003-02D
▷VOLTAGE
:110/115V,60Hz
▷VOLTAGE
:DC 12V, 2W
▷Check resistance value of
both terminals with a tester.
Dispenser
Sol Valve
Flap Heater
Assembly
▷Check resistance value of
both terminals with a tester.
