32
NO DISASSEMBLING PROCEDURE NO DISASSEMBLING PROCEDURE
14
25
36
▷Disassemble Ice Maker.
▷Unscrew (2 ea).and pull forward Geared Motor
▷Check Solenoid Valve and Geared Motor.

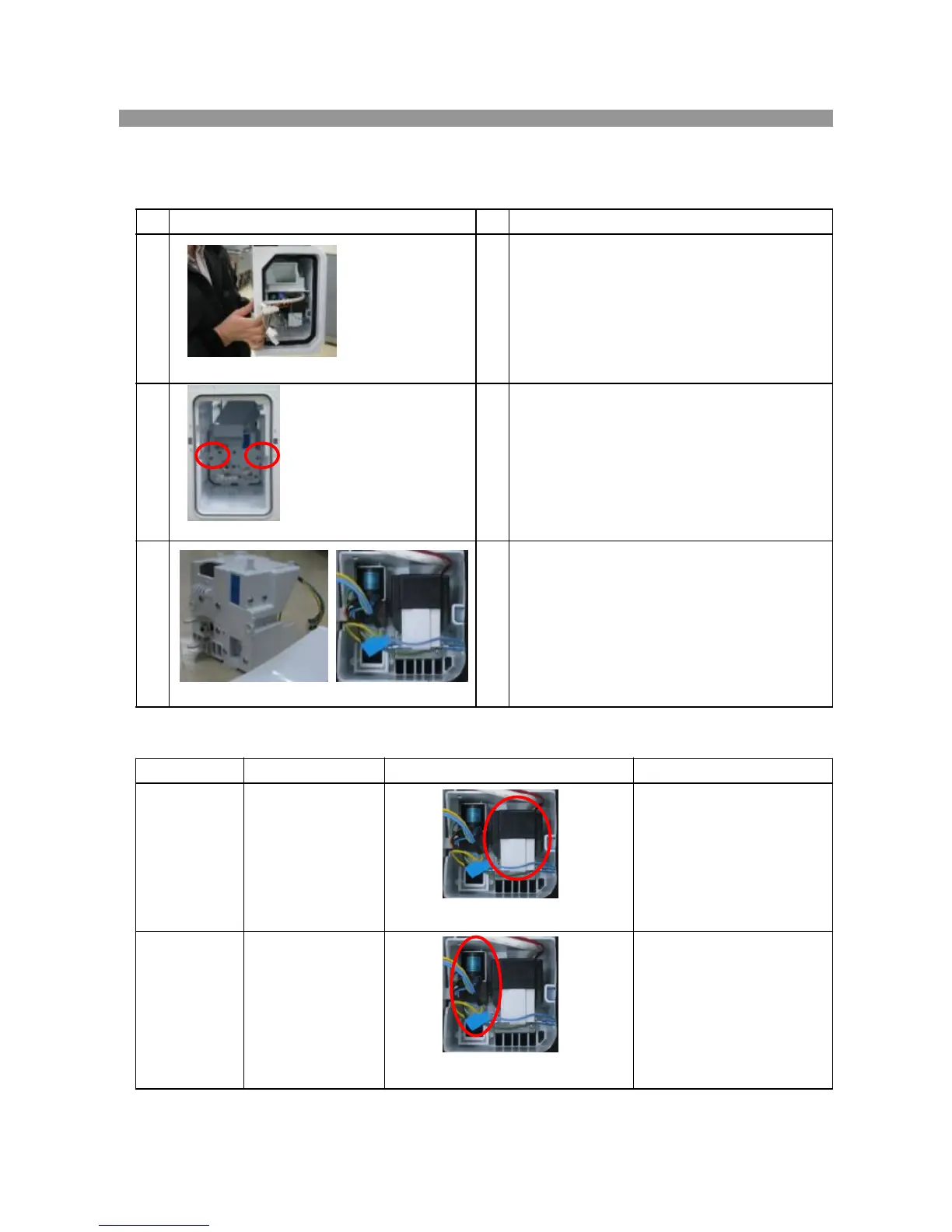

7-2. Geared Motor Assembly
1) Disassembling Procedure
2) How to Check Geared Motor Assembly
SPEC. CRITERION
▷GOOD : 2.6Ω(±7%)
: 2.3Ω(±7%)
▷DEFECTIVE ;
Change the Geared Motor.
PARTS HOW TO CHECK
▷GOOD : 42Ω(±10%)
: 38Ω(±10%)
▷DEFECTIVE ;
Change the Cube Sol Valve.
▷Check resistance value of
2 terminals with a Multi Tester.
▷SPEC. NAME
:DAG-6502DESB
:S6150XRI01
▷VOLTAGE
:120V,60Hz
▷SPEC. NAME
:Cube SN9
:SOL2004-01D
▷VOLTAGE
:110/127V,50/60Hz
:110/115V 60Hz
▷Check resistance value of
2 terminals with a Multi Tester.
Geared Motor
Cube Sol Valve
To Next Page
