Removing and replacing Refrigerator parts

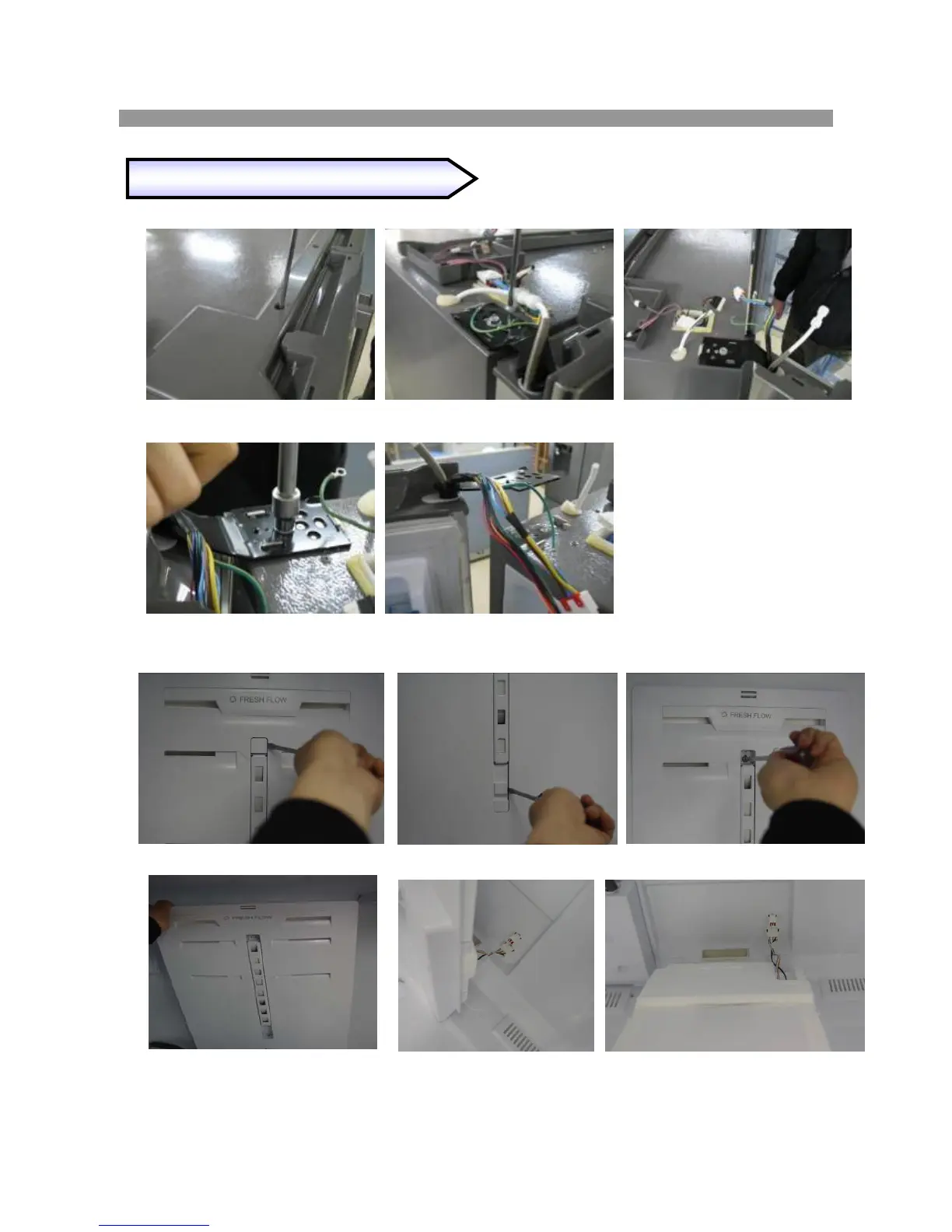

1) Disassembling R Door procedure
* Remove Cap Screws *T by ‘-’ driver.
* Remove Screws (1ea) of clip and
remove the clip.
* Disconnect housing and water
hose.
* Remove Bolt(1ea) of Hinge *T and
remove the Hinge *T.
* Pull up the door and remove the
door.
2) Disassembling Multi-Duct procedure
* Remove Cap Screws *U by ‘-’ driver. * Remove Screws(2ea).
* Pull forward top of Multi Duct AS . * Disconnect housings .
To Next Page
