47
* Remove the
Water Filter
cover
* Unscrew 2 points.
①
②
③
Change the Lamp Ass’y.
Start
Repair the R-door switch.
Check the R-door
switch Connection.
Y
N
N
Y
R Lamp Ass’y
Is brocken?
Connection of R door
switch is OK ?

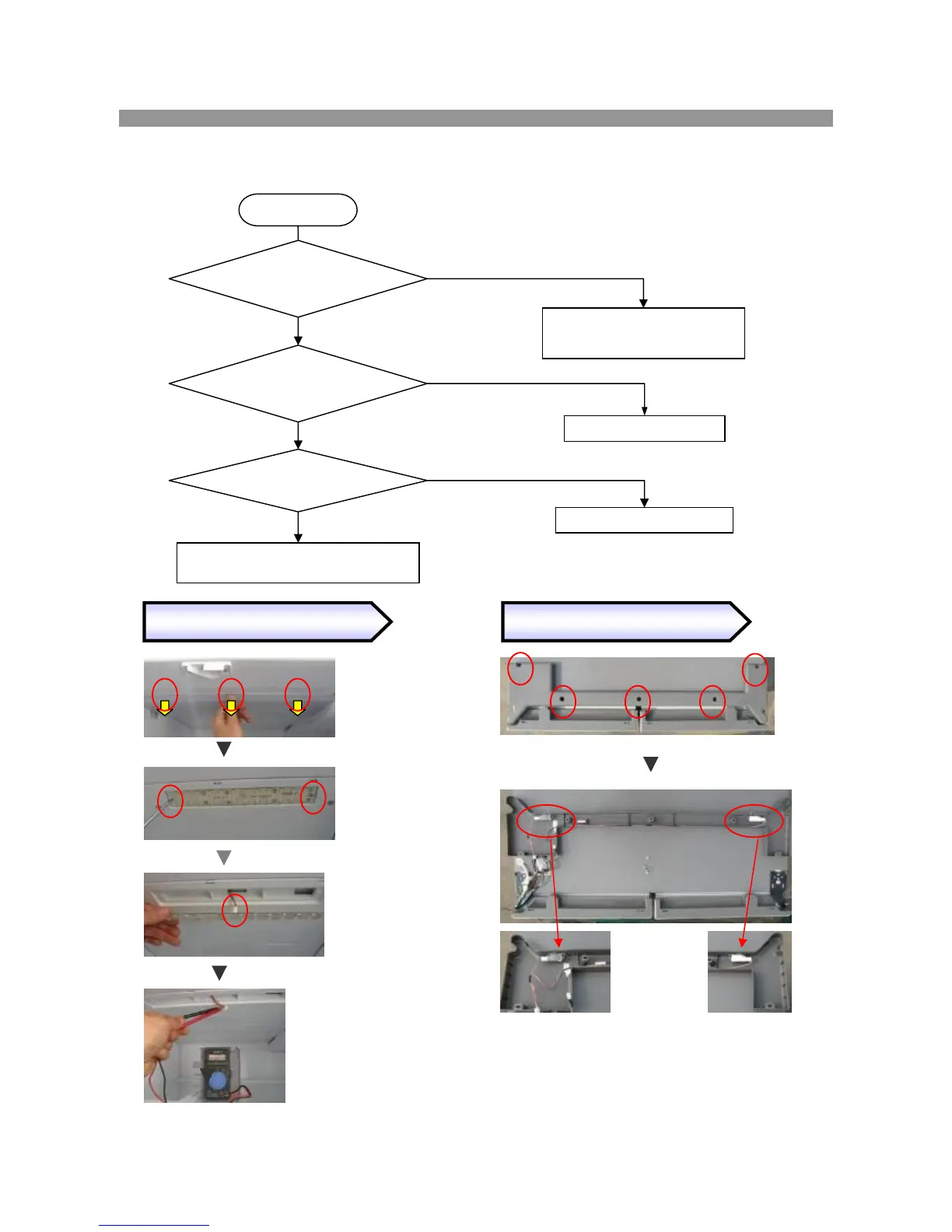

8-3-2. Disconnection / Breaking of Refrigerator Lights Wires
Change of R Lights
* Pull out connector
from R-Lamp Ass’y.
Change of R Door Switch
①
②
* Unscrew 5 points.
* Pull out the connector and change the switch
for a new one.
※ Follow the reverse order
of disassembling after
changing the switch.
④
* Check the power of
R-Lamp connector
(DC 12V)
Check the power connection?
(From Main PCB to R-Lamp)
Power of F-Lamp
Is OK ? (DC12V)
N
Y
To Next Page
