4-17
4.9 REMOVAL AND INSTALLATION, EXTERIOR MIRROR GLASS

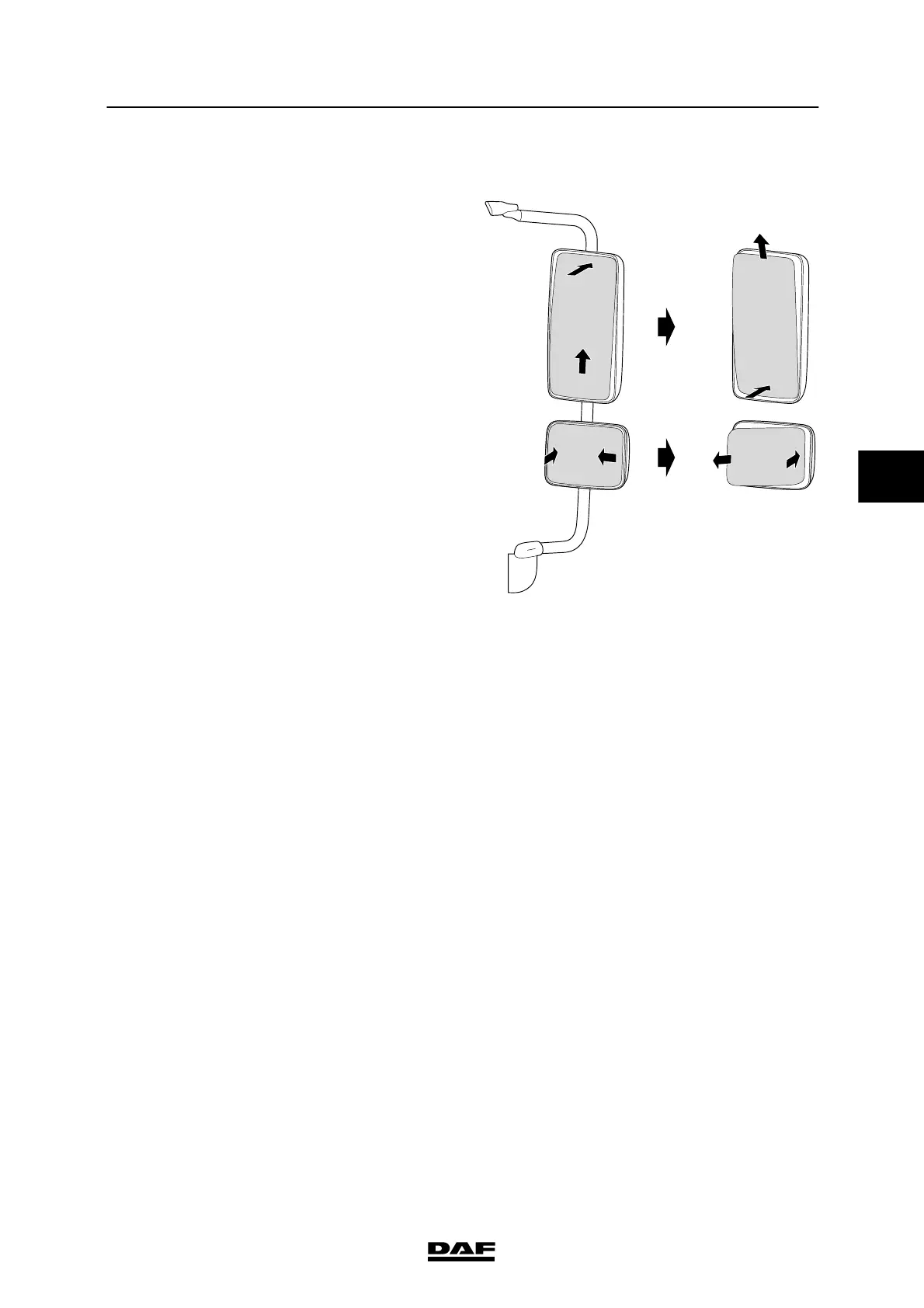

Removing the main exterior mirror glass
1. Press in the mirror glass at the top (1).
2. Push the mirror glass upwards (2).
3. Press in the mirror glass at the bottom (3).
4. Put your fingers in the opening created and
now push the mirror glass (from the bottom
up) out of the fixing and remove the
glass (4).
Installing the main exterior mirror glass
1. Put the mirror glass in place.
2. Push the mirror glass from the top down
into the fixing.
3. Put the mirror in its required position.
Removing the wide-angle exterior mirror
glass/dead angle exterior mirror glass
1. Press in the mirror glass on the left-hand
side (1).
2. Push the glass sideways from right to
left (2).
3. Press in the mirror glass on the right-hand
side (3).
4. Put your fingers in the opening created and
now push the mirror from right to left out of
the fixing and remove the glass (4).
Installing the wide-angle exterior mirror
glass/dead angle exterior mirror glass
1. Put the mirror glass in place.
2. Push the mirror glass into the fixing from left
to right.
3. Put the mirror in its required position.
1
1
2
3
4
2
3
4
K1 01 029
