CAB TILTING MECHANISM
2-5

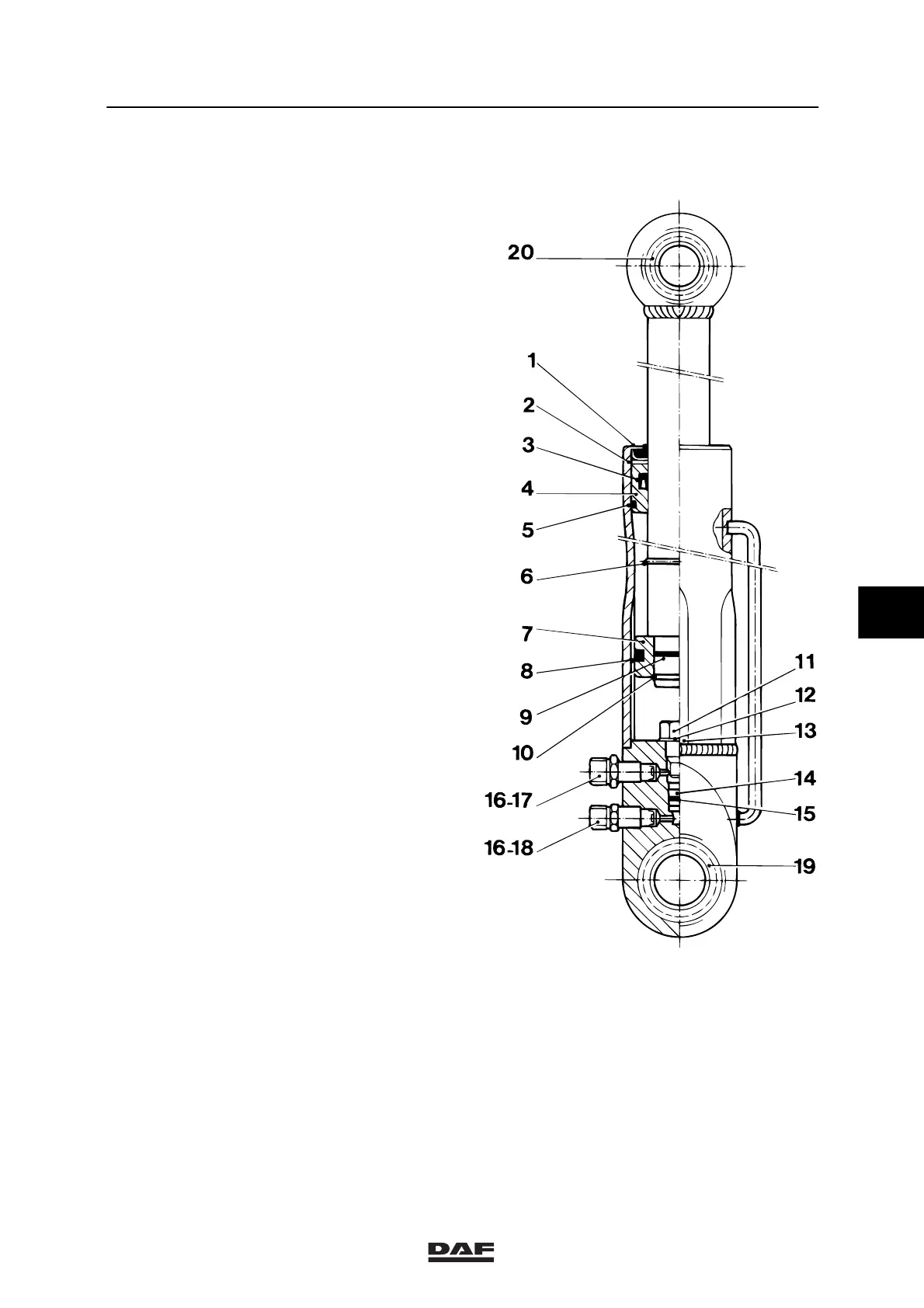

2.3 OVERVIEW DRAWING, LIFTING CYLINDER
Legend
1. Dirt scraper
2. Circlip
3. U-cup
4. Upper bearing
5. O-ring
6. Stop ring
7. Piston
8. O-ring
9. O-ring
10. Circlip
11. Non-return valve seat
12. Ring
13. O-ring
14. Non-return valve
15. O-ring
16. Seal
17. Coupling
18. Coupling
19. Plastic ring
20. Plastic ring
K100127
