EXTERNAL CAB COMPONENTS
Removal and installation 95XF series
4-26

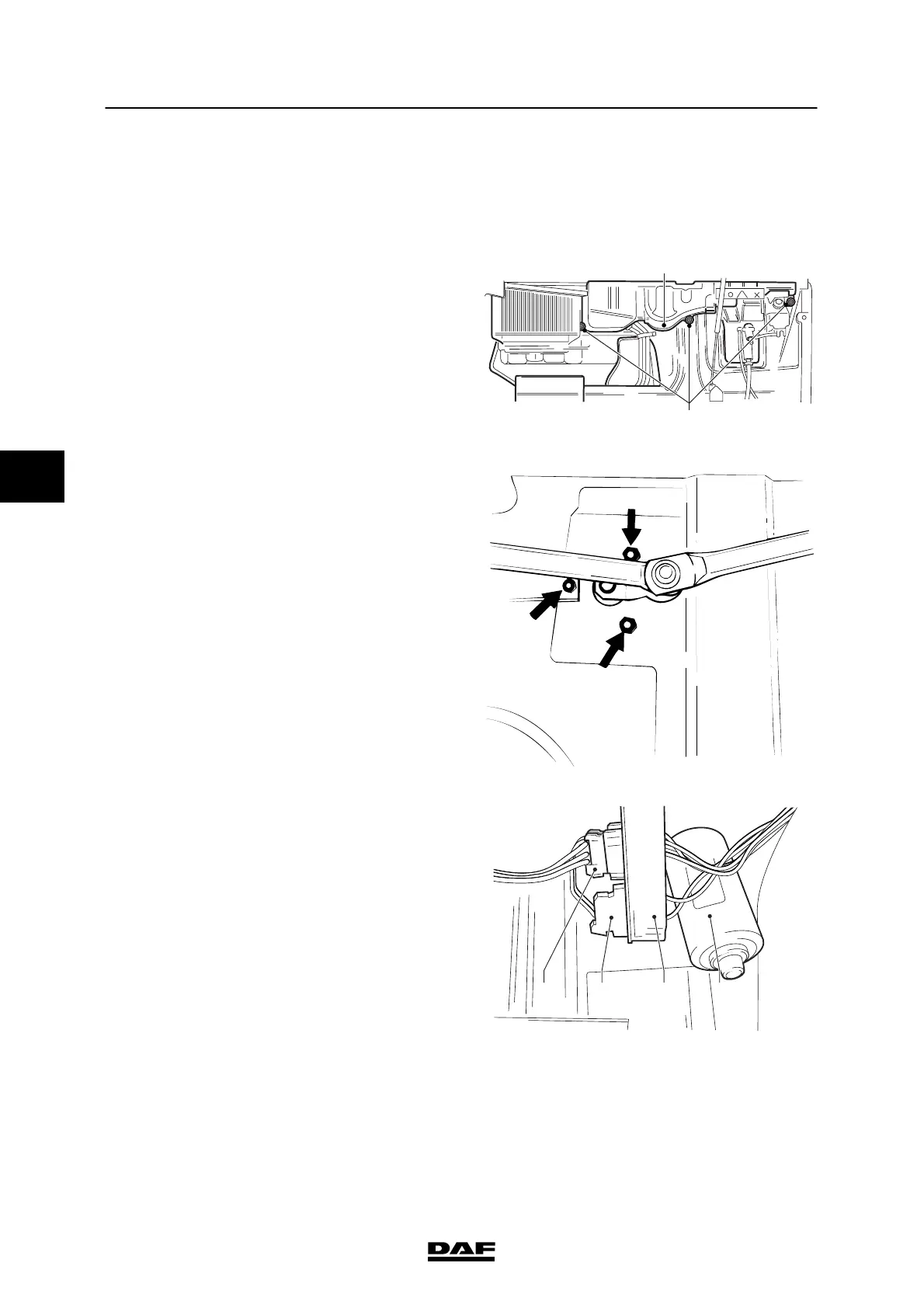

4.14 REMOVAL AND INSTALLATION, WINDSCREEN WIPER MOTOR
Removing the windscreen wiper motor
1. Open the cab grille.
2. Remove the attachment nuts (1) and the
cover (2) over the windscreen wiper
mechanism, and remove the cover by
sliding it downwards.
3. Turn the crank of the windscreen wiper
linkage and remove the nut of the
windscreen wiper motor spindle.
1
2
K1 01 459
4. Remove the attachment bolts of the
windscreen wiper motor.
5. Using a plastic hammer, carefully tap the
end of the windscreen wiper motor spindle
and take the crank off the motor spindle.
6. In the cab, remove the dashboard panels to
the right of the steering column and the
panel underneath the radio panel.
Note:
For a RHD vehicle, remove the dashboard
panels to the left of the steering column.
K100211
7. Unplug the connectors (1) and (2) and
press the connectors out of the dashboard
attachment frame (3).
8. Unplug the windscreen wiper motor
connector.
9. Remove the windscreen wiper motor (4) by
lowering it between the dashboard
attachment frame and the engine tunnel.
2134
K1 01 460
4
á“» 200345
