DAF 95XF Series - REMOVAL AND INSTALLATION

1
95XF series Removal and installation
SEATS
4-1
4. REMOVAL AND INSTALLATION
4.1 REMOVAL AND INSTALLATION, SEAT ASSEMBLY
Removing seat assembly

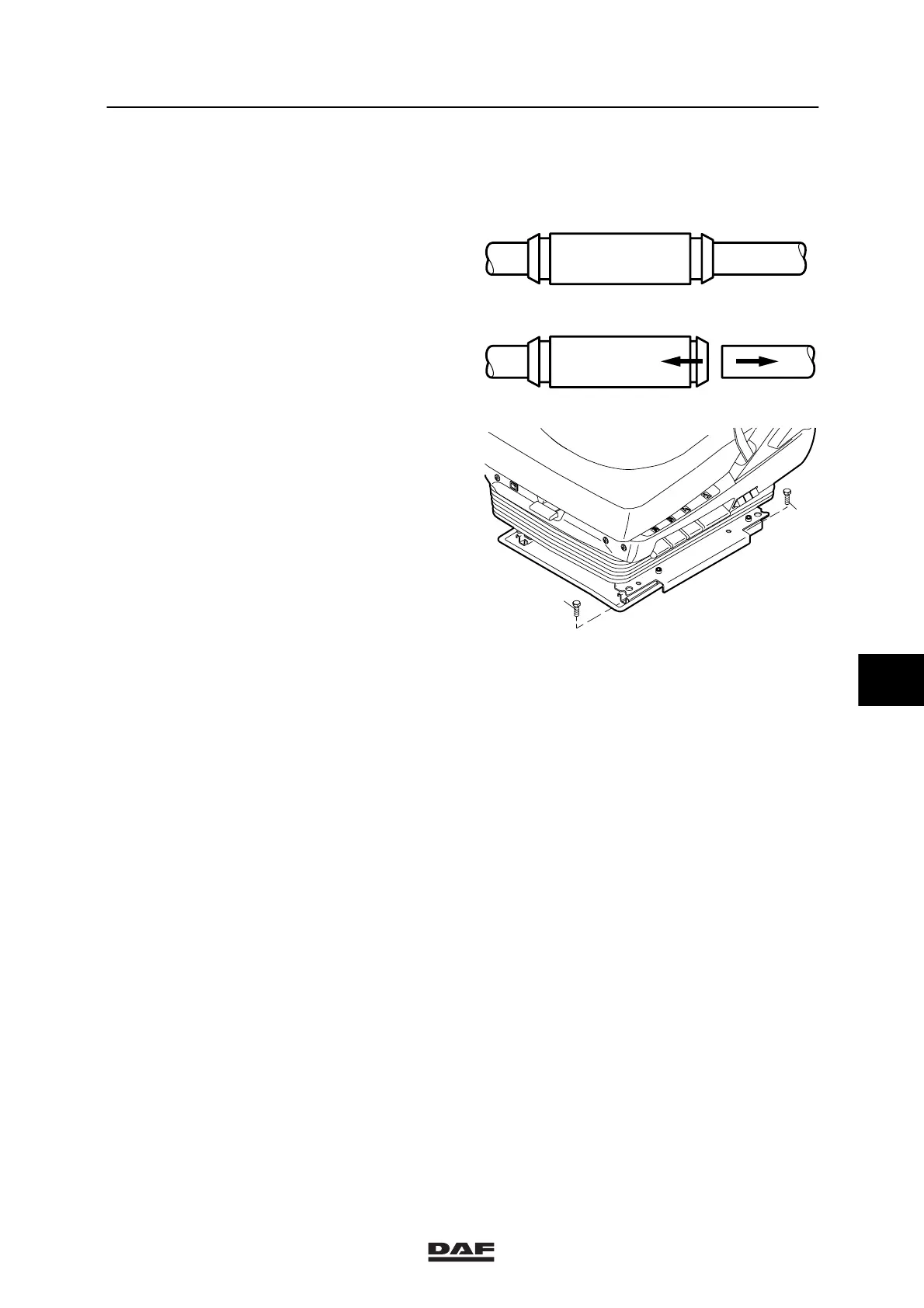

1. Remove the air pipes, pressing the side of
the quick-release coupling and pulling the
pipe from the coupling.
2. Remove the seat squab and remove the
seat heating connector (if applicable).
K100412
3. Slide the seat backwards and remove the
front screws (1).
4. Slide the seat forwards and remove the rear
screws (2).
Installing seat assembly
1. Place the seat on the ground plate. Make
sure that the air piping does not get pinched
off.
Slide the seat backwards and tighten the
front screws (1).
2. Slide the seat forwards and tighten the back
screws (2).
3. Connect the air pipe.
4. Install the seat heating connector.
5. Tighten the seat to the specified tightening
torque, see “Technical data”
K100487
1
2
7
ᓻ 0209
