Removal and installation
ZF 6S-850 GEARBOX
ΛΦ45/55 series
3
5
6. Drive the oil seal and dust seal out of the
selector shaft housing. If necessary, the
selector shaft bearing bushes can now also
be replaced with special tool
(DAF no. 0694818). Press the bearing bush
on the control side 2 mm under the edge.
LHD model
Installing selector shaft oil seal
1. Sparingly apply a liquid gasket to the oil seal
and fit it in the control cover using special tool
(DAF no. 0535659). Now fit the dust seal in
the control cover using special tool
(DAF no. 0535659). Apply grease to the oil
seal lips.
2. Fit the special tool ((DAF no. 0694817)), a
guide sleeve, over the selector shaft and fit
the selector fingers and the gear lever lock
into the selector housing. Fit the selector
shaft. Watch the control stop slot.
3. First fit the control stop before fitting the
spring pins.
4. Fit the spring pins and the locking pin.
5. Apply a small amount of sealant to the
sealing cap. Install the springs, rings, and the
sealing cap. Fit the circlip.
6. Put the gearbox into neutral, install a new
gasket in the selector shaft housing and fit it
onto the gearbox housing. Tighten the bolts
to the specified torque. See "Technical data".
7. Fit the shift control and check that all gear
changes function properly.
W 3 03 050

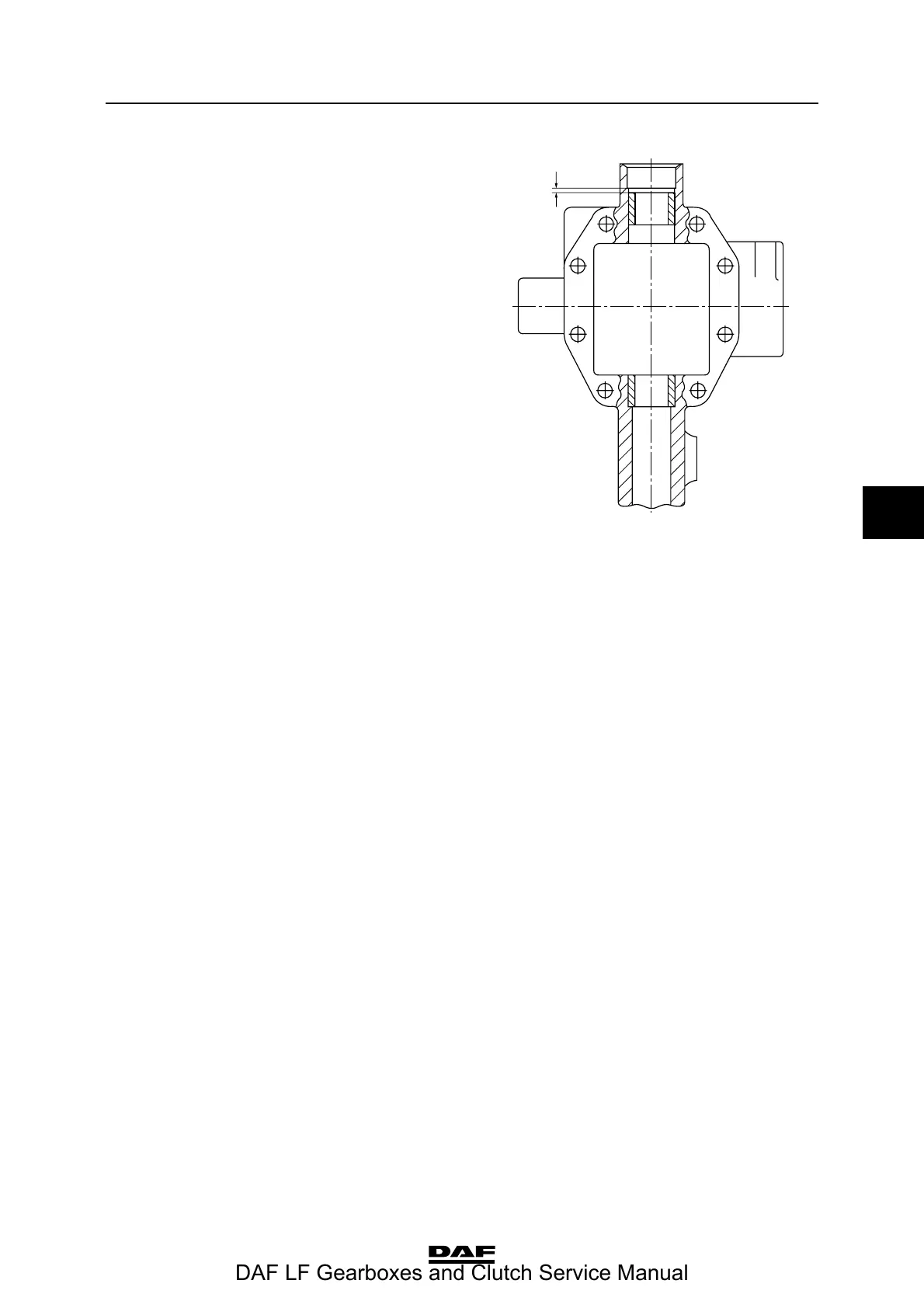

2 mm
