PNEUMATIC GEARBOX CONTROL
3-2
©
200508
Inspection and adjustment
3
ΛΦ45/55 series
3
3.2 SIMULATING SPEED SIGNAL
The speed signal can be simulated with DELSI
(DAF no. 0694941). DELSI must be connected to
the speed sensor connector.
Before connecting DELSI to the speed sensor
connector, an adapter cable must be made.
The adapter cable must consist of the following
wiring:
When the speed sensor connector is
disconnected, a fault is stored in the tachograph.
This fault can be deleted using DAVIE XD.

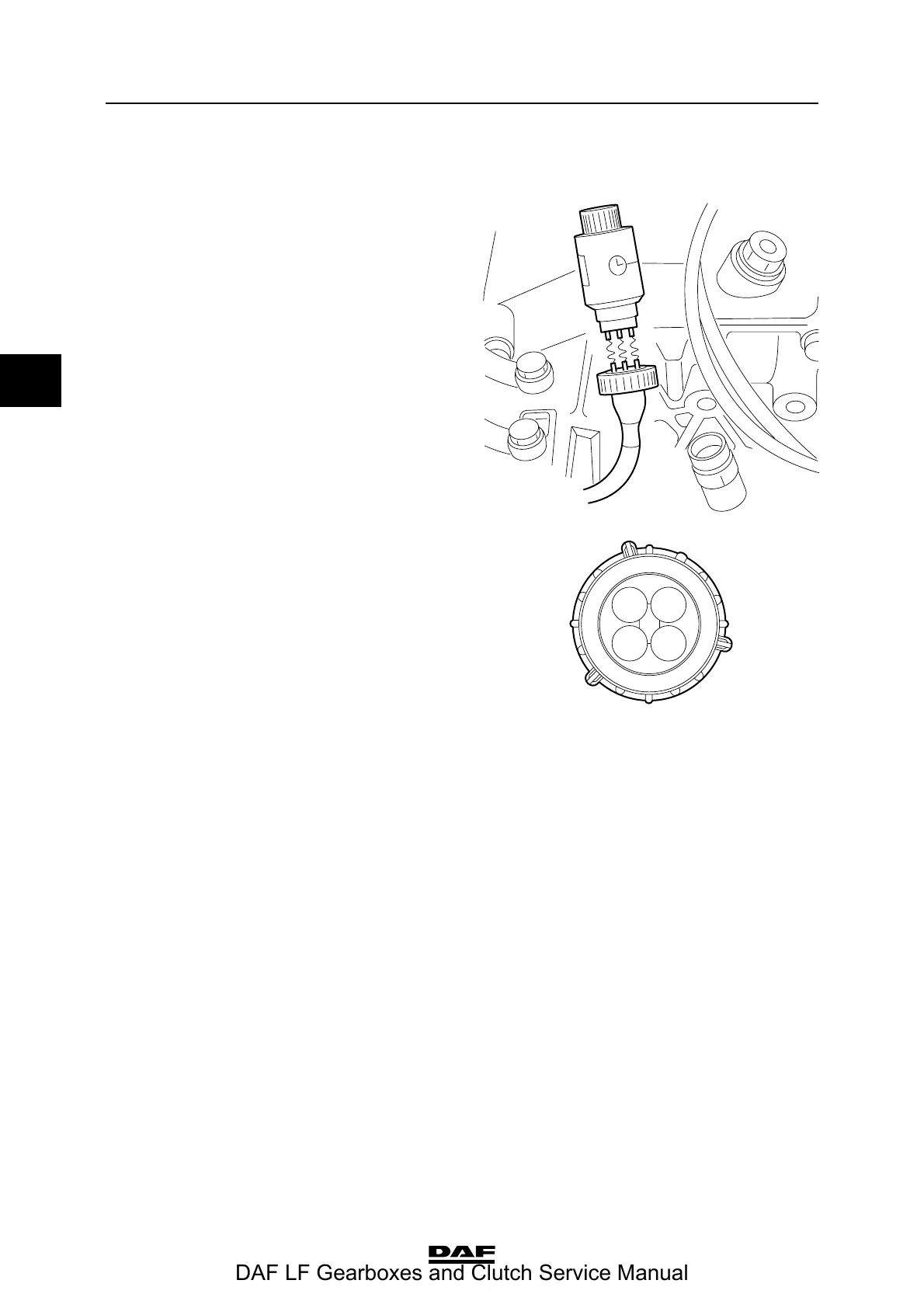

V300425
24
31
K100873
Pin 1: speed sensor, power supply
Pin 2: speed sensor, earth
Pin 3: speed sensor, "real-time"
speed/distance signal
Pin 4: not in use
DAF LF Gearboxes and Clutch Service Manual
