ALLISON MD 3060 AUTOMATIC GEARBOX
4-4
©
200508
Removal and installation
8
ΛΦ45/55 series
3

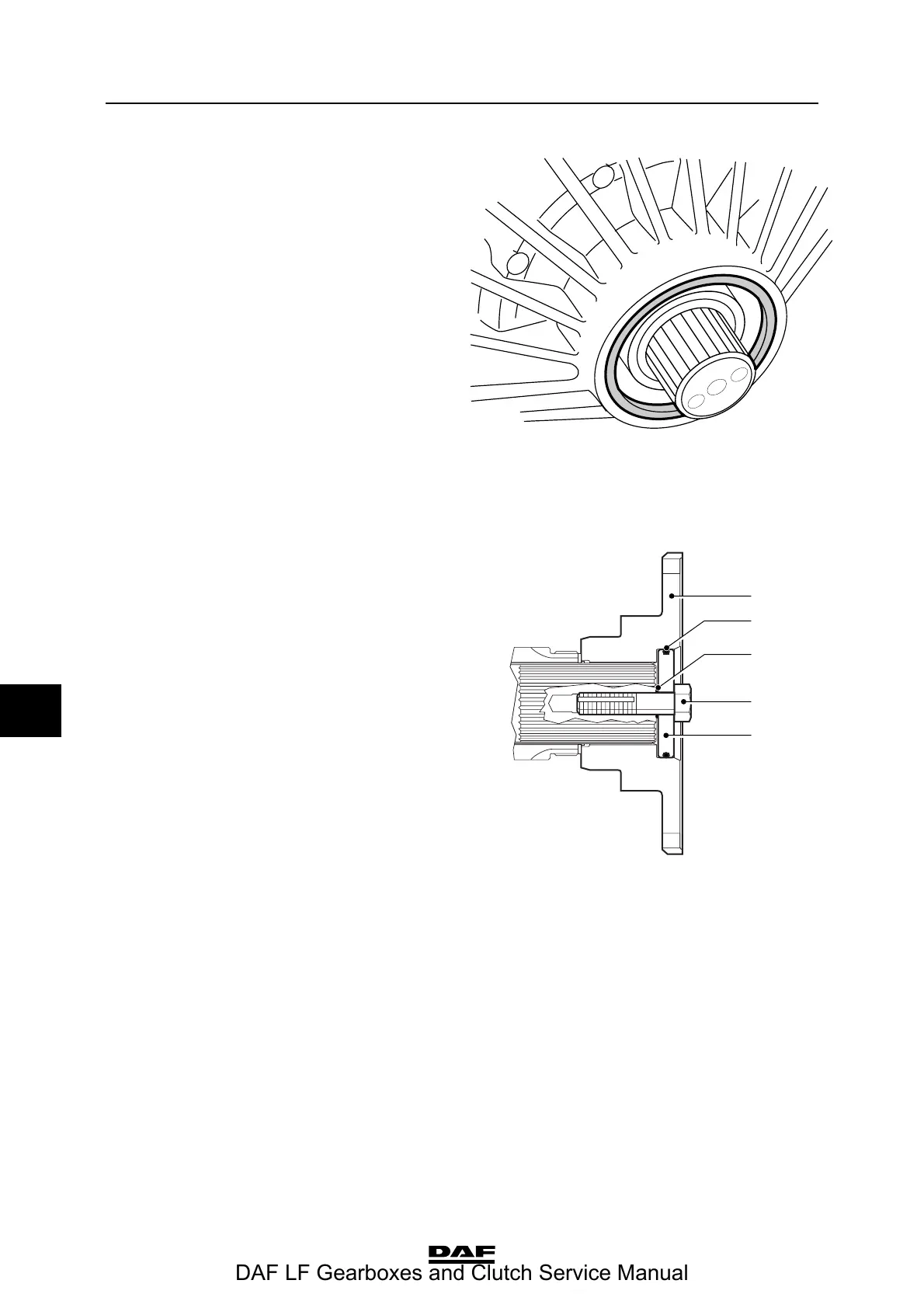

4. Slide the flange off the output shaft or, if
necessary, use a tripod puller to pull it off the
shaft.
5. Drill two holes in the external cover of the oil
seal and turn special tool (DAF no. 0484899)
into the oil seal. Pull the oil seal out of the
gearbox housing using special tool
(DAF no. 0694928).
Installing output shaft oil seal
1. Apply a small amount of liquid gasket to the
outside of oil seals fitted with a steel cover.
Apply a small amount of green soap to the
outside of oil seals fitted with a rubber cover.
2. Fit the oil seal in the gearbox housing using
special tool (DAF no. 1240037).
3. Apply a small amount of grease to the oil seal
lips and slide the flange over the output shaft
until it abuts.
4. Fit new sealing rings (2, 3) to the locking
plate and fit it with the attachment bolt to the
flange (apply a small amount of grease to the
sealing rings).
Note:
The attachment bolts on the new gearboxes
are no longer secured by a locking plate, but
by the self-locking screw thread in the output
shaft.
5. Hold the prop shaft flange in place with the
special tool (DAF no. 0484977).
6. Tighten the attachment bolt (5) to the
specified torque. See "Technical data".
If the locking plate is not tightened to
the specified torque, there is a risk of
it getting bent during fitting, which
could lead to serious oil leakage.
W 3 03 062
V300530
1
5
4
3
2
}
