DAF LF55 Series - Removal and Installation: Backrest

1
LF45/55 series Removal and installation
SEATS
4-9

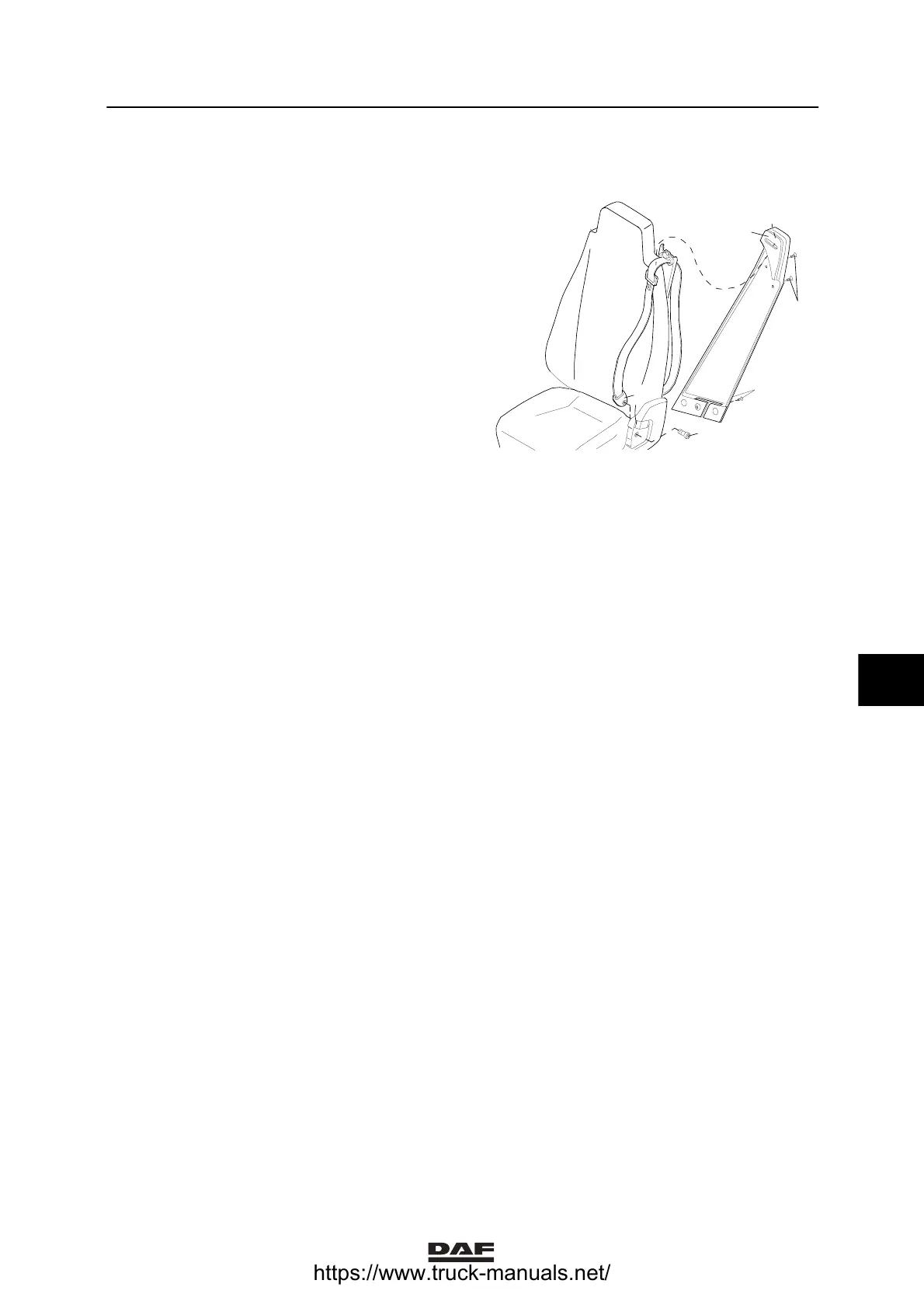

4.11 REMOVAL AND INSTALLATION, SEAT BELT GUIDE PANEL
Removing seat belt guide panel
1. Lift the operating lever of the backrest
adjuster. Remove the attachment bolt (1) of
the seat belt mount (2). Remove the seat
belt mount (2).
2. Remove the attachment screws (3) of the
seat belt guide panel from the backrest.
3. Lift the seat belt guide panel of the seat belt
guide off the backrest. Guide the seat belt
with mount and latch through the opening at
the front of the seat belt guide panel (4).
4. Remove the seat belt guide panel from the
backrest.
Installing seat belt guide panel
1. Guide the seat belt with mount (2) through
the opening of the seat belt guide panel (4).
2. Fit the seat belt guide panel to the backrest
using the attachment screws (3).
3. Fit the seat belt mount (2) to the seat frame
using the attachment bolt (1).
3
3
1
4
2
K1 01 385
4.12 REMOVAL AND INSTALLAT ION, BACKREST
Removing backrest
1. Remove the seat assembly.
2. Remove the seat squab.
3. Remove all cover panels.
4. Remove the attachment bolts of the seat
belt guide panel (3).
5. Remove the attachment screws (1) of the
fastening strip (1).
6. Remove the seat belt guide (3) with seat
belt from the backrest.
7
ǹ 0210
