1SEATS
Removal and installation LF45/55 series
4-10

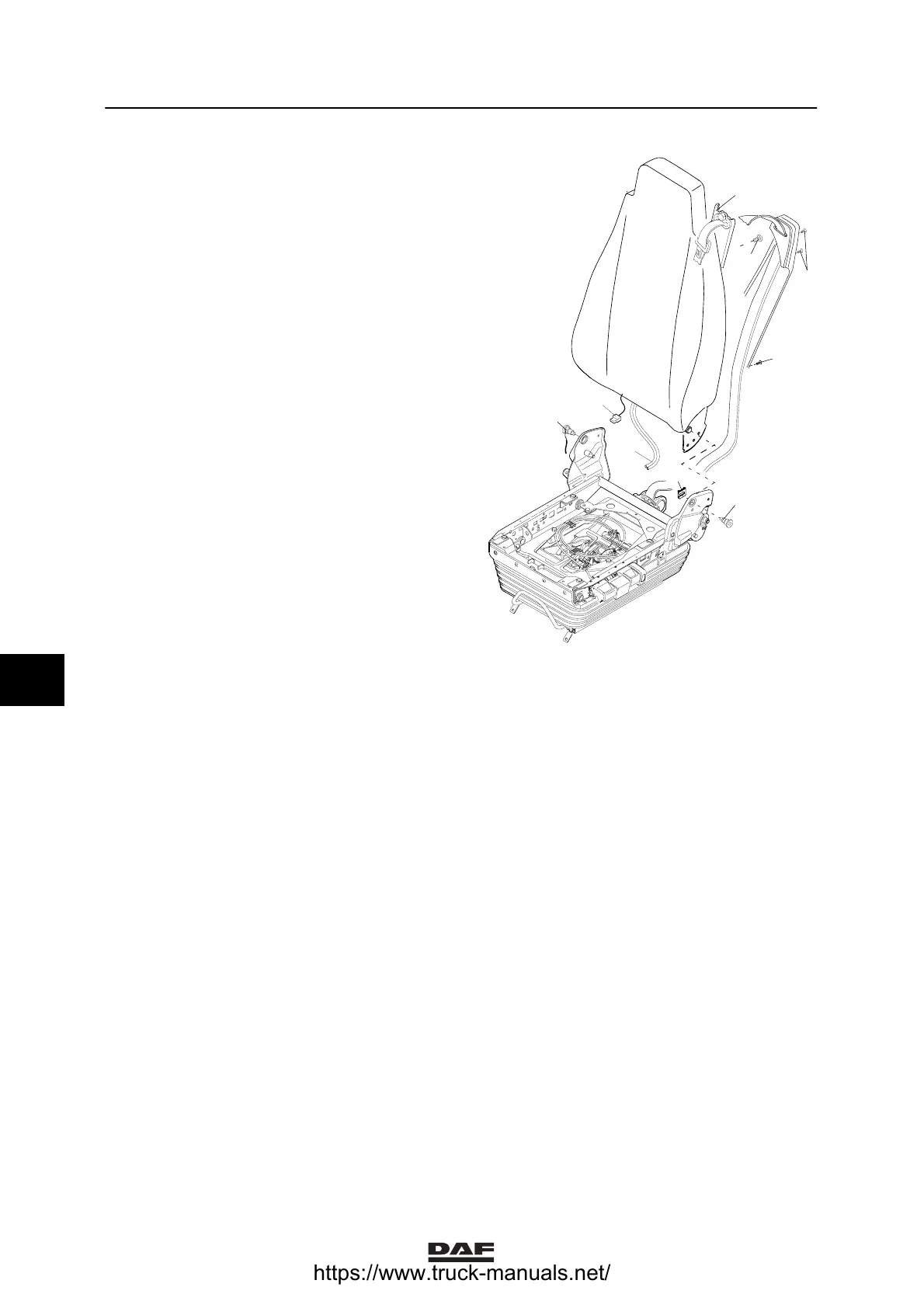

7. Disconnect the air pipes (7) to the backrest.
Mark the position of the air pipes.
8. In the case of electric seat heating,
disconnect the electrical connector (8) to
the seat.
9. Remove the circlip (5) on the attachment
screw (4) of the backrest hinge.
10. Remove the attachment screws (4) of the
backrest hinges.
11. Remove the backrest from the seat frame.
Installing backrest
1. Install the backrest in the correct position
on the seat frame.
2. Clean the attachment bolts (4) of the
backrest hinge. Apply locking compound to
the attachment bolts.
3. Fit the attachment bolts (4) in the backrest
hinge. Fit the attachment bolt (4) with
circlip (5).
4. Fit the air pipes (7) to the backrest.
5. In the case of electric seat heating, connect
the electrical connector (8).
6. Fit the seat belt guide (3) with the
attachment bolt (1) to the backrest.
7. Fit the seat belt guide panel to the backrest
using the attachment bolts (2).
8. Fit all cover panels. Fit the seat squab.
9. Install the seat assembly.
