LF45/55 series Removal and installation
SEATS
4-11

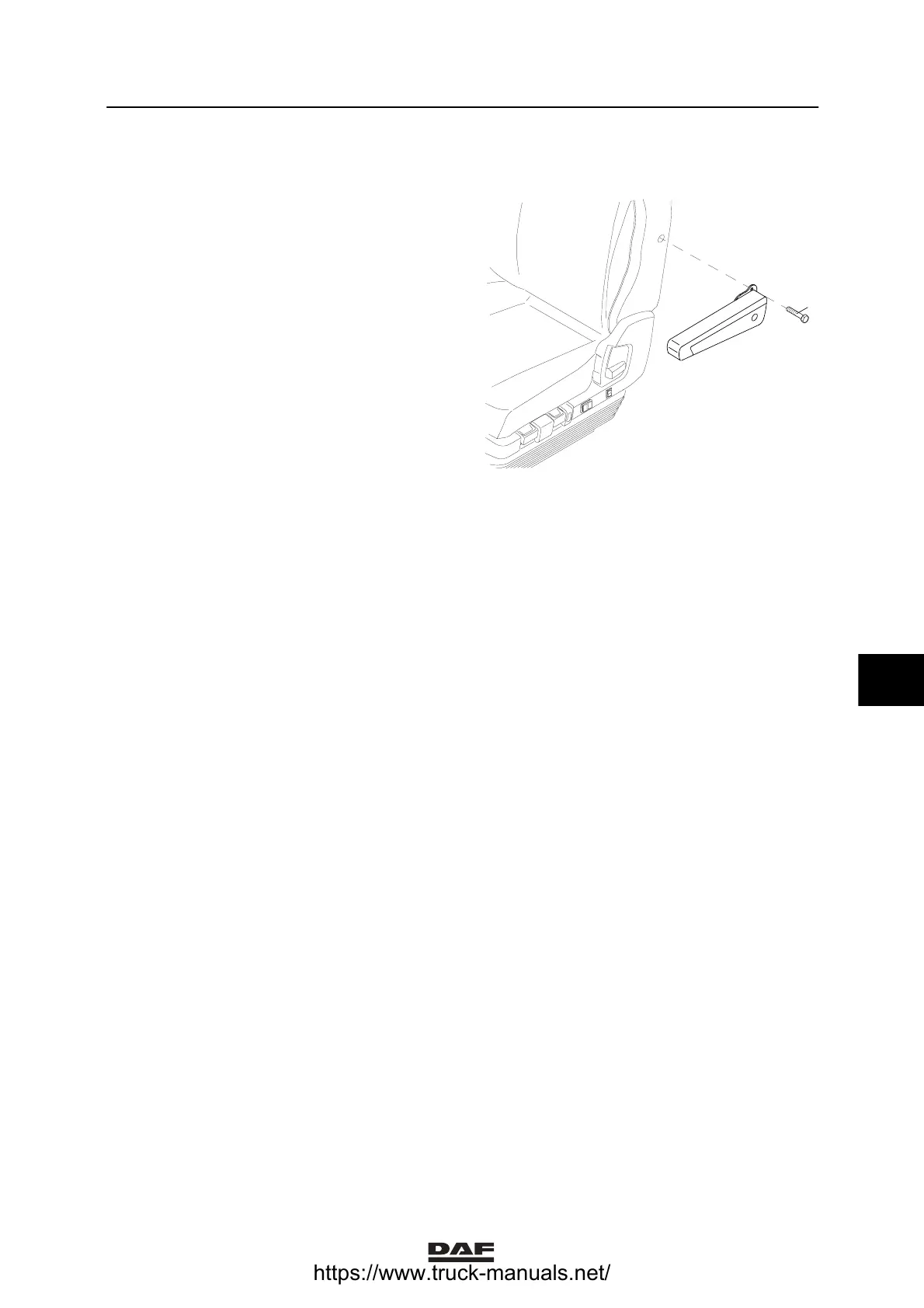

4.13 REMOVAL AND INSTALLAT ION, ARM REST
Removing arm rest
1. Remove the cap on the attachment screw
(1) in the arm rest.
2. Turn the attachment screw (1) of the arm
rest out of the backrest and remove it.
Installing arm rest
1. Fit the arm rest to the backrest using the
attachment screw (1).
2. Fit the cap on the attachment screw (1) in
the arm rest.
1
K1 01 387
4.14 REMOVAL AND INSTALLAT ION, SEAT BELT MECHANISM
- If a seat is equipped with a seat belt
tensioner, the system manual for the airbag
and seat belt tensioner must be consulted
for the various safety instructions and
instructions for removing, installing, packing
and treating pyrotechnic components.
- A seat with seat belt tension can be
identified by the airbag. If a vehicle is
equipped with an airbag, the driver seat
automatically also has a pyrotechnic seat
belt tensioner.
- Avehiclewithanairbagcanbeidentifiedby
the text ”airbag” on the steering wheel and
by a sticker on the windscreen stating that
the vehicle is equipped with an airbag.
Removing seat belt mechanism
1. Remove the rear cover panel.
2. Lift the operating lever of the backrest
adjuster and remove the attachment bolt (6)
underneath of the seat belt mount. Remove
the seat belt mount.
3. Remove the seat belt guide panel.
7
