1SEATS
Removal and installation LF45/55 series
4-12

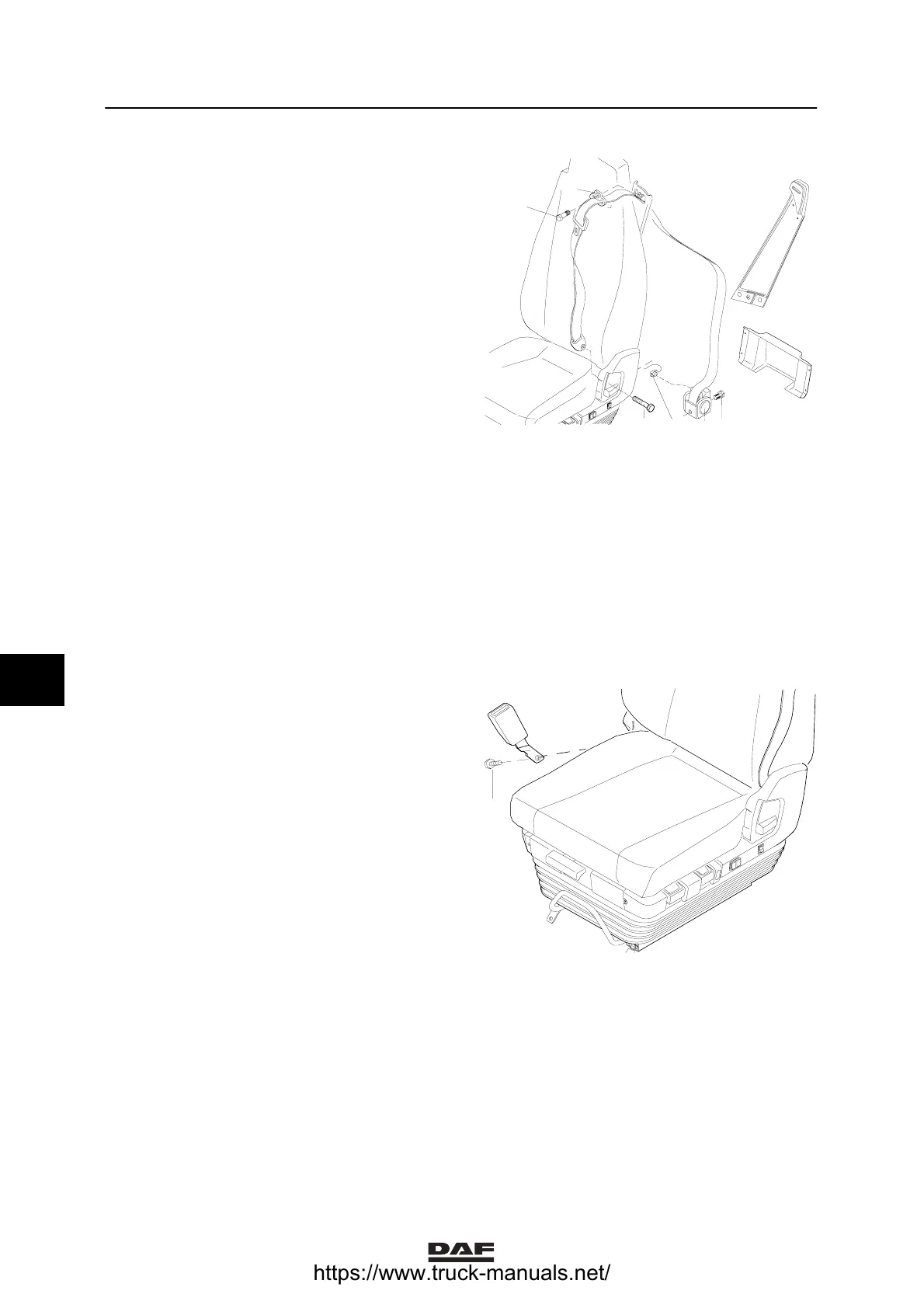

4. Remove the attachment bolt (1) of the
seat-belt guide (2). Remove the seat-belt
guide (2).
5. If there is a seat belt tensioner, disconnect
the plug of the seat belt tensioner (5) on the
seat belt roll (4).
6. Remove the attachment bolt (3) of the seat
belt roll (4). Remove the seat belt roll (4).
Installing seat belt mechanism
1. Fit the seat belt roll (4) to the frame using
the attachment bolt (3). T ighten the
attachment bolt to the specified tightening
torque. See main group ”Technical data”.
2. Fit the seat belt guide (2) with seat belt to
the backrest.
3. Fit the seat belt guide panel to the backrest.
4. Fit the seat belt mount to the seat frame
using the attachment bolt (6) and tighten
the attachment bolt to the specified
tightening torque. See ”Technical data”.
5. Fit the rear cover panel to the seat frame.
3
4
1
2
5
K1 01 388
6
4.15 REMOVAL AND INSTALLATION, SEAT BELT LOCK
Removing seat belt lock
1. Remove the attachment bolt (1) of the seat
belt lock (2).
2. Take the seat belt lock (2) from the seat
frame and the cover panel.
Installing seat belt lock
1. Fit the seat belt lock (2) through the
opening in the cover panel.
2. Fit the seat belt lock (2) to the seat frame
using the attachment bolt (1).
3. Tighten the attachment bolt (1) to the
specified tightening torque. See main group
”Technical data”.
1
K1 01 389
7
