1
LF45/55 series Removal and installation
SEATS
4-13

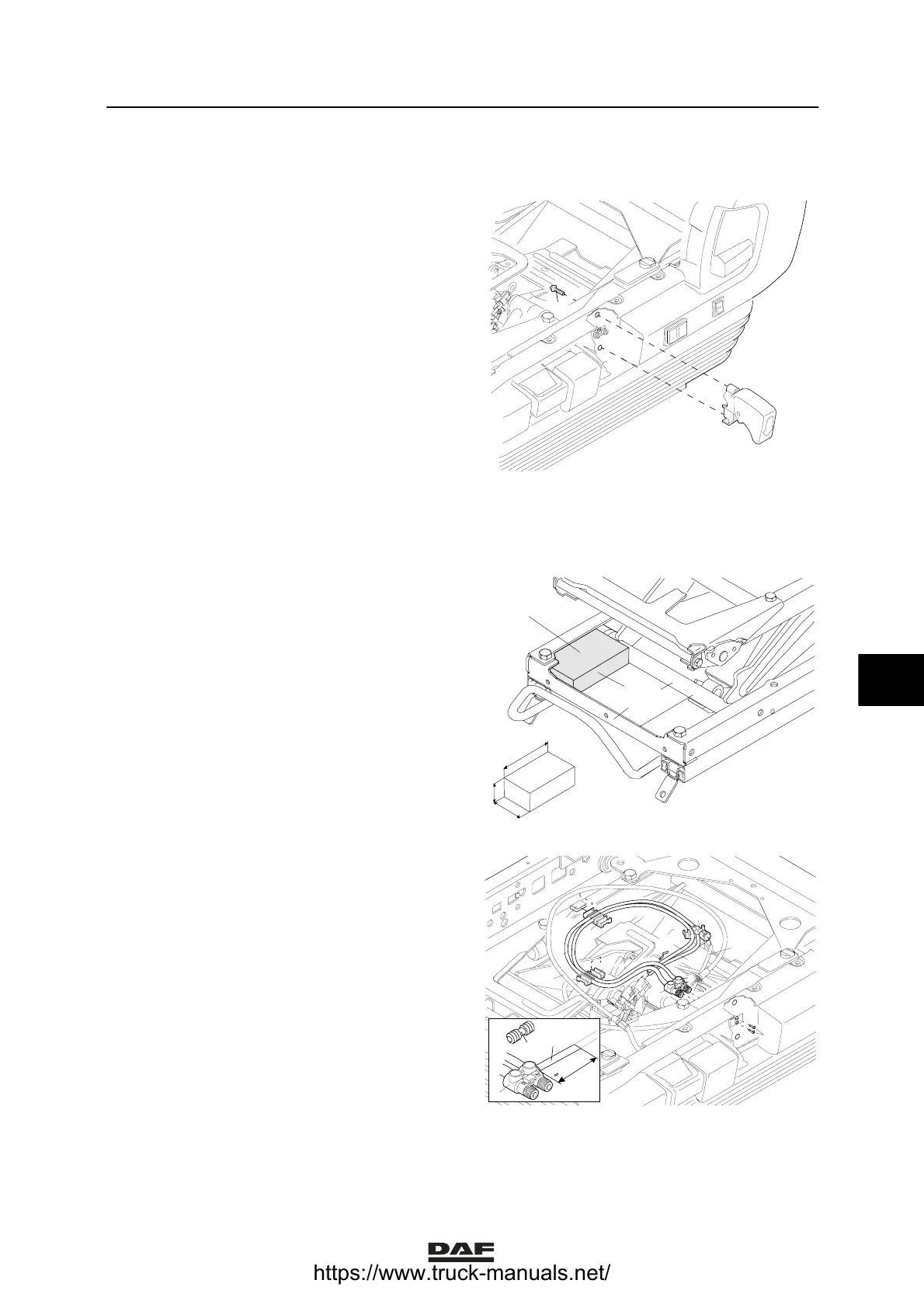

4.16 REMOVAL AND INSTALLAT ION, RAPID -LOWERING HANDLE
Removing rapid-lowering handle
1. Remove the seat squab.
2. Remove the attachment bolts (1) of the
rapid-lowering handle.
3. Remove the rapid-lowering handle from the
seat frame.
Installing rapid-lowering handle
1. Fit the rapid-lowering handle to the seat
frame using the attachment screws.
2. Fit the seat squab.
1
K1 01 390
4.17 REMOVAL AND INSTALLAT ION, MANIFOLD
Removing manifold
1. Remove the seat squab.
2. Lock the seat in its highest position using a
spacer block. The spacer block serves to
prevent the frame from lowering when work
is carried out on the air pipes. Since you
can easily make it yourself, it cannot be
ordered from DAF. The block is sized
65x40x25 mm (LxWxH).
3. Remove rapid-lowering handle.
A
40
25
65
2
3
1
A
K1 01 402
4. Remove the attachment bolts (1) of the
manifold (2).
5. Disconnect the manifold (2) from the seat
frame.
6. When replacing the manifold, cut loose the
transparent air supply pipe, approximately 3
cm from the manifold (3).
7. Remove the pipe guide (7) from the
attachment clamp (10). Remove the control
cable (5) from the pipe guide.
8. Disconnect the pipe guide (6).
30 mm
1
2
2
3
4
5
6
7
10
8
12
13
11
K1 01 391
7
ǹ 0210
