200423 5-11
Draining and filling
EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES
ΞΦ95 series
5
5.7 DRAINING AND FILLING THE GEARBOX
To prevent skin injury, avoid
unnecessary contact with the
drained oil.
Version: ZF 16S-151/181/221
Draining the gearbox
1. Position the vehicle on a level surface.
2. Drain the gearbox at operating temperature.
3. Remove the drain plugs (B), (C) and (D) and
the level check/filler plug (A) and drain the
oil.
Filling the gearbox
1. Clean the drain plugs (B), (C) and (D) and
tighten them to the specified torque, see
"Technical data".
2. Fill the oil through the level check/filler
opening (A) until the oil reaches the rim of the
filling opening.
3. Fit the level check/filler plug (A), tightening it
to the specified torque, see "Technical data".
}

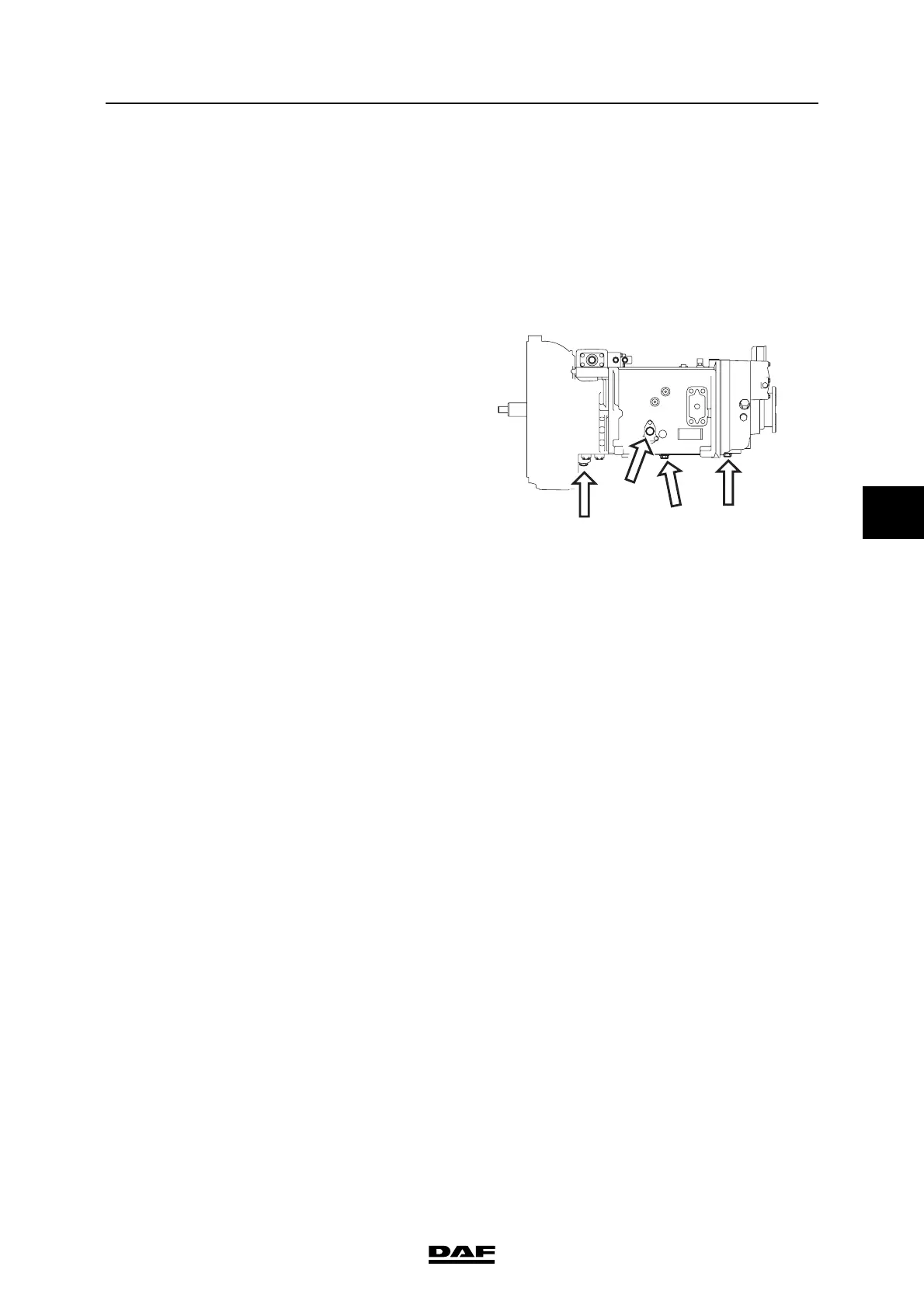

M3023
D
A
B
C
