Draining and filling
EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES
ΞΦ95 series
5
Version: ZF AS Tronic
Draining the gearbox
1. Position the vehicle on a level surface.
2. Drain the gearbox at operating temperature.
3. Remove the drain plugs (B and C) and the
level check/filler plug (A) and drain the oil.
Filling the gearbox
1. Clean the drain plugs (B) and (C) and tighten
them to the specified torque, see "Technical
data".
2. Fill the oil through the level check/filler
opening (A) until the oil reaches the rim of the
filling opening.
3. Fit the level check/filler plug (A), tightening it
to the specified torque, see "Technical data".
Version: ZF AS Tronic with integrated retarder
Draining the gearbox
1. Before draining take a short test drive. Do
not activate the retarder during the test
drive.
2. Position the vehicle on a level surface.
3. Drain the gearbox at operating temperature.
4. Remove the drain plugs (B and C) and the
level check/filler plug (A) and drain the oil.
5. Change the gearbox filter element, see
"Removal and installation".
Filling the gearbox
1. Clean the drain plugs and tighten them to the
specified torque, see "Technical data".
2. Fill the oil through the level check/filler
opening (A) until the oil reaches the rim of the
filling opening (A).
3. Fit the level check/filler plug (A), tightening it
to the specified torque, see "Technical data".
4. After filling take a short test drive. Do not
activate the retarder during the test drive.

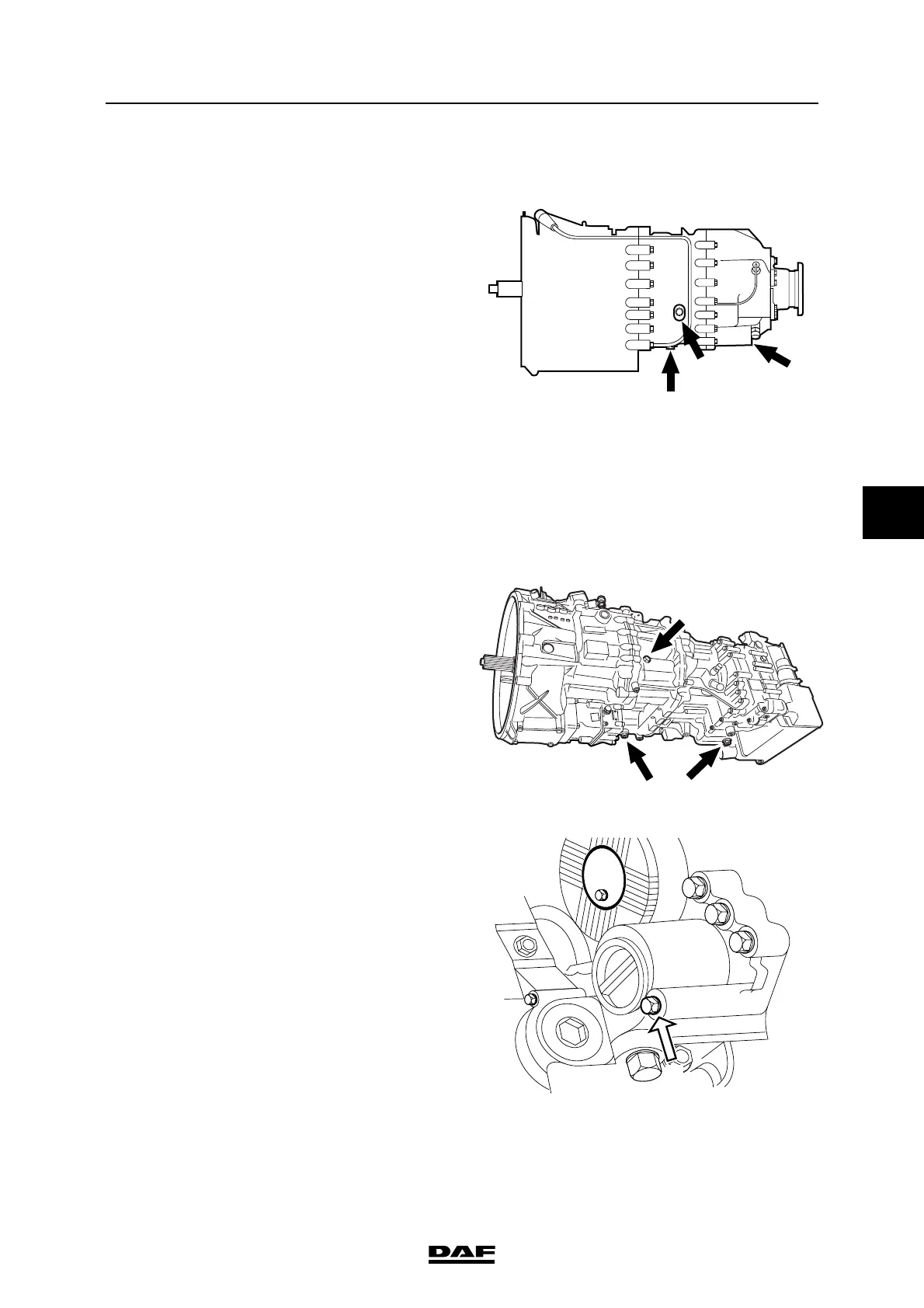

B
