Inspection and adjustment
EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES
ΞΦ95 series
5
3.39 INSPECTION AND ADJUSTMENT, CLUTCH WEAR INDICATOR

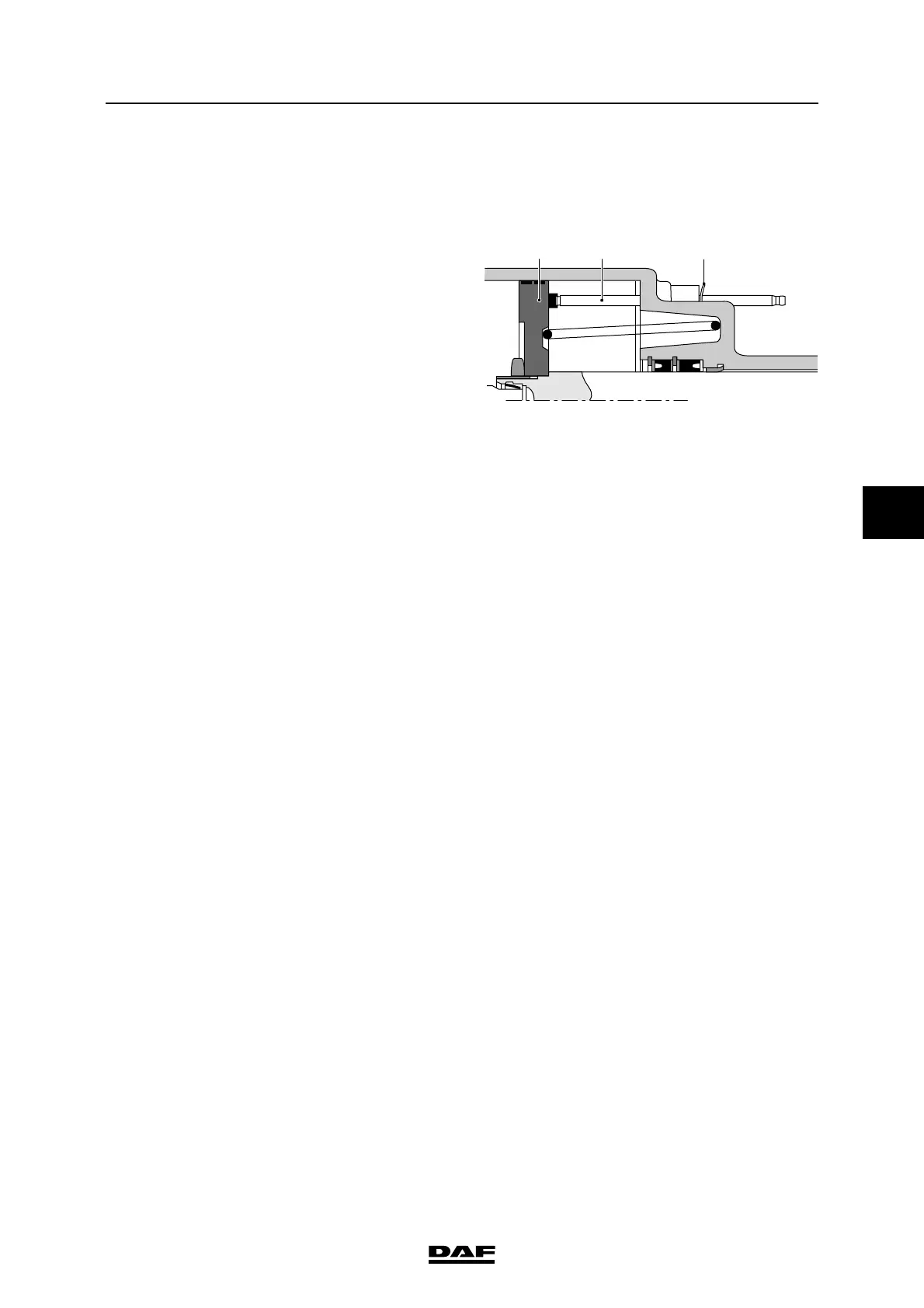

Checking the clutch wear indicator
1. Visually check that the lock nut (12) makes
contact with the housing. If the lock nut (12)
no longer makes contact with the housing,
the clutch plate is approximately 80% worn.
Note:
It is not permissible to remove the circlip, or
to move the circlip over the pin. This is to
prevent inaccurate indication.
Adjusting the clutch wear indicator
1. Press the circlip (12) against the clutch
servo.
Note:
It is not permissible to remove the circlip, or
to move the circlip over the pin. This is to
prevent inaccurate indication.
V300355
5 11
12
