Dahua Technology ANPR - Connecting Radar Power Cable

20
Table 5-1 Wiring camera and radar
Radar
Cable
Camera
Cable color
Port
Yellow
RXD
TXD
Green
TXD
RXD
Brown
GND
GND

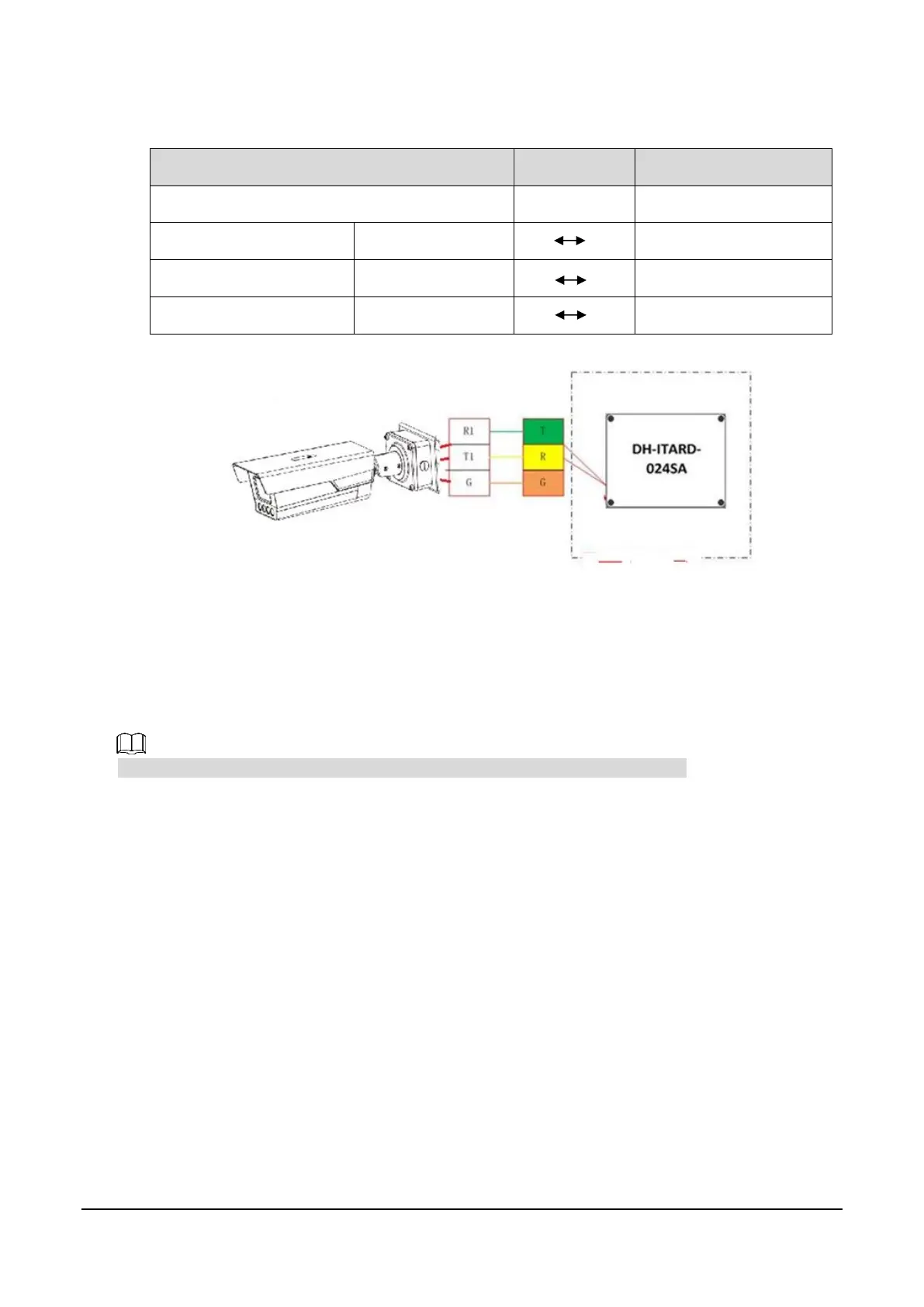

Wiring camera and radar Figure 5-2
Connecting Radar Power Cable 5.4
Radar is supplied with 12 V DC power, and its power adapter should be placed in wall-mounted or
floor-standing cabinet. Use RVVP cable to be the extension cable. Shielded layers at the two ends of
RVVP cable shall be grounded.
Make sure that all electrical devices are properly grounded during construction.
