5 Wiring
Wiring Diagram 5.1

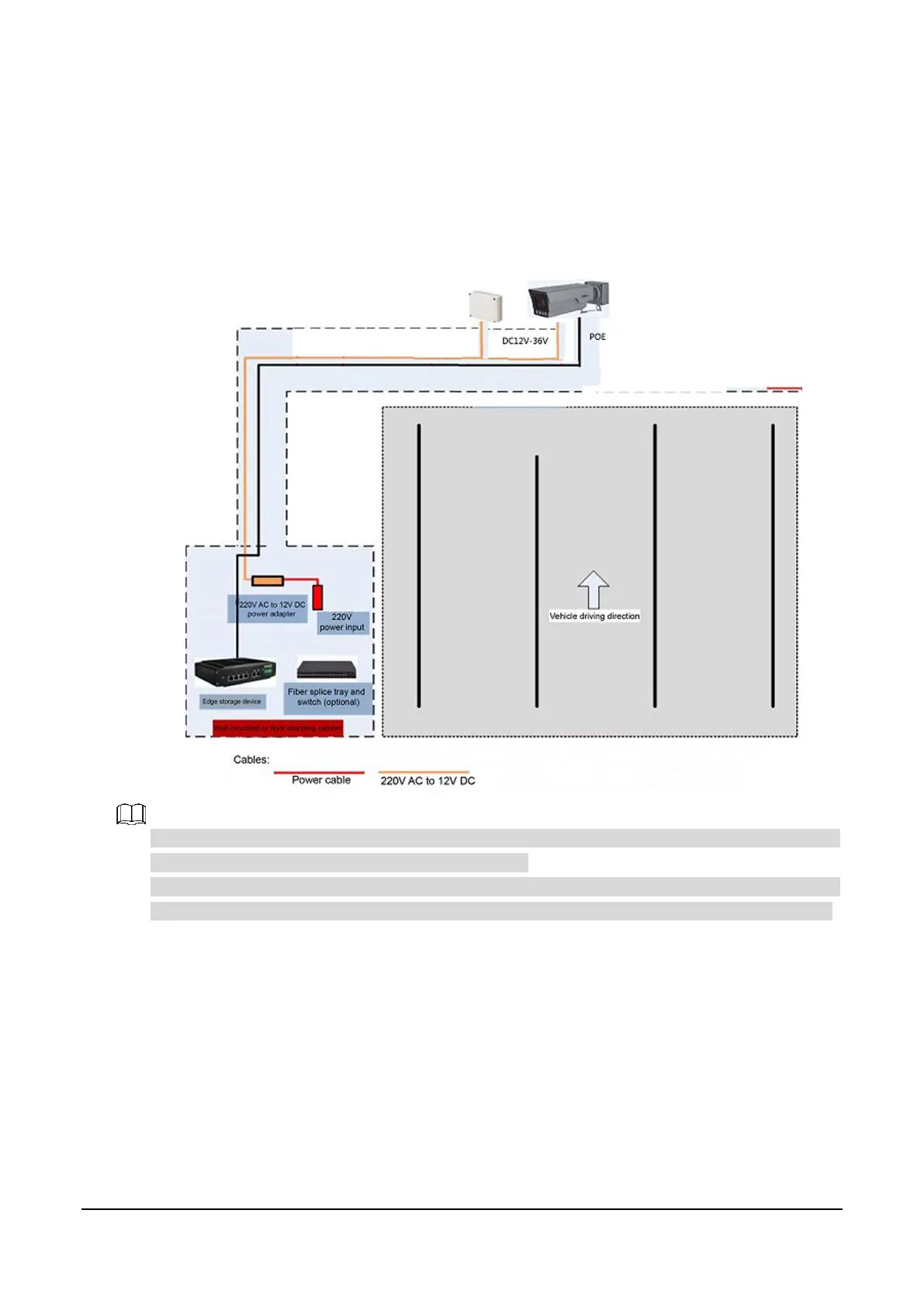

Wiring diagram Figure 5-1
 Radar signal cable is only 1.5 meters. In scenario with multiple lanes, pay attention to use
extension cord to connect the radar and the camera.
 Radar should be powered separately, and its power adapter should be placed in wall-mounted
or floor-standing cabinet. Make sure to use extension cord to connect the cabinet and the pole.
Connecting Camera Power Cable 5.2
The camera is powered by 12-36 V DC converter, or PoE.
RVV3 × 1.5² cm cable is used for supplying 220 V power.
Wiring Radar 5.3
