18

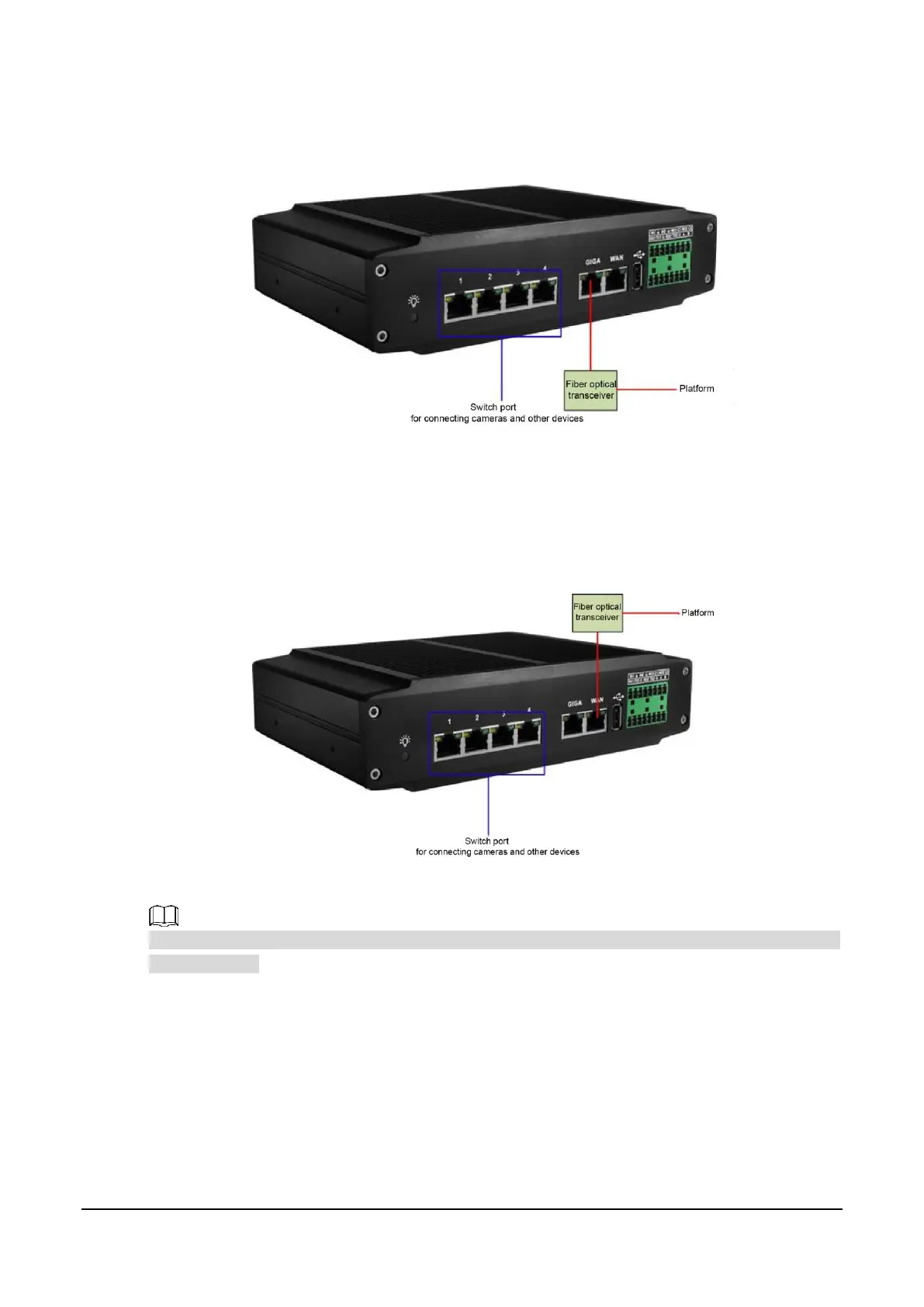

Connect the platform to GIGA port through network cable, and connect cameras to switch ports.
See Figure 4-7.
Single segment networking method Figure 4-7
Dual Segment Networking Method
In this method, the camera and the platform are configured in different network segments. The
default Ethernet card IP address is 192.168.1.108. See Figure 4-8.
Dual segment networking method Figure 4-8
Platform in this method cannot access cameras and other devices directly, but through the edge
storage device.
