User’s Manual
36
No.
Port Name
Function
14 RS-232 debug COM
The port is used for general COM debug to configure IP address or
transfer transparent COM data.
15 USB port
Connects to the external devices such as keyboard, mouse, and USB
storage device.
16 eSATA port
External SATA port which connects to the device with SATA port.
Perform the jumper configuration when connecting HDD.
3.2.9 DH-XVR5808S-X

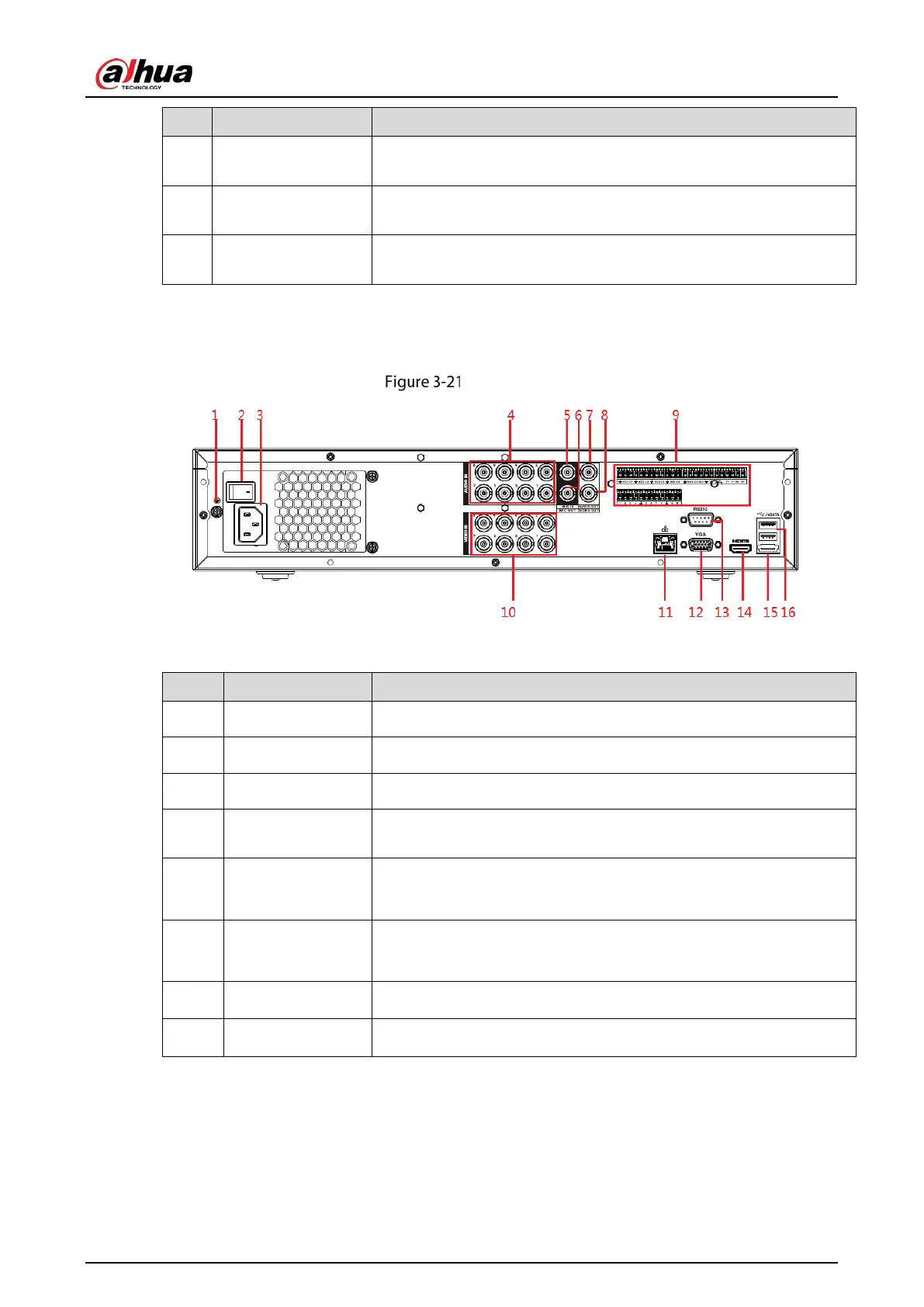

Rear panel
Table 3-18 Rear panel description
No.
Port Name
Function
1 GND Ground.
2 Power button Turns on/off the Device.
3 Power input port Inputs power.
4
Audio input port
Receives the analog audio signal output from the devices such as
microphone.
5
Audio input port
(MIC IN)
Tow-way talk input port which receives
the analog audio signal
output from the devices such as microphone, pickup.
6
Audio output port
(MIC OUT)
Tow-way talk output port which outputs the analog audio signal to
the devices such as the sound box.
7
Audio output port
Outputs the analog audio signal to the devices such as the sound box.
8
Video output port
Connect to video output devices such as TV.
