User’s Manual
346

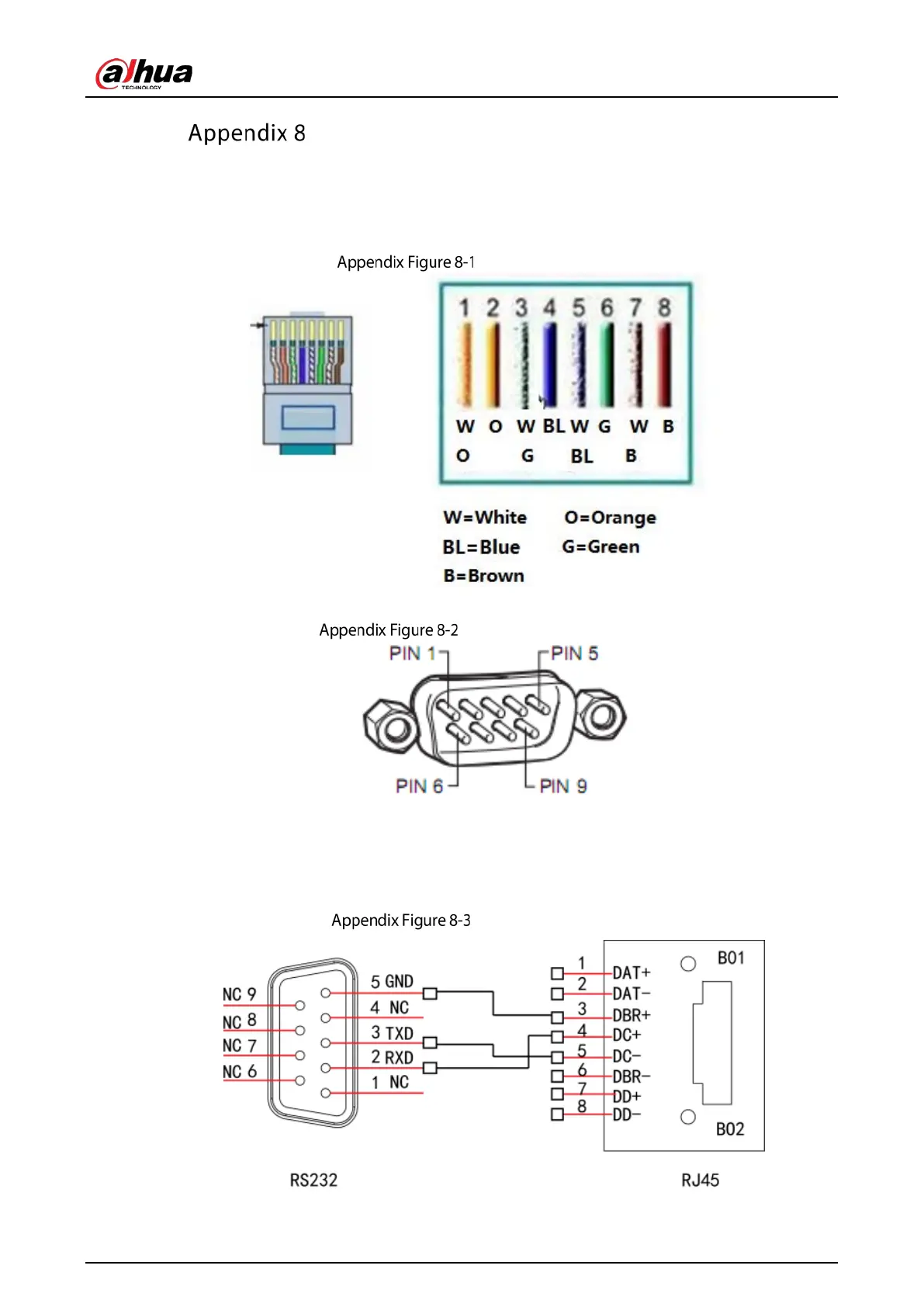

RJ45-RS-232 Connection Cable Definition
Here we are going to make standard RS-232 port and standard RJ-45 (T568B).
Please refer to the following figure for RJ-45 cable definition.
RJ-45 definition
Please refer to the following figure for RS-232 pin definition.
RS-232 pin definition
Cross Connection
Please refer to the following figure for connection information.
Cross connection
