RJ45-RS232 Connection Cable Definition
Here we are going to make standard RS-232 port and standard RJ-45 (T568B).

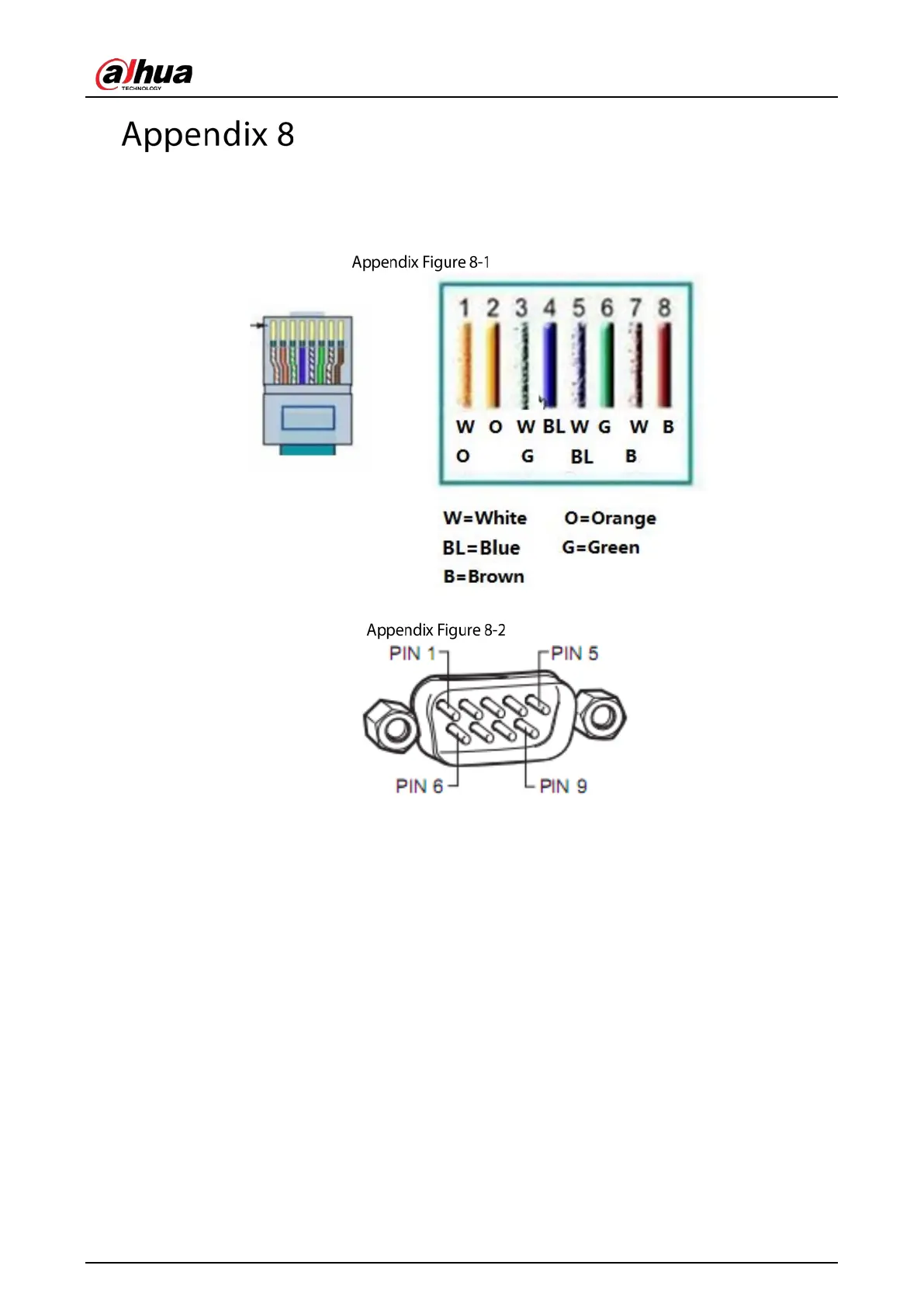

Please refer to the following figure for RJ-45 cable definition.
RJ-45 cable
Please refer to the following figure for RS-232 pin definition.
RS-232
Cross Connection
Please refer to the following figure for connection information.
