2 Connection and Installation
Cable Connections
The cable connection of model X and model Y is the same. Here takes model X as an example.
The access controller needs to be connected to devices like sirens, readers, and door contacts.

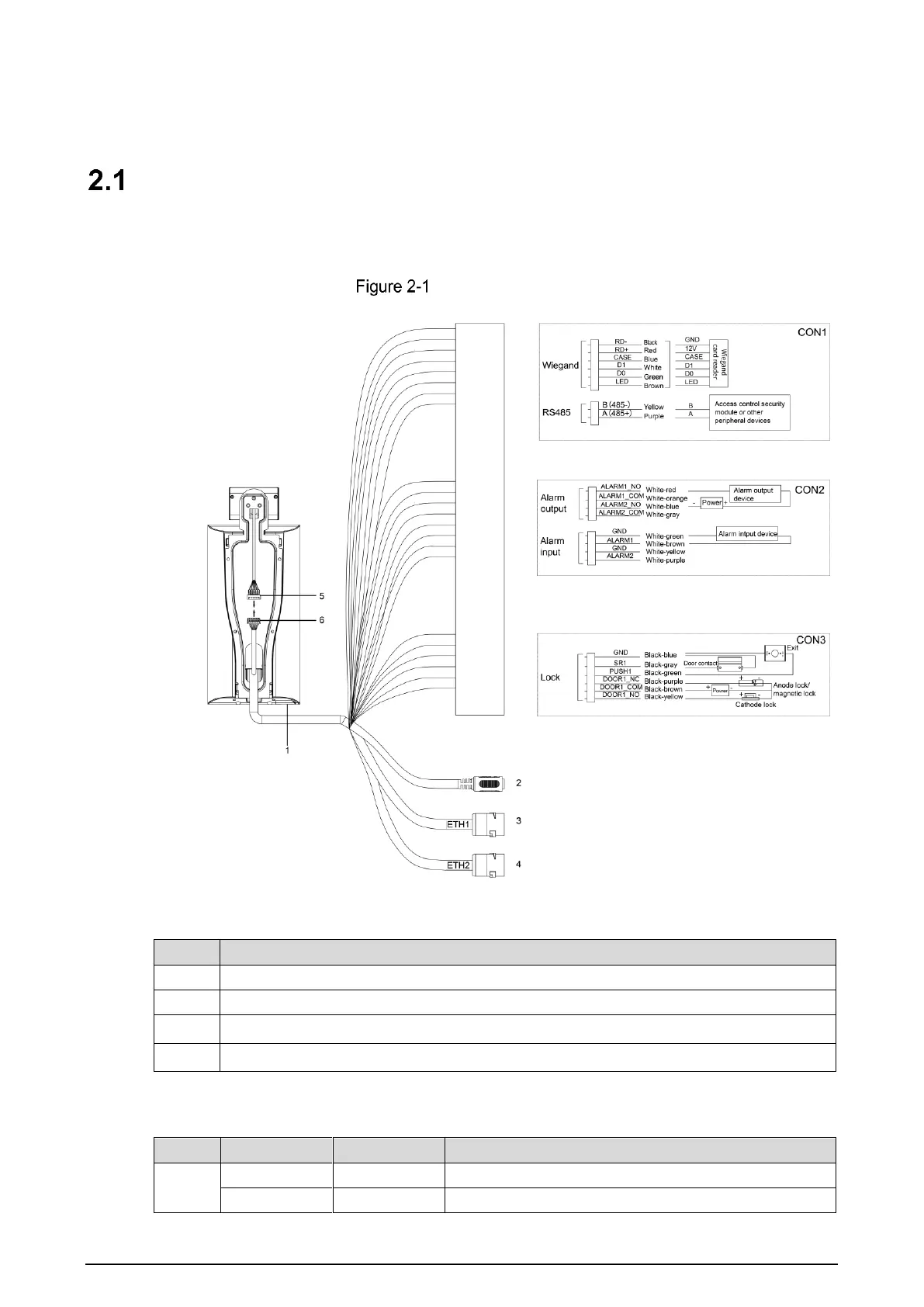

Cable connections
Table 2-1 Component description
No.
Name
1
USB port
2
Power port
3
Ethernet port
4
Ethernet port (only supported by 7-inch model B access controllers)
For detail function of each port, see the table below.
Table 2-2 Port description
Port
Cable Color
Cable Name
Description
CON1
Black
RD–
Negative electrode of external card reader.
Red
RD+
Positive electrode of external card reader.
