Dahua HDCVI User Manual

227

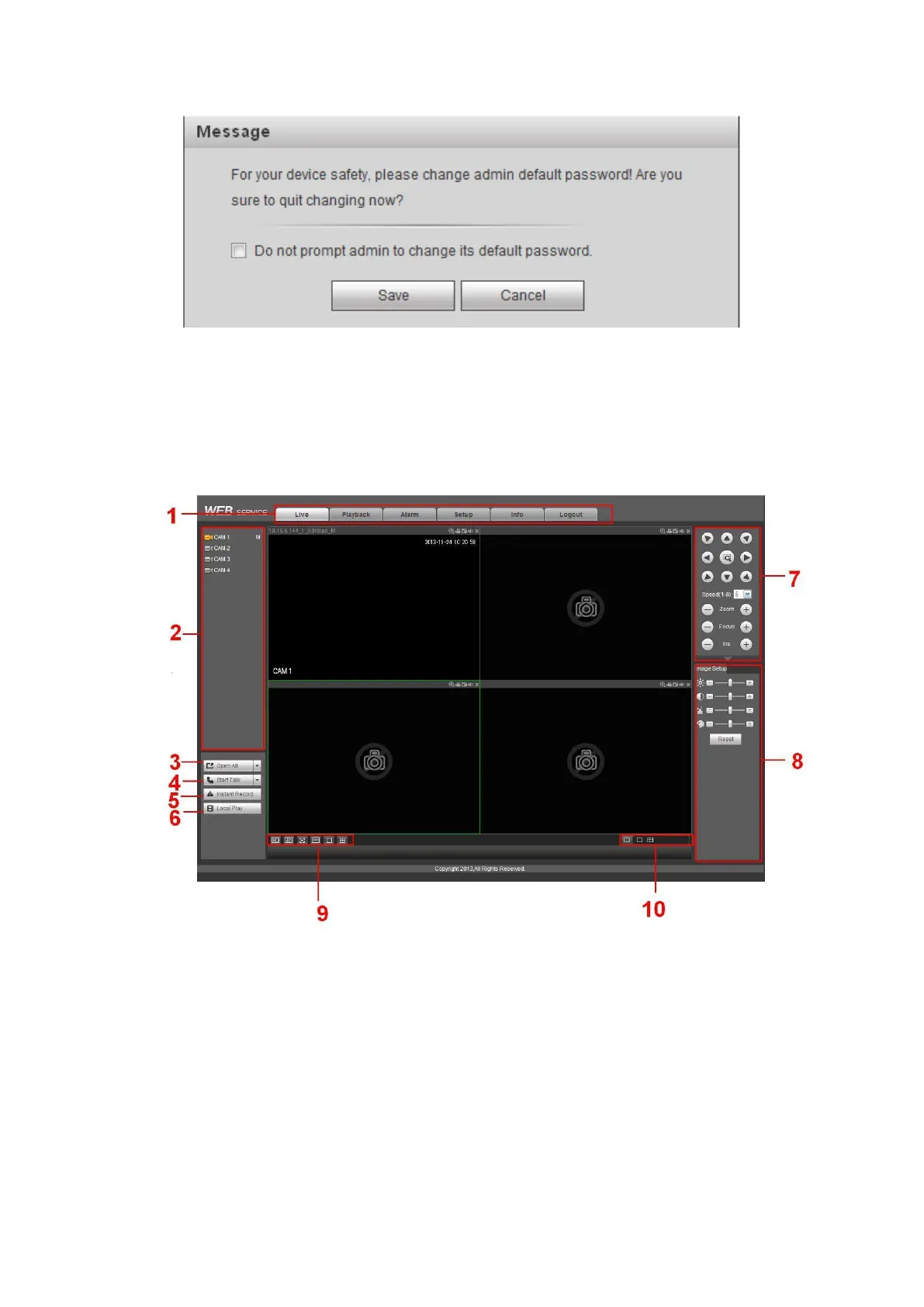

Figure 5-4
5.3 LAN Mode
For the LAN mode, after you logged in, you can see the main window. See Figure 5-5.
Figure 5-5
This main window can be divided into the following sections.
 Section 1: there are five function buttons: Live（chapter 5.4）, setup (chapter 5.8),
search (chapter 5.10), alarm (chapter 5.11), face search (chapter 5.11)and logout
(chapter 5.13).
 Section 2: There are channel number and one button: Start all. Start all button is to
enable/disable all-channel real-time monitor. Click it the button becomes yellow. See
Figure 5-6.

Dahua HDCVI Specifications

General

Hard Drive Support	SATA
Operating Temperature	-10°C to +55°C
Recording Resolution	1080P
Max HDD Capacity	Up to 10TB
Network Interface	RJ45
Video Output	HDMI
Compression	H.264
