Dahua HDCVI User Manual

31
2.1.2 HCVR42XXA-S2/ HCVR42XXAN-S2/ HCVR52XXA-S2/
HCVR5216AN-S2/HCVR720XA-S2/HCVR42XXA-S3/HCVR4216AN-S
3/HCVR52XXA-S3/HCVR5216AN-S3/HCVR72XXA-S3/HCVR7216AN
-S3 Series

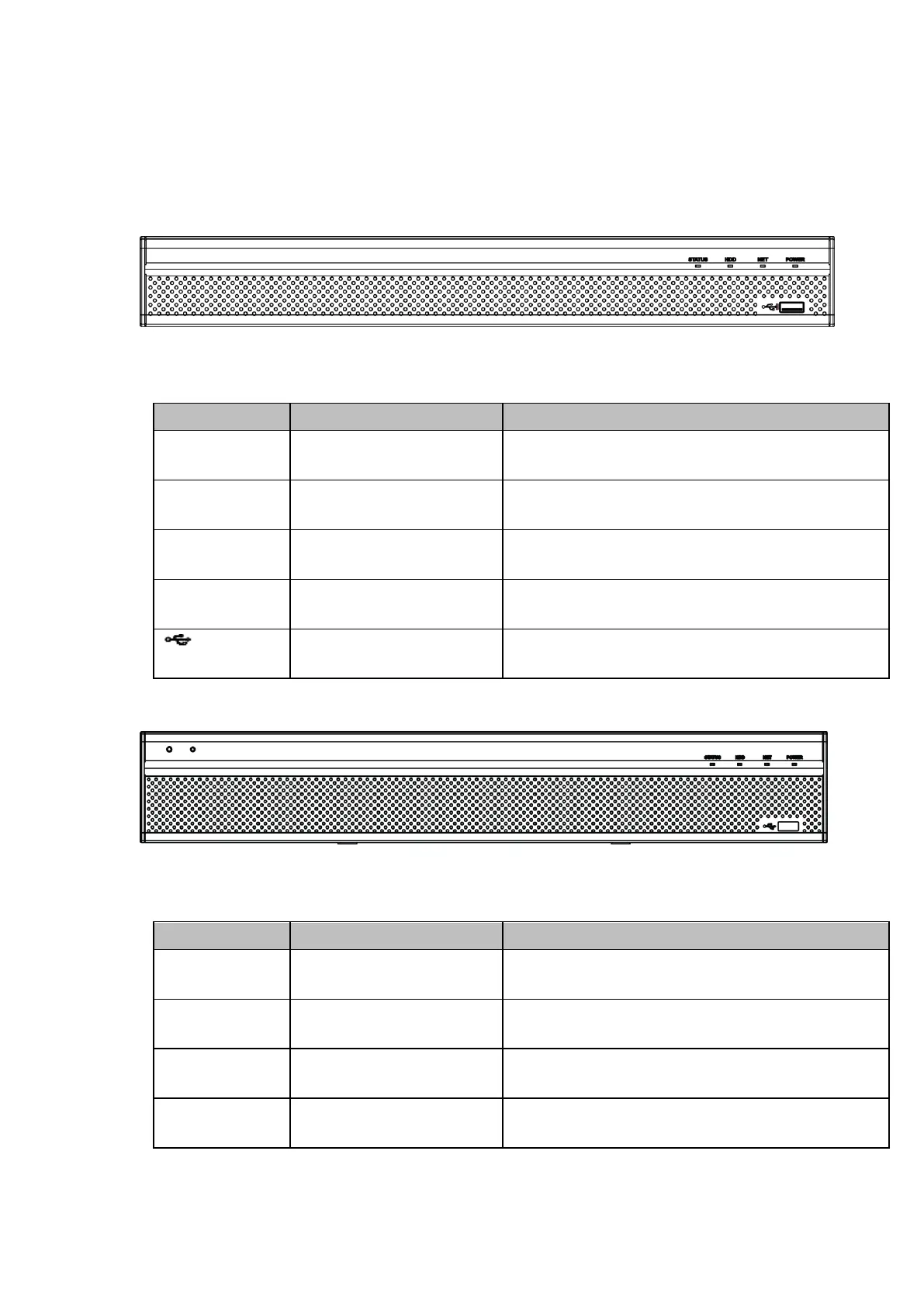

The front panel is shown as below. See Figure 2-2.
Figure 2-2
Please refer to the following sheet for front panel button information.
Icon
Name
Function
STATUS
Status indicator light
The blue light is on when the device is working
properly.
HDD
HDD status indicator
light
The blue light is on when the HDD is malfunction.
NET
Network status indicator
light
The blue light is on when the network connection is
abnormal.
POWER
Power status indicator light
The blue light is on when the power connection is
OK.
USB2.0 port
Connect to peripheral USB 2.0 storage device,
mouse, burner and etc.
2.1.3 HCVR42XXL -S2/HCVR44XXL-S2 Series
The front panel is shown as below. See Figure 2-3.
Figure 2-3
Please refer to the following sheet for front panel button information.
Icon
Name
Function
STATUS
Status indicator light
The blue light is on when the device is working
properly.
HDD
HDD status indicator
light
The blue light is on when the HDD is malfunction.
NET
Network status indicator
light
The blue light is on when the network connection is
abnormal.
POWER
Power status indicator light
The blue light is on when the power connection is
OK.

Dahua HDCVI Specifications

General

Hard Drive Support	SATA
Operating Temperature	-10°C to +55°C
Recording Resolution	1080P
Max HDD Capacity	Up to 10TB
Network Interface	RJ45
Video Output	HDMI
Compression	H.264
