Dahua HDCVI - HCVR42 XXL-S2 Series

61
Figure 2-32
2.3.8 HCVR42XXL-S2 Series

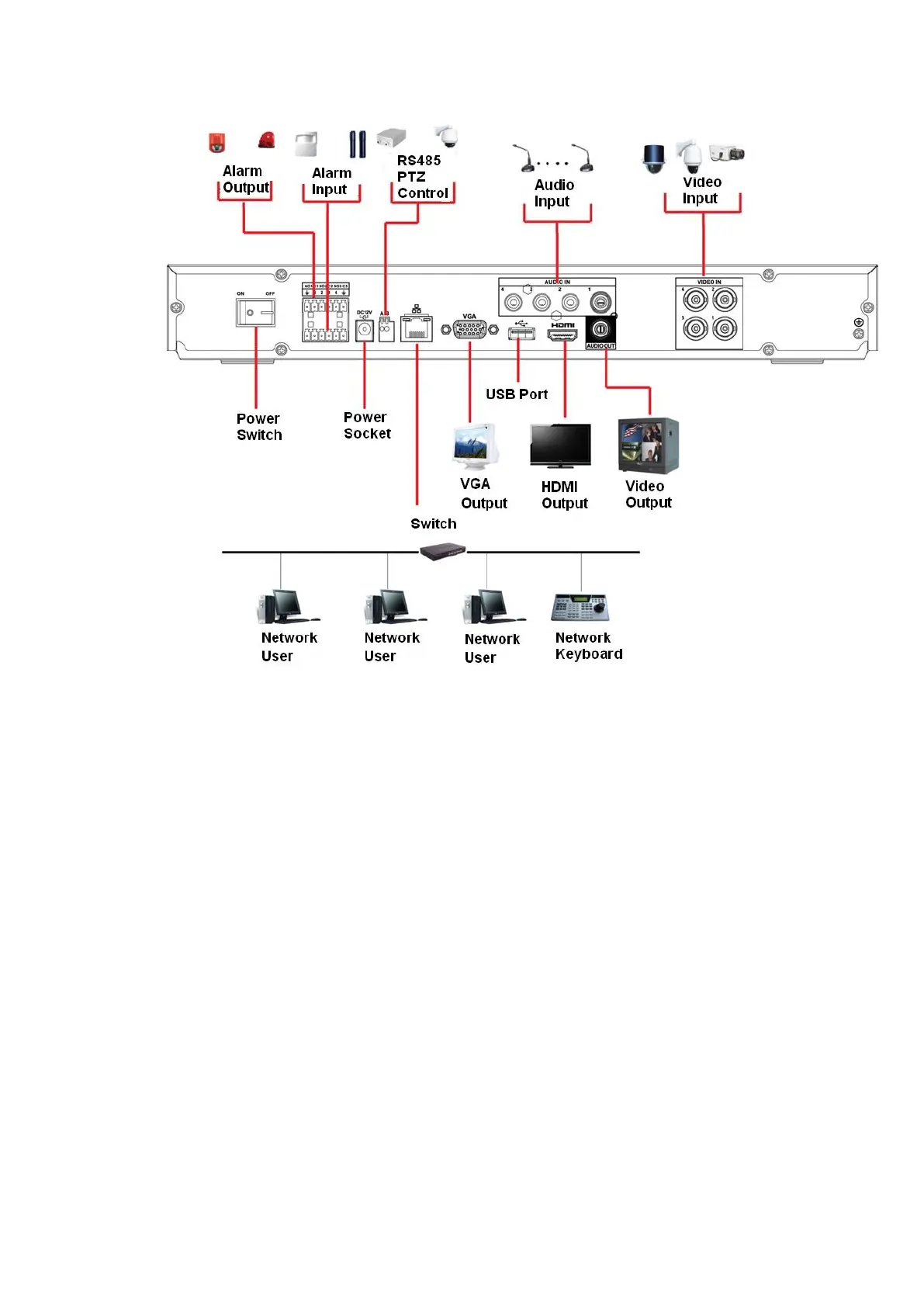

The connection sample is shown as below. See Figure 2-33.
The following interface is based on the HCVR4232L-S2 series product.
