Dahua HDCVI User Manual

70
○
,4 Connect the other end
of the HDD cable to the
mainboard.
○
,5 Connect the power
cable to the HDD.
○
,6 Put the cover back and fix the
screws to secure firmly.
3.3.3 The 2U Series
The 2U series includes HCVR58XXS-V2/HCVR48XXS-V2.
This series DVR max supports 8 SATA HDDs. Please use HDD of 7200rpm or higher.

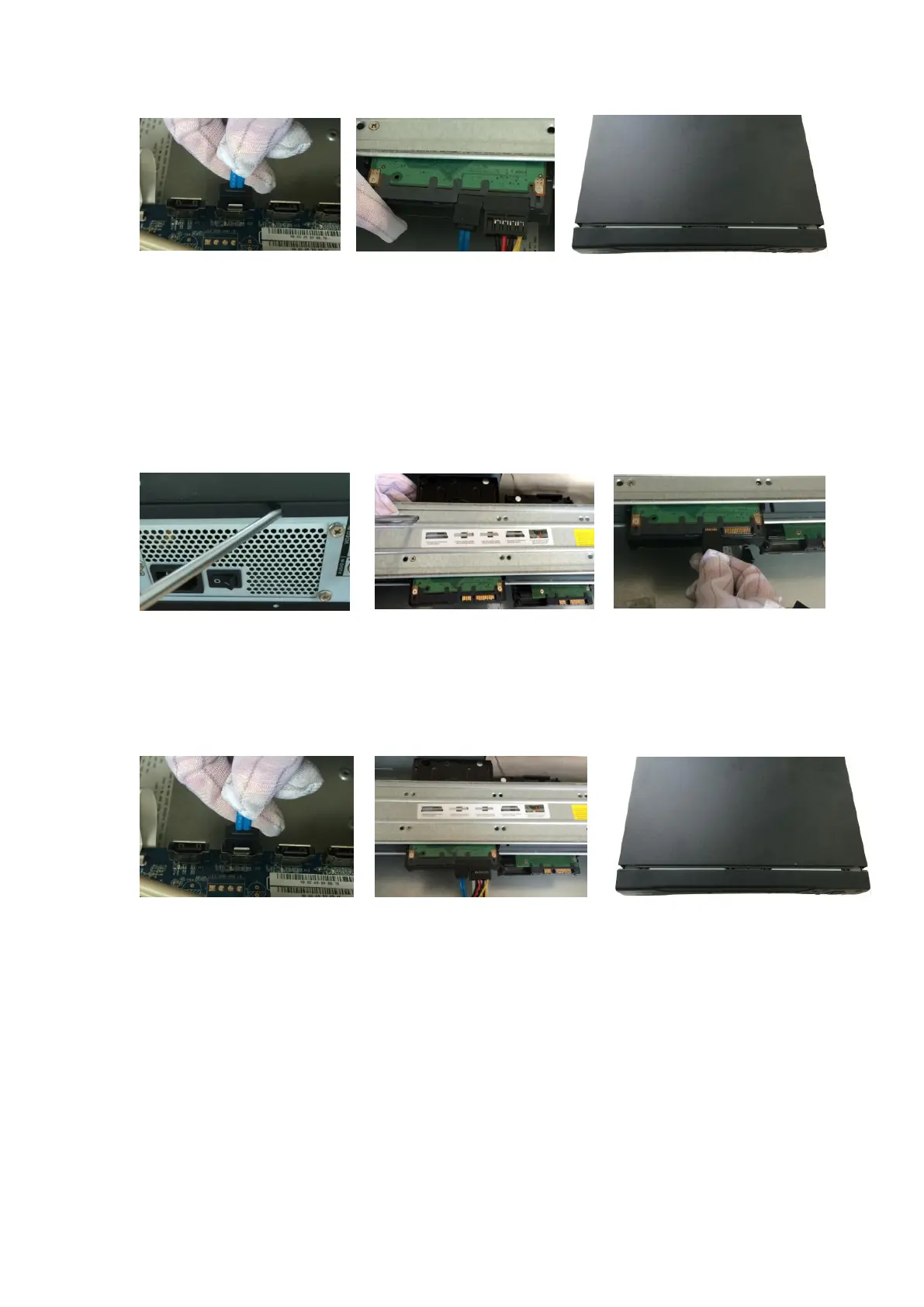

① Loosen the screws of the
upper cover and side panel.
Remove the cover.
② Fix the HDD(s) on the
bracket. Remove the top
bracket if you want to install
HDD to the bottom bracket.
③Connect the one end of the HDD
cable to the HDD.
④ Connect the other end of the
HDD cable to the mainboard.
⑤Connect the power cable to the
HDD.
⑥Put the cover back and fix the
screws to secure firmly.
Important:
If the HDD amount is less than four, you do not need to install the HDD bracket.
When there is a bracket, please make sure the installation direction of HDDs is the same.
3.3.4 Rack Installation
The DVR occupies 1.5U/2U rack units of vertical rack space.
 Use twelve screws to fix the unit
 Please make sure the indoor temperature is below 35℃ (95°f).

Dahua HDCVI Specifications

General

Hard Drive Support	SATA
Operating Temperature	-10°C to +55°C
Recording Resolution	1080P
Max HDD Capacity	Up to 10TB
Network Interface	RJ45
Video Output	HDMI
Compression	H.264
