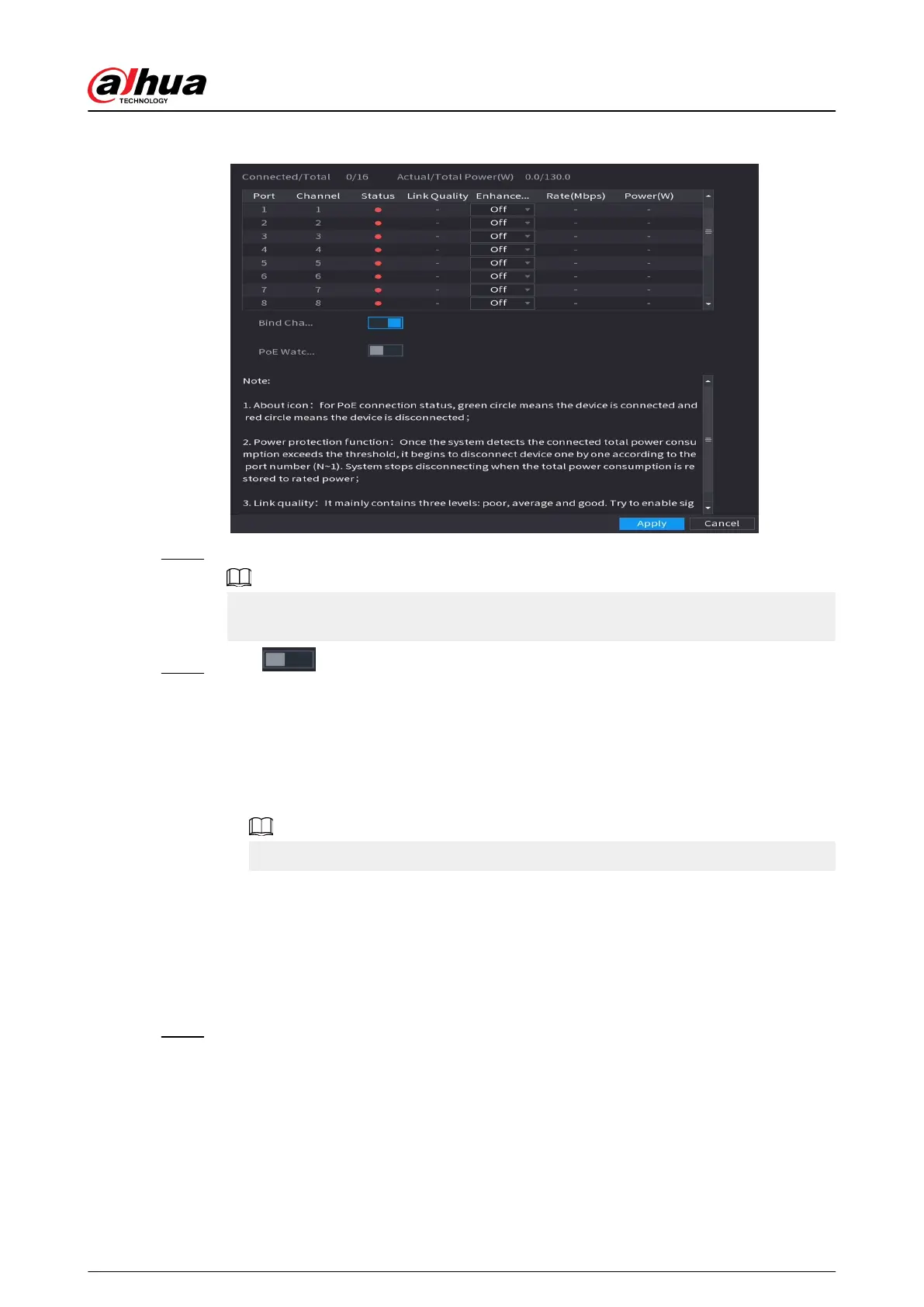

Figure 5-76 PoE
Step 2 (Optional) Set Enhancement Mode to On or O.
When enhancement mode is enabled, the transmission distance of the PoE port will be
extended.
Step 3 Click to turn on Bind Channels and PoE Watchdog as need
●
Bind Channels : Turn on this function, the camera connected to the PoE port is bound
to the channel corresponding to the PoE port. For example, if PoE 1 corresponds to the
channel 1, the camera connected to PoE 1 will be added to the channel 1 instead of
channel 2.
●
PoE Watchdog : When the PoE watchdog is successfully triggered, the PoE camera will
be reset.
In the bridge mode, PoE Watchdog cannot be turned on.
5.7.9 Updating Remote Devices
You can update the rmware of the connected network camera through online update or le
update.
Procedure
Step 1 Select Main Menu > CAMERA > Camera List > Update.
User's Manual
197
