Table 2-9 Icons
No. Port Name Function
1 USB port
Connects to the external devices such as keyboard,
mouse, and USB storage device.
2 IR indicator Receives signals from the remote control.
2.1.11 NVR42-I/NVR44-I/NVR54-I/NVR54-I/L/NVR52-I/
NVR52-I/L Series
The section uses NVR4208-8P-I/NVR4216-I/NVR4216-16P-I/NVR4416-16P-I/NVR4432-I/
NVR5432-16P-I/NVR5432-16P-I/L/ NVR5216-16P-I/NVR5216-16P-I/L/NVR5216-8P-I/NVR5216-8P-I/L
series as examples.
The gure is for reference only.

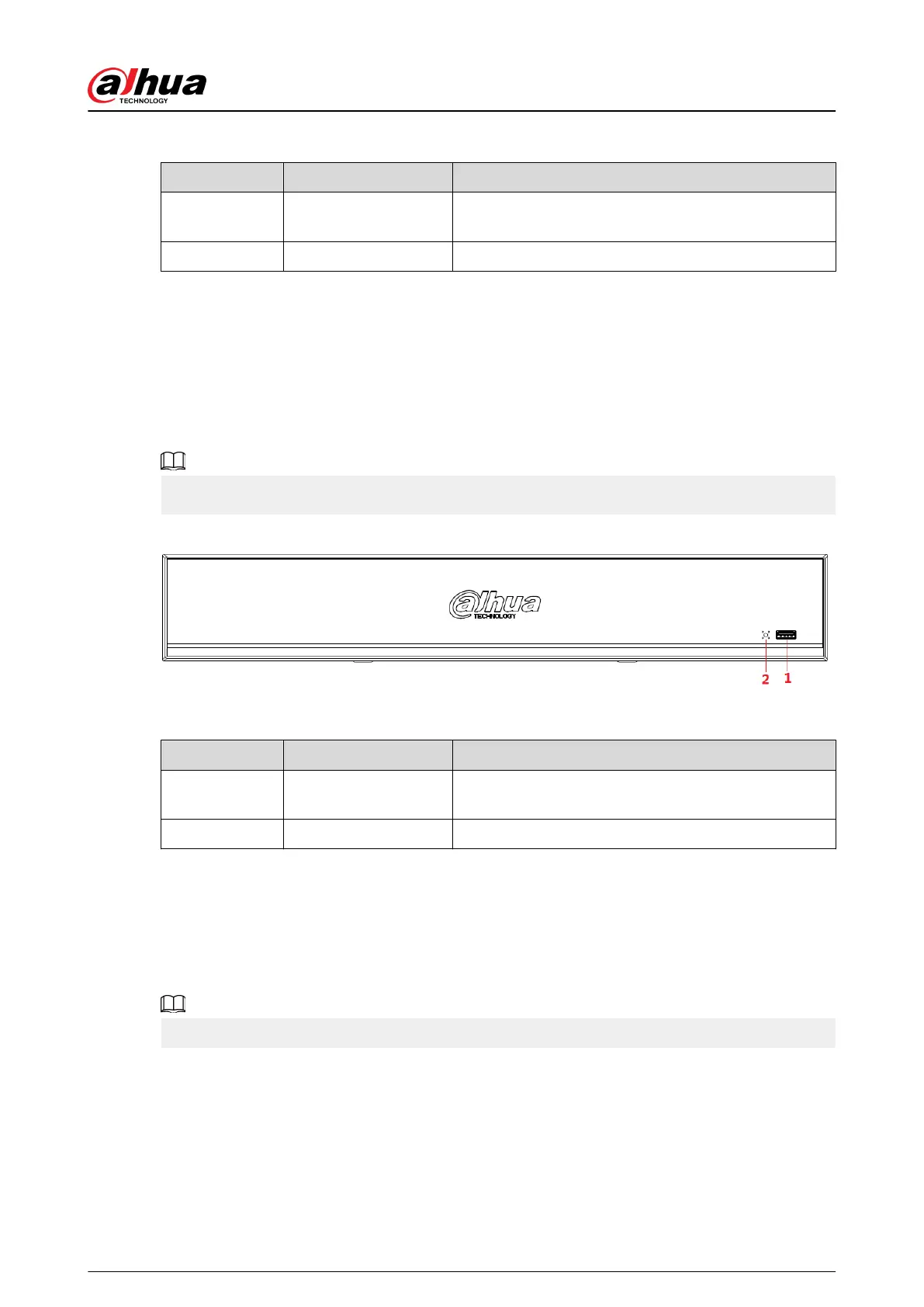

Figure 2-23 Front panel
Table 2-10 Icons
No.
Port Name Function
1 USB port
Connects to the external devices such as keyboard,
mouse, and USB storage device.
2 IR indicator Receives signals from the remote control.
2.1.12 NVR48-4KS2/I/NVR48-16P-4KS2/I/NVR54-EI/
NVR54-16P-EI/NVR58-EI/NVR58-16P-EI/NVR48-EI/
NVR48-16P-EI
The gures are for reference only.
The NVR48-4KS2/I/NVR48-16P-4KS2/I series front panel is shown as below.
