Icon Name Function
Network port
10/100 Mbps self-adaptive Ethernet port.
Connect to the network cable.
HDMI High Denition Media Page
High denition audio and video signal output
port. It transmits uncompressed high
denition video and multiple-channel data to
the HDMI port of the display device. HDMI
version is 1.4.
VGA VGA video output port
VGA video output port. Output analog video
signal. It can connect to the monitor to view
analog video.
Power input port Input 12 VDC/2 A.
MIC IN Audio input port
Bidirectional talk input port. It is to receive the
analog audio signal output from the devices
such as microphone, pickup.
MIC OUT Audio output port
Audio output port. It is to output the analog
audio signal to the devices such as the sound
box.
●
Bidirectional talk output.
●
Audio output on 1-window video monitor.
●
Audio output on 1-window video playback.
GND
Ground end.
2.2.32 NVR54-EI/NVR54-16P-EI/NVR58-EI/NVR58-16P-EI/
NVR54-XI/NVR-58-XI Series

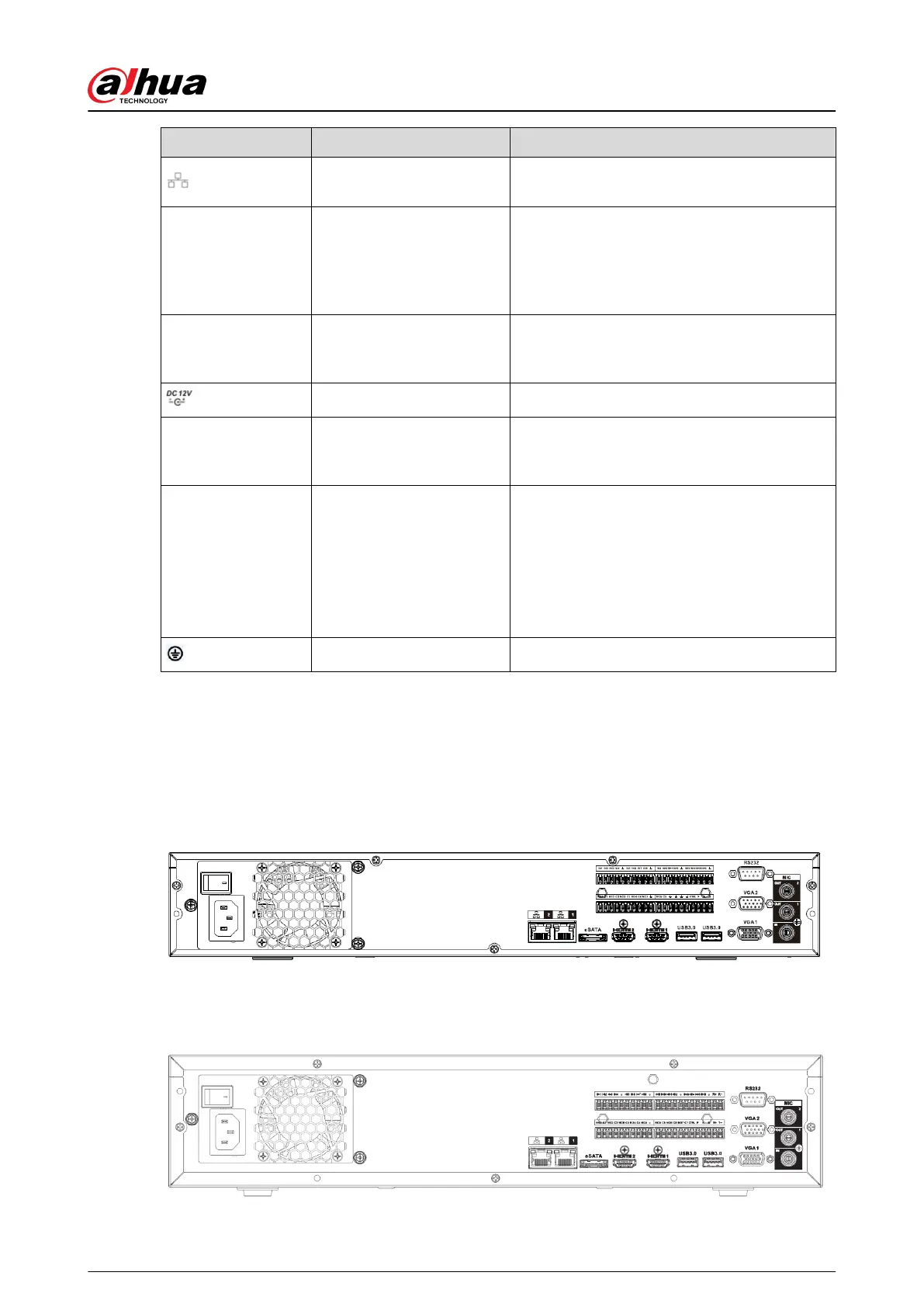

The NVR54-EI series rear panel is shown as below.
Figure 2-108 Rear panel
The NVR58-EI series rear panel is shown as below.
Figure 2-109 Rear panel
User's Manual
75
