Dahua NVR5416-EI User Manual

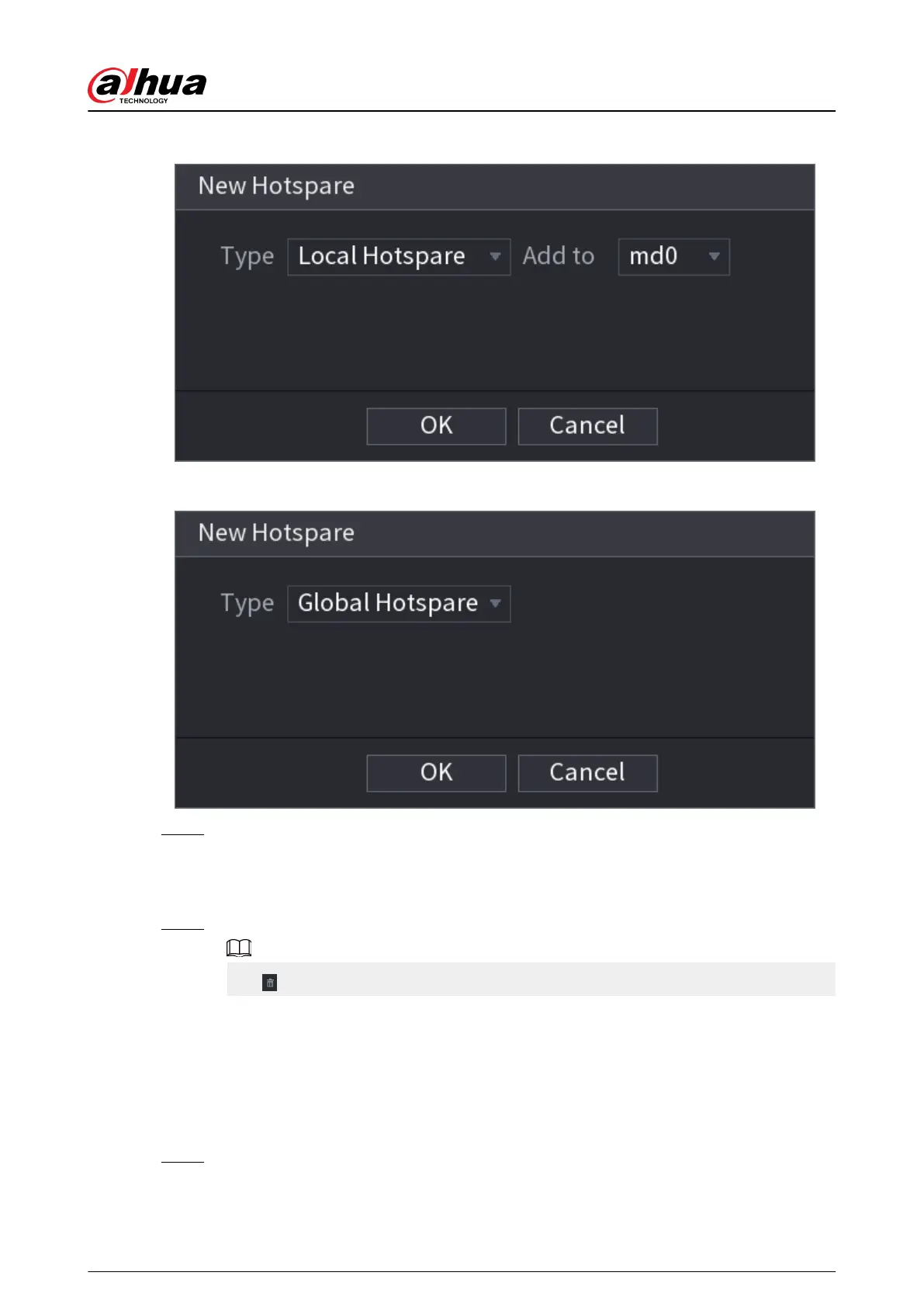

Figure 5-245 Local hotspare
Figure 5-246 Global hotspare
Step 3 You can select Local Hotspare or Global Hotspare.
●
Local Hotspare : Select the target disk, and the current disk will serve as the hot spare
disk for the selected target disk.
●
Global Hotspare : The current disk will serve as the hot spare disk of the entire RAID.
Step 4 Click OK.
Click to delete a hot spare disk.
5.12.4 Disk Group
By default, the installed HDD and created RAID are in Disk Group 1. You can set HDD group, and
HDD group setup for main stream, sub stream and snapshot operation.
Procedure
Step 1 Select Main Menu > STORAGE > Disk Group.
User's Manual
370

Dahua NVR5416-EI Specifications

General

Model	NVR5416-EI
Operating System	Embedded Linux
IP Camera Input	16
Interface	HDMI, VGA
VGA Resolution	1920 × 1080
Multi-screen Display	Yes
Video Compression	H.265, H.264, MJPEG
Audio Compression	G.711, G.726
Network Protocol	HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, NTP, UPnP, SMTP
Mobile Phone Access	Yes
Interoperability	ONVIF, CGI
Browser	Chrome
Record Mode	Manual, Schedule, Motion, Alarm
Backup Method	USB, Network
Playback	Yes
Ethernet	1 RJ-45 port (10/100/1000 Mbps)
USB	2x USB 2.0
RS485	1 port, for PTZ control
Power Supply	100-240V AC, 50/60Hz
Operating Conditions	-10 °C to +55 °C
Video Output	HDMI, VGA
Network Interface	1 RJ-45 port (10/100/1000 Mbps)
Operating Temperature	-10 °C to +55 °C
Operating Humidity	10% to 90%
HDMI Resolution	4K (3840x2160)
